Installing split air-conditioning units with the MFR 10x60 FB

Published: 2021-04-22 | Updated: 2021-06-15

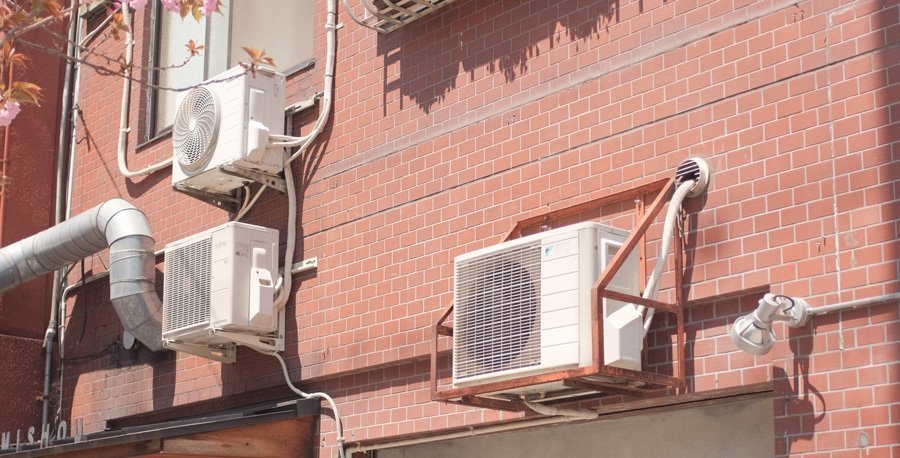

Outside air-conditioning installtions

As the summer approaches, it is time to start thinking about installing a new air conditioning system to save yourself from the summer heat! While the main focus is on deciding the type of air conditioning unit that you want to install, once you have made this decision it is equally important that the correct fixings are chosen to install the unit for a safe and secure installation.

Introducing Multifunction frame plug MFR

The MFR is the recommended ETA approved multifunction frame plug for mounting façade substructures as well as wood and metal parts, in all common base materials. After inserting into a pre-drilled hole the MFR gets its strong and reliable hold from the expansion plug that has a long expansion area and an early expansion that occurs as the screw is tightened.

Multifunction frame plug MFR

The MFR 10x60 and split air-conditioning units

Installation of your split air-conditioning units should be done accurately to provide the optimal cooling solution, and a secure fixing is part of this process. For installation we recommend using the MFR 10x60 FB, which comes with a collar in the plug and hex head screw. It is the collar that comes highly recommended for this type of installation as it acts as a barrier between 2 metal parts, the support of the air-conditioning unit and the screwhead, which prevents contact corrosion.

Recommended for installation of the outside unit, the MFR 10x60 FB is ETA approved for concrete and masonry, which guarantees a reliable and safe installation.  It also has a fire approved rating for ventilated façade applications. Our high quality nylon plug, made in Germany, has weather and UV resistant properties, making it ideal for the outdoors, and can withstand temperatures between -40c to +80c.

When installing the inside split air-conditioning unit, it is essential that it is installed as safely as possible, so not to fall and injure someone. For this we recommend using the MFR or alternatively you can use our universal expansion nylon plug like our FX plug with a common wood screw, which work perfectly for air-conditioning installations.

Multifunction frame plug installation
ETA approval
Fire resistance approval F90
Approved for concrete
Approved for masonry blocks
Made from Best Quality Nylon
Made from A4 Stainless Steel

Installation with the MFR 10x60 FB

Compared to other MFR fixings the MFR 10x60 FB makes installation quick and easy for installing air-conditioning units. The drill hole depth needed for the MFR 10x60 FB is only 60mm which is the smallest in the range allowing you to save time when drilling the holes.

The MFR FB also allows you to attach the support with one less step as you do not need to put the plug in the wall before presenting the support: drill hole, mount the support, push in the plug and screw. It is that easy!

Installation process for multifunction frame plug MFR

CELO is proud to recommend the MFR for use with major air conditioning units and brands such as :

  • Mitsubishi - BT35VGK
  • Daikin - TXP35M
  • LG Comfort - 12R32
  • Fujitsu - A0YG45LBT8
  • Panasonic - KITFZ50WKE

Mitubishi airconditioner unit
Daikin air conditioner unit

The MFR 10x60 FB will provide a strong and reliable hold that is perfect for installing outdoors due to its UV and weather resistance and ETA approval. If you want to know if the MFR is suitable for your air-conditioning units then please don't hesitate to get in contact with our technical support team to get your free assessment.
