Insulation fixings guide

insulation fixing guide title image
go back

Fixing products

How do you want to fix?

Light-duty
Heavy-duty
Light-duty
Heavy-duty

Light duty applications < 20 kg

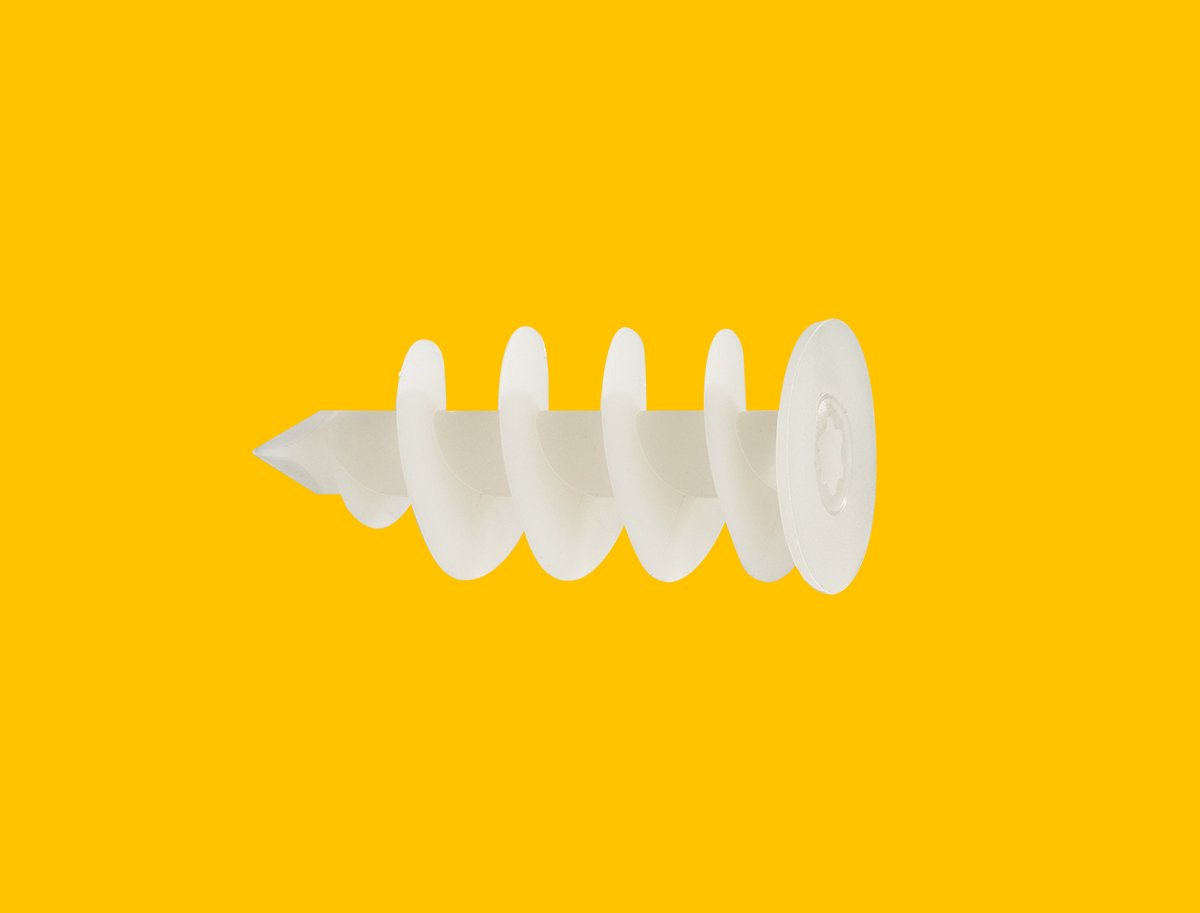

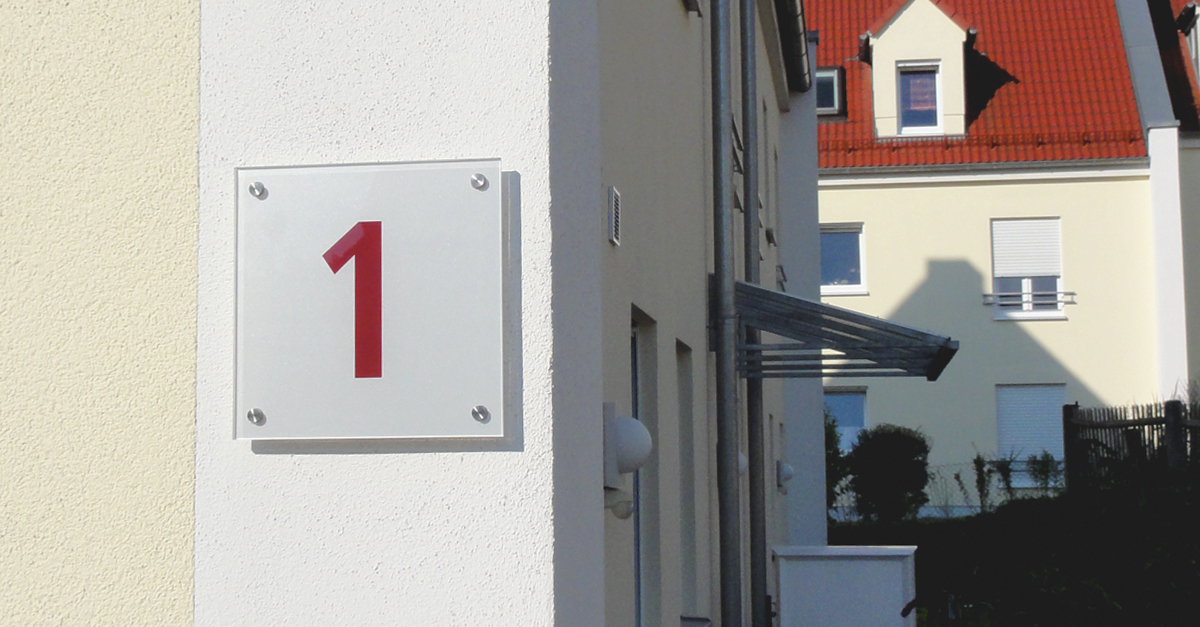

Insulation plug IPL 60

Special plug for light fastenings in thermal insulation composite systems

• Lamps
• Flood lights
• Motion detector
• Letterbox
• Clothes hook
• Signs

Plug length: 60 mm

• External Thermal Insulation Composite Systems (ETICS)
• Heraklith boards
• Wood fibre insulation boards (pre-drilling: 8 mm, HSS-drill or wood drill recommended)
• EPS polystyrene insulation board (Styrofoam)
• XPS polystyrene insulation board
(Styrodur, perimeter insulation)
• Mineral wool, Rockwool

Technical data sheet IPL 60

DuoBit

View product
Play Video

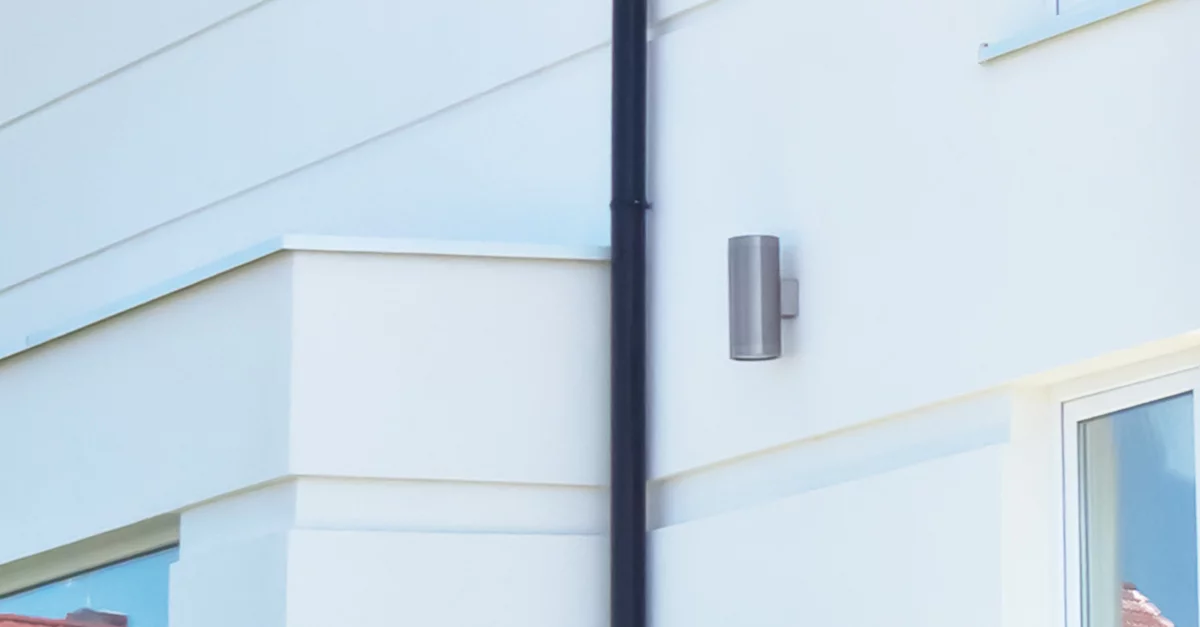

Insulation plug IPL 90

Special plug for light fastenings in thermal insulation composite systems

• Lighting
• Flood lights
• Motion detector/sensor
• Letterbox
• Clothes hook
• Signs

Plug length: 90 mm

• External Thermal Insulation Composite Systems (ETICS)
• Heraklith boards
• Wood fibre insulation boards (pre-drilling: 13 mm, HSS-drill or wood drill recommended)
• EPS polystyrene insulation board (Styrofoam)
• XPS polystyrene insulation board
(Styrodur, perimeter insulation)
• Mineral wool, Rockwool

Technical data sheet IPL 90

View product
Play Video

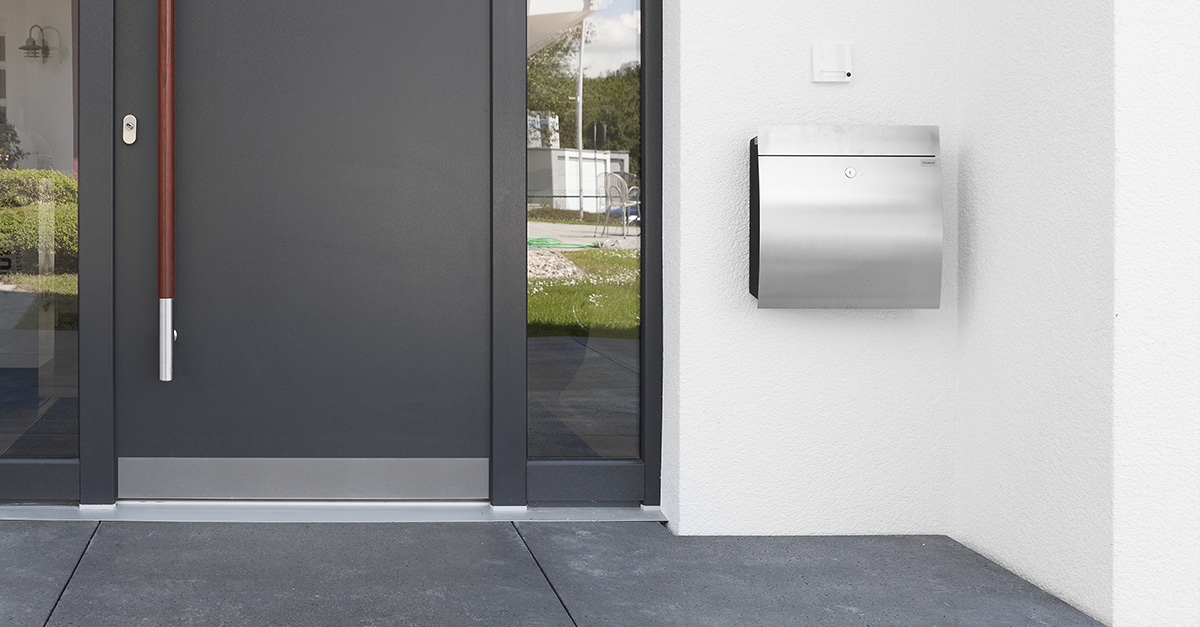

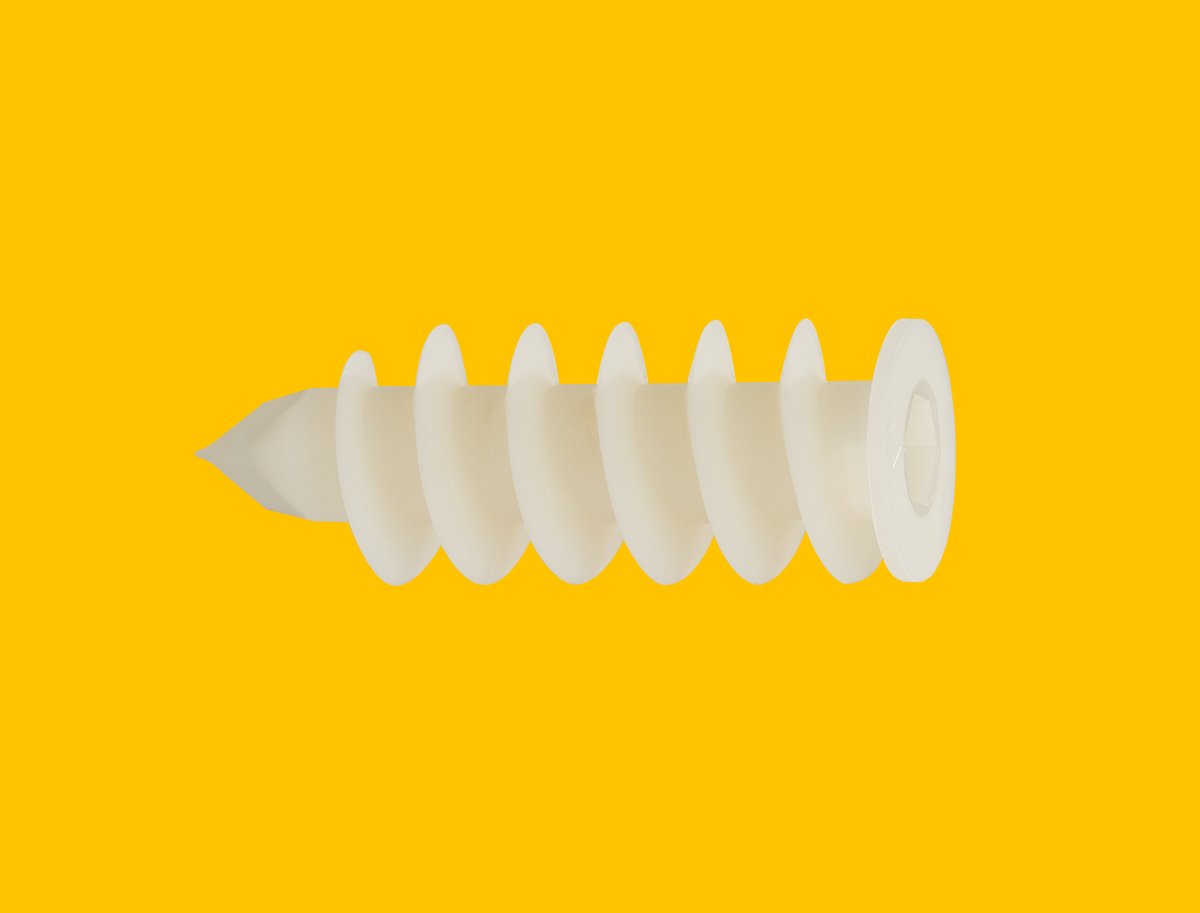

Insulation plug IPL 95

Special plug for light fastenings in thermal insulation composite systems

• Lamps
• Flood lights
• Motion detector
• Letterbox
• Clothes hook
• Signs

• External Thermal Insulation Composite Systems (ETICS)
• Heraklith boards
• Wood fibre insulation boards (pre-drilling: 13 mm, HSS-drill or wood drill recommended)
• EPS polystyrene insulation board (Styrofoam)
• XPS polystyrene insulation board
(Styrodur, perimeter insulation)
• Mineral wool, Rockwool

Technical data sheet IPL 95

View product
Play Video

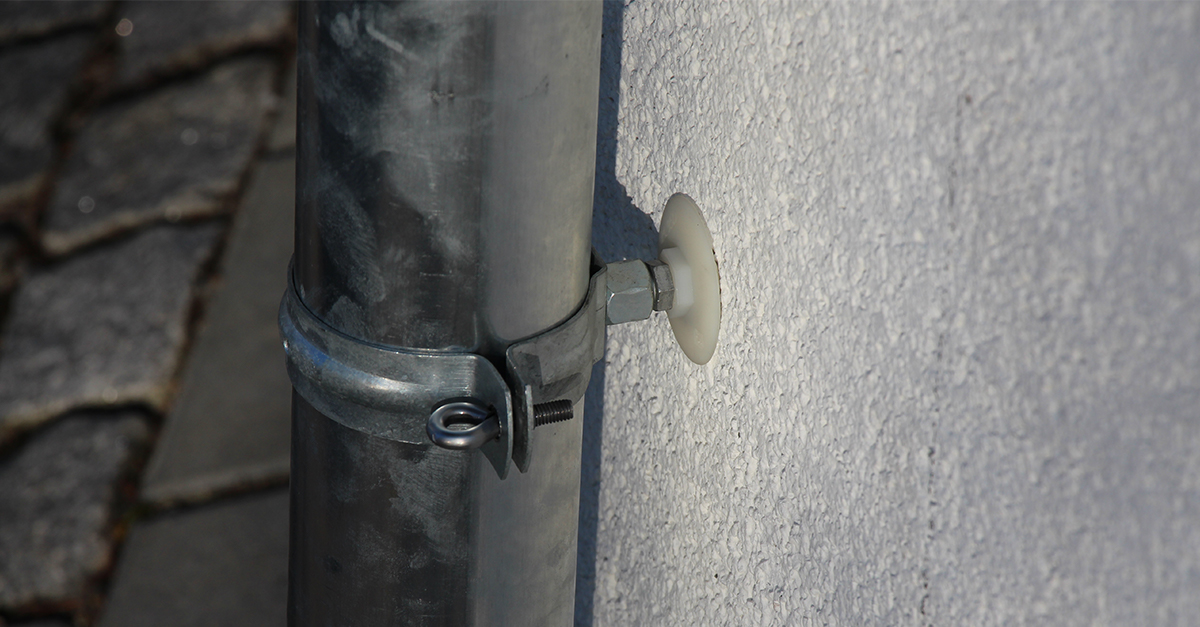

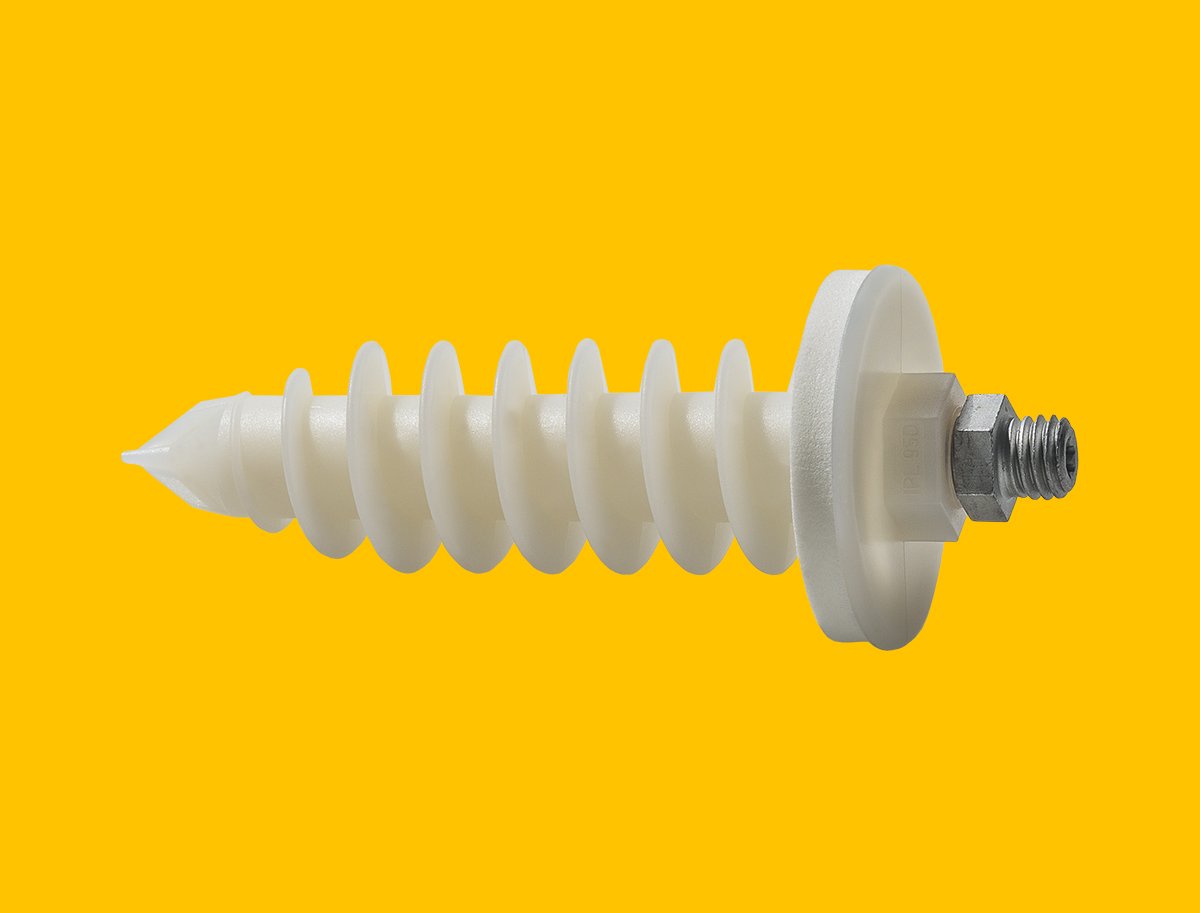

Insulation plug IPL 95 DS

Quick and clean attachment of rainwater downpipe clamps in ETICS

• Rainwater downpipes
• Letterbox
• Lighting system ceilings
• Window blinds
• Flood lights

• External Thermal Insulation Composite Systems (ETICS)
• Heraklith boards
• Wood fibre insulation boards (pre-drilling: 13 mm, HSS-drill or wood drill recom
• EPS polystyrene insulation board (Styrofoam)
• XPS polystyrene insulation board
(Styrodur, perimeter insulation)

Technical data sheet IPL 95 DS

Hanger bolt EDR

View product
Play Video

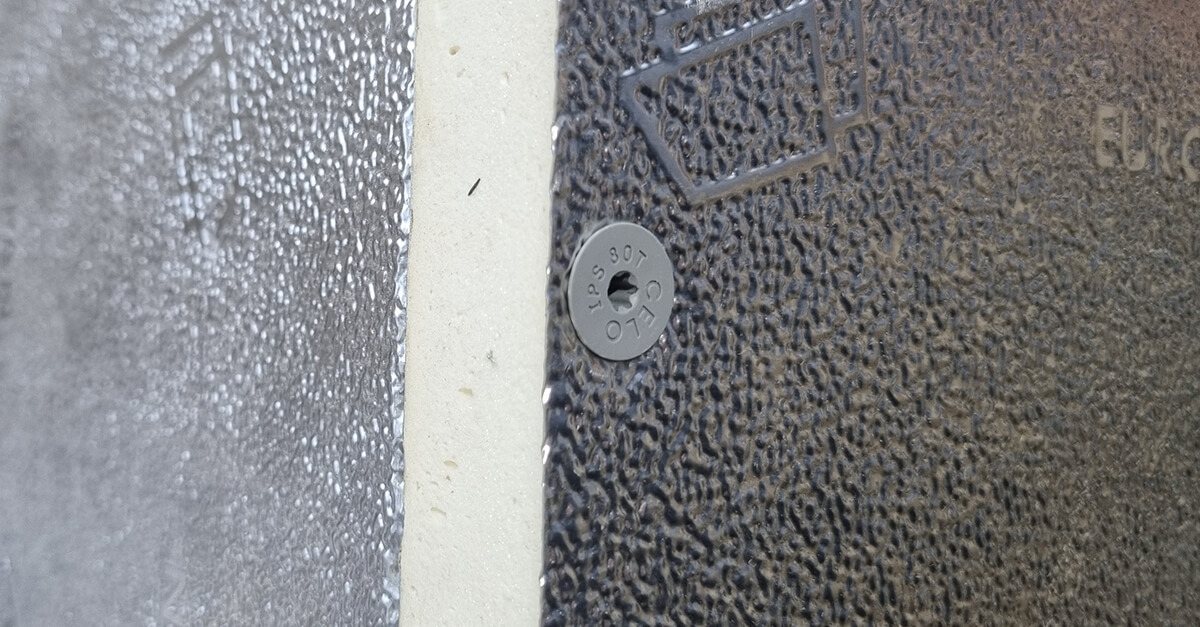

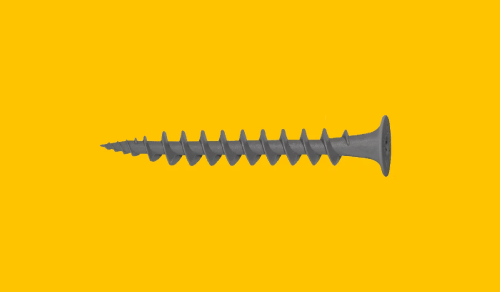

Insulation screw IPS 80T

Insulation screw with trumpet head for a fast and thermal bridge-free connection of insulation panels

• Connecting insulation panels
• Sheathing/insulation of ventilation ducts
• Attachment of dimpled foil
• Motion detector
• Lighting
• Signs

• External Thermal Insulation Composite Systems (ETICS)
• Wood fibre boards (also see IPS-H)
• EPS polystyrene insulation board (Styrofoam)
• XPS polystyrene insulation board
(Styrodur, perimeter insulation)
• Mineral wool, Rockwool

Technical data sheet IPS 80T

Screw bit TX 1/4"x25

View product

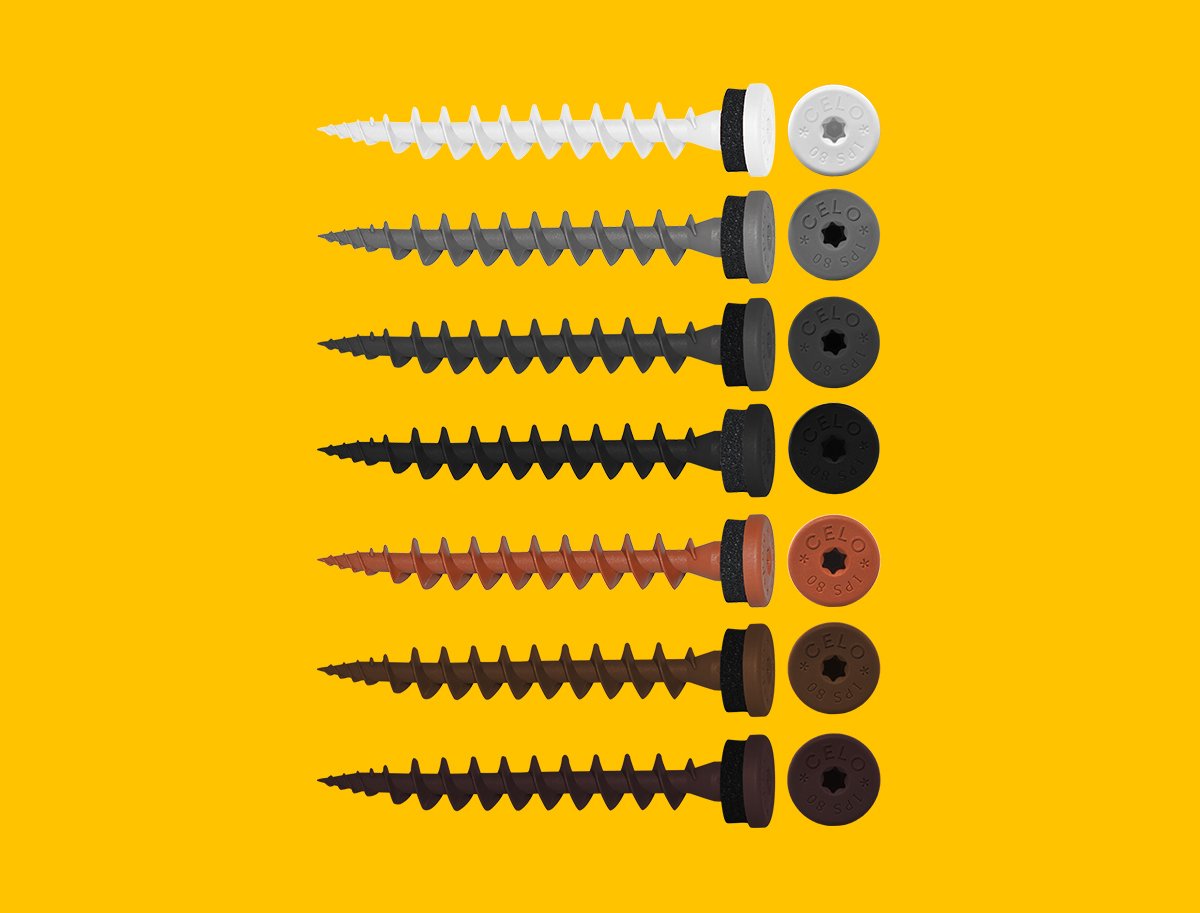

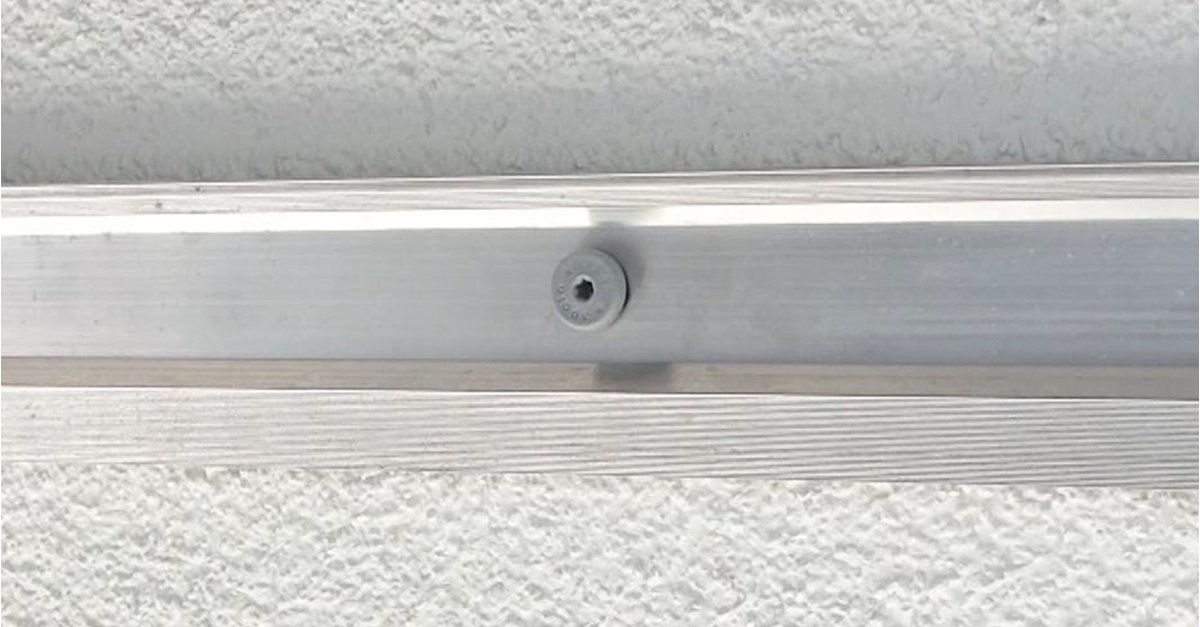

Insulation screw IPS 80

Driving rain-tight direct fastening in thermal composite systems

• Wall connection profiles
• Base protection profiles
• Cornice covers
• Motion detector
• Lighting
• Signs

• External Thermal Insulation Composite Systems (ETICS)
• Wood fibre boards (IPS-H, see page 96, is recommended)
• EPS polystyrene insulation board (Styrofoam)
• XPS polystyrene insulation board
(Styrodur, perimeter insulation)
• Mineral wool, Rockwool

Technical data sheet IPS 80

View product
Play Video

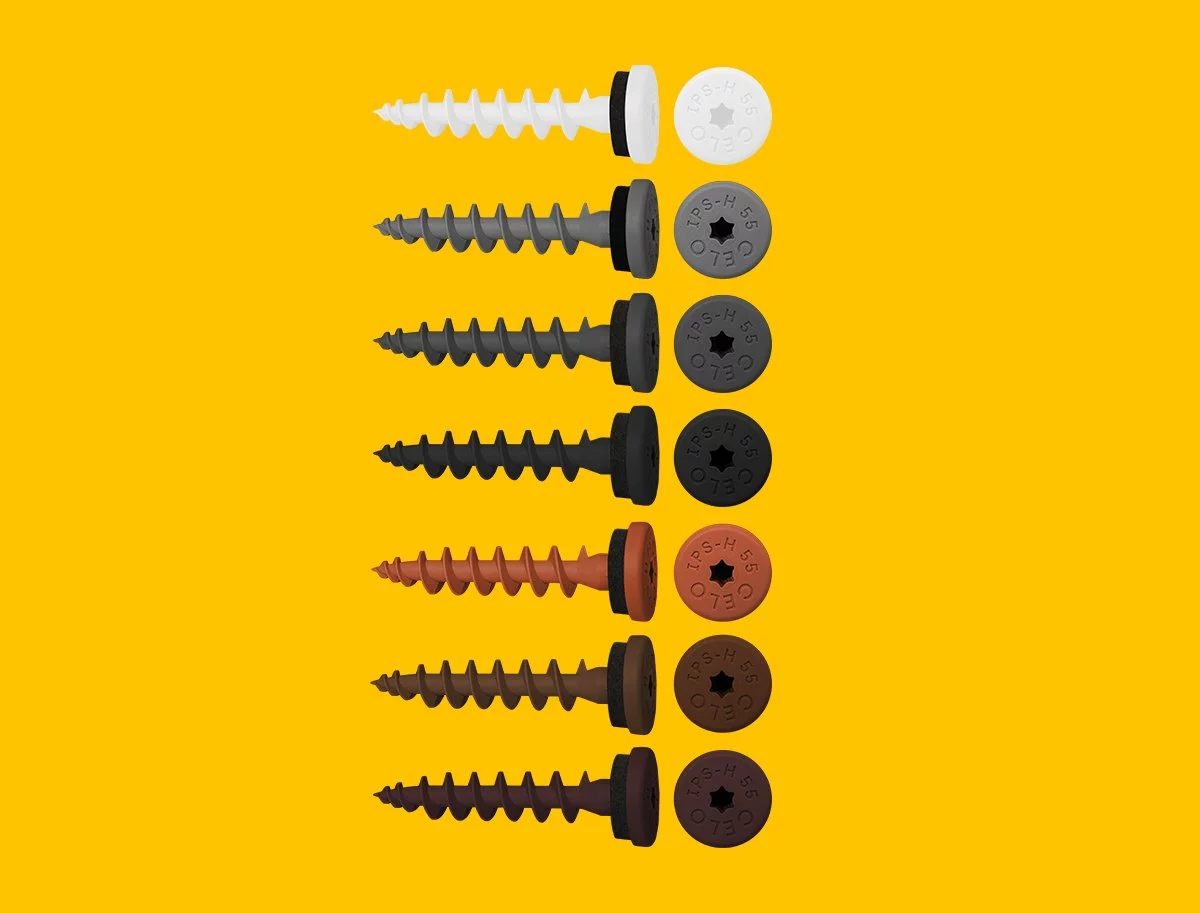

Insulation screw IPS H 55

Insulation screw with EPDM seal for direct fastening in wood fiber insulation panels and perimeter insulation.

• Wall connection profiles
• Base protection profiles
• Cornice covers
• Motion detector
• Lighting
• Signs

• XPS polystyrene insulation board
(Styrodur, perimeter insulation)
• Wood fibre insulation

Technical data sheet IPS-H 55

View product
Play Video

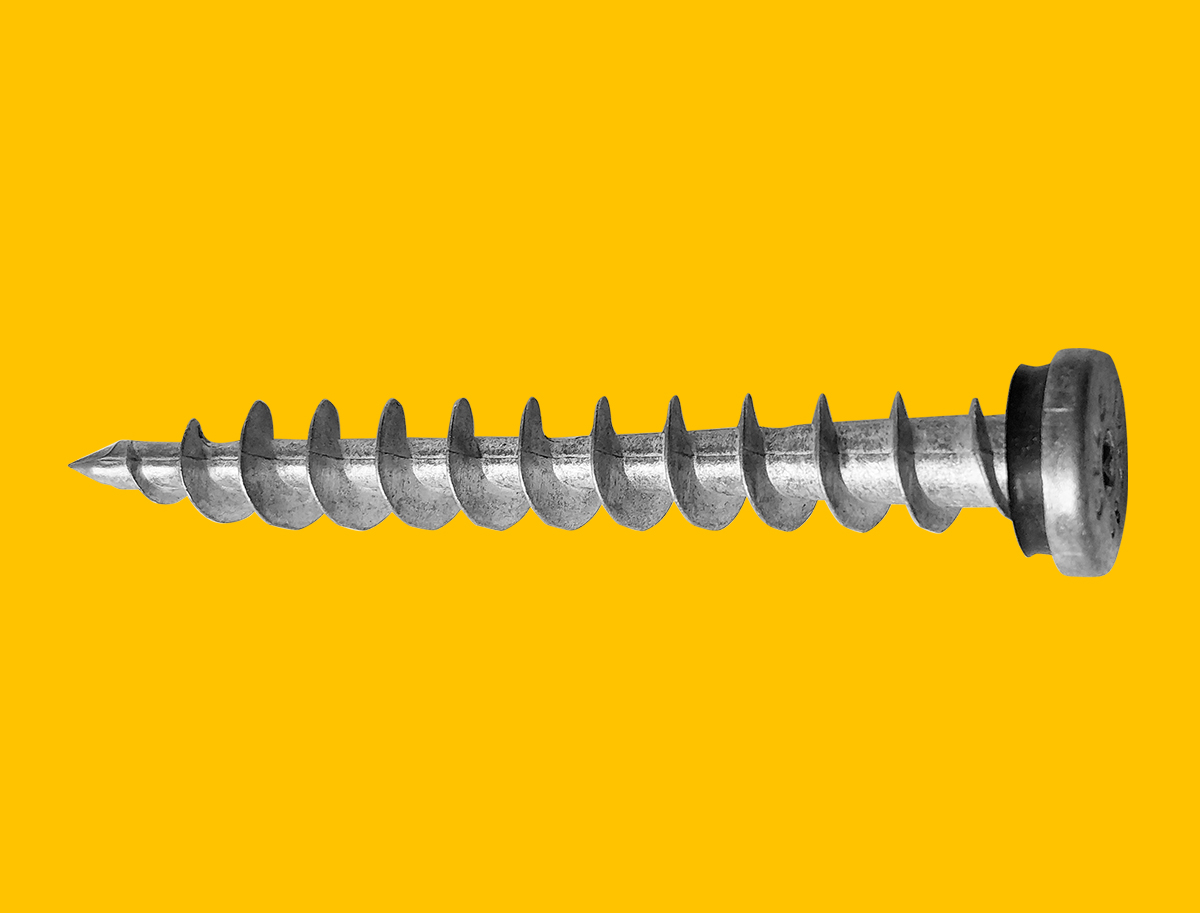

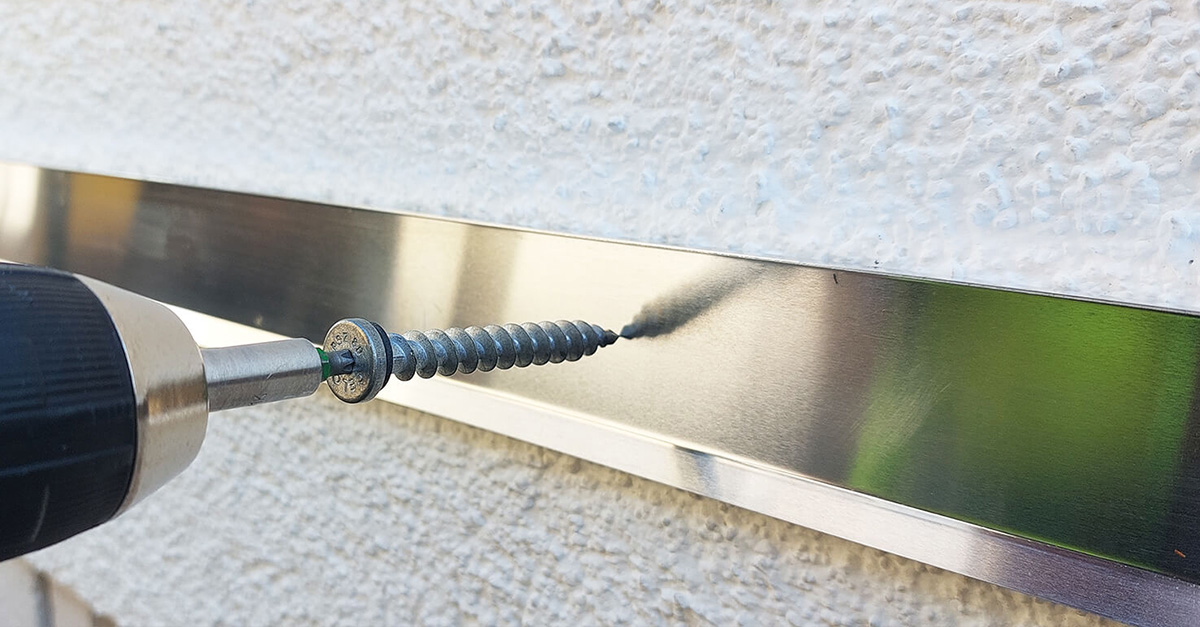

Insulation screw IPSZ 80 - die cast zinc

Insulation screw made of die-cast zinc with pre-assembled EPDM seal for direct fastening in ETICS and aerated concrete

• Wall connection profiles
• Base protection profiles
• Cornice covers
• Motion detector
• Lighting
• Signs

• External Thermal Insulation Composite Systems (ETICS)
• Wood fibre boards and perimeter insulation (IPSZ-H is recommended)
• EPS polystyrene insulation board (Styrofoam)
• XPS polystyrene insulation board
(Styrodur, perimeter insulation)
• Mineral wool, Rockwool
• Aerated concrete AAC2
• Aerated concrete AAC4

Technical data sheet IPSZ 80

Screw bit TX 1/4"x25

View product
Play Video

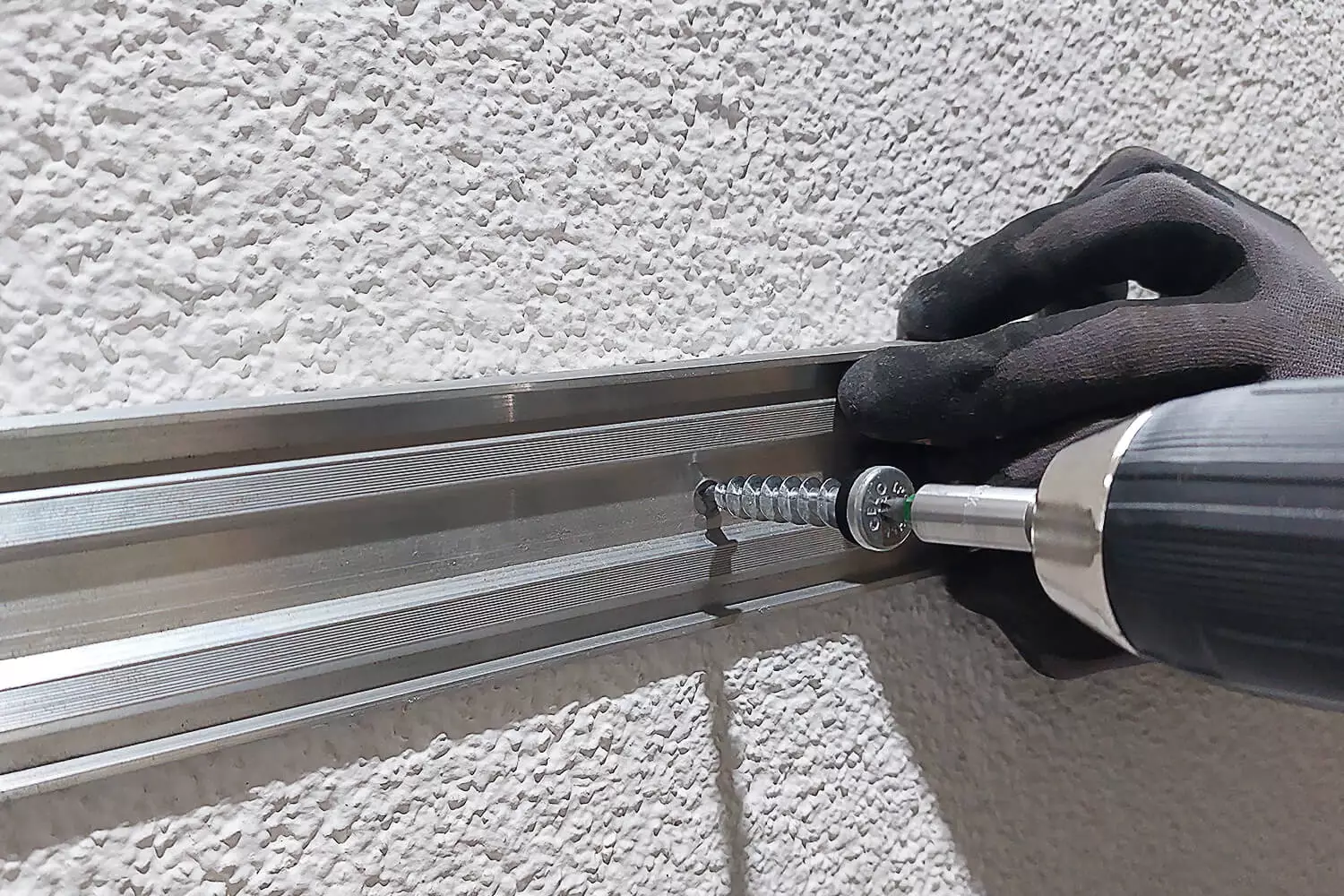

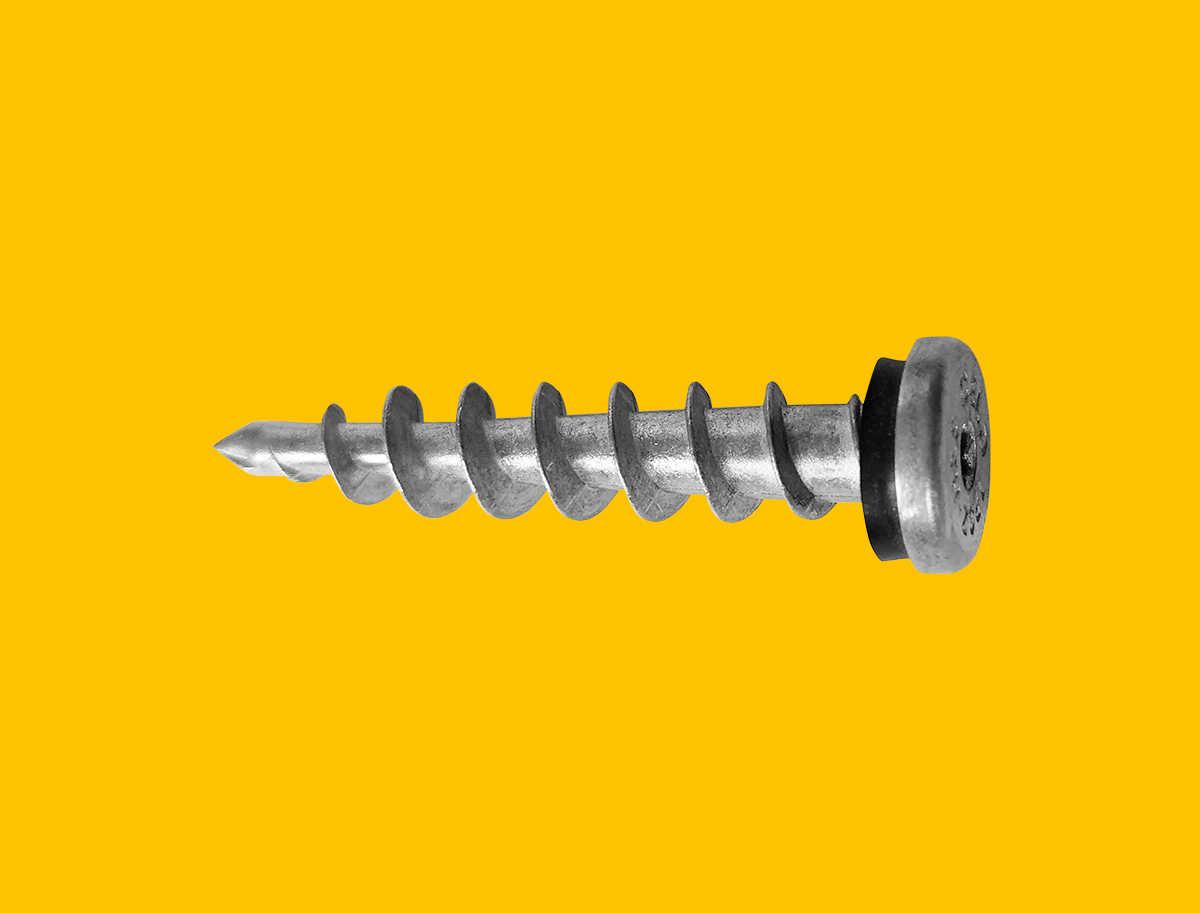

Insulation screw IPSZ-H 55 - die-cast zinc

Special plug without head for direct fastening in ETICS

• Wall connection profiles
• Base protection profiles
• Cornice covers
• Motion detector
• Lighting
• Signs

• XPS polystyrene insulation board
(Styrodur, perimeter insulation)
• Wood fibre boards
• Aerated concrete AAC2
• Aerated concrete AAC4

Technical data sheet IPSZ-H 55

Screw bit TX 1/4"x25

View product
Play Video

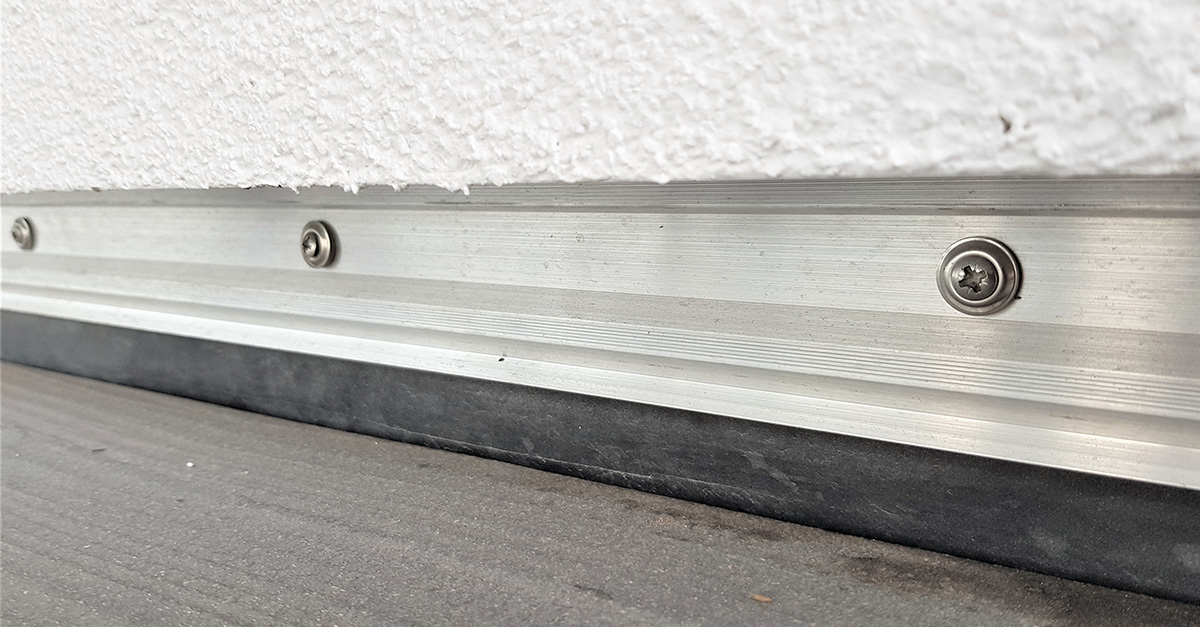

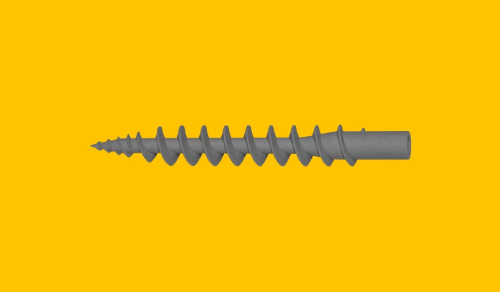

Insulation screw plug IPSD 80

Special plug without head for direct fastening in ETICS

• Wall connection profiles
• Base protection profiles
• Cornice covers
• Motion detector
• Lighting
• Signs

• External Thermal Insulation Composite Systems (ETICS)
• Wood fibre boards (IPSD-H is recommended)
• EPS polystyrene insulation board (Styrofoam)
• XPS polystyrene insulation board
(Styrodur, perimeter insulation)
• Mineral wool, Rockwool

Technical data sheet IPSD 80

Plumber screws

View product

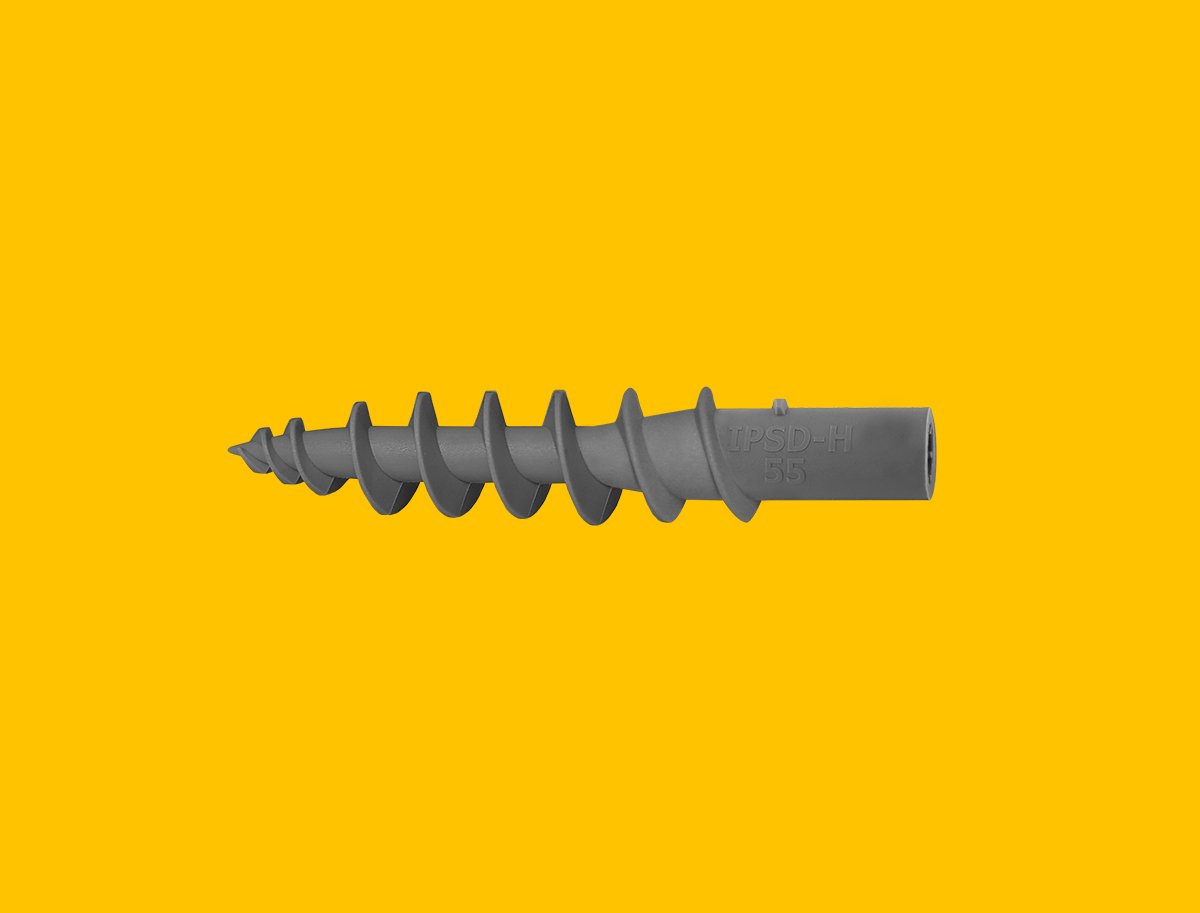

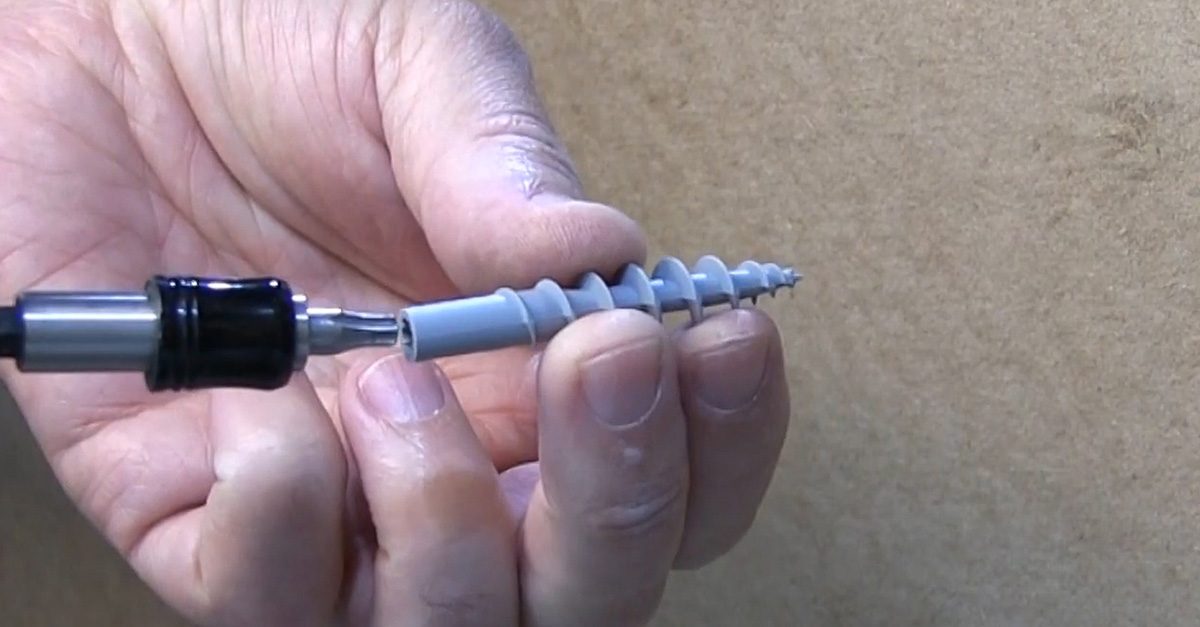

Insulation screw plug IPSD-H 55

Scew plug without head for direct fastening in wood fiber insulation panels

• Wall connection profiles
• Base protection profiles
• Cornice covers
• Motion detector
• Lighting
• Signs

• XPS polystyrene insulation board
(Styrodur, perimeter insulation)
• Wood fibre insulation

Technical data sheet IPSD-H 55

Plumber screw

View product
Play Video

Heavy duty applications > 20 kg

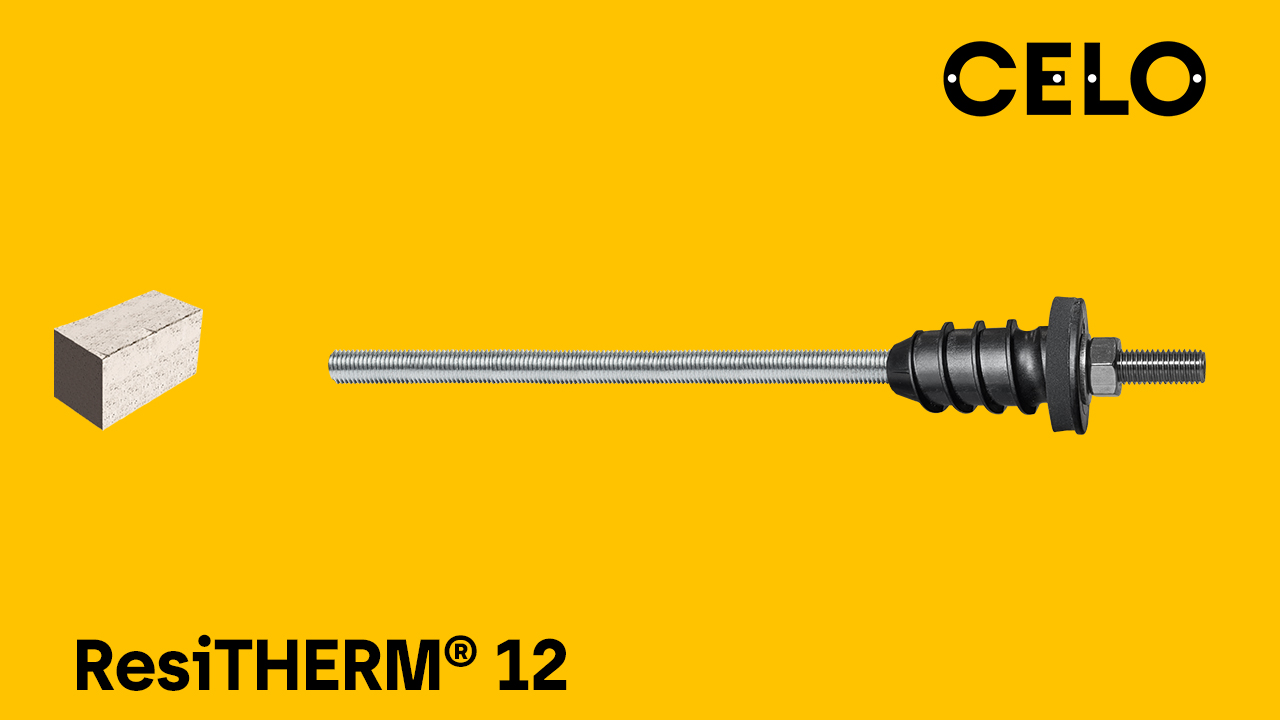

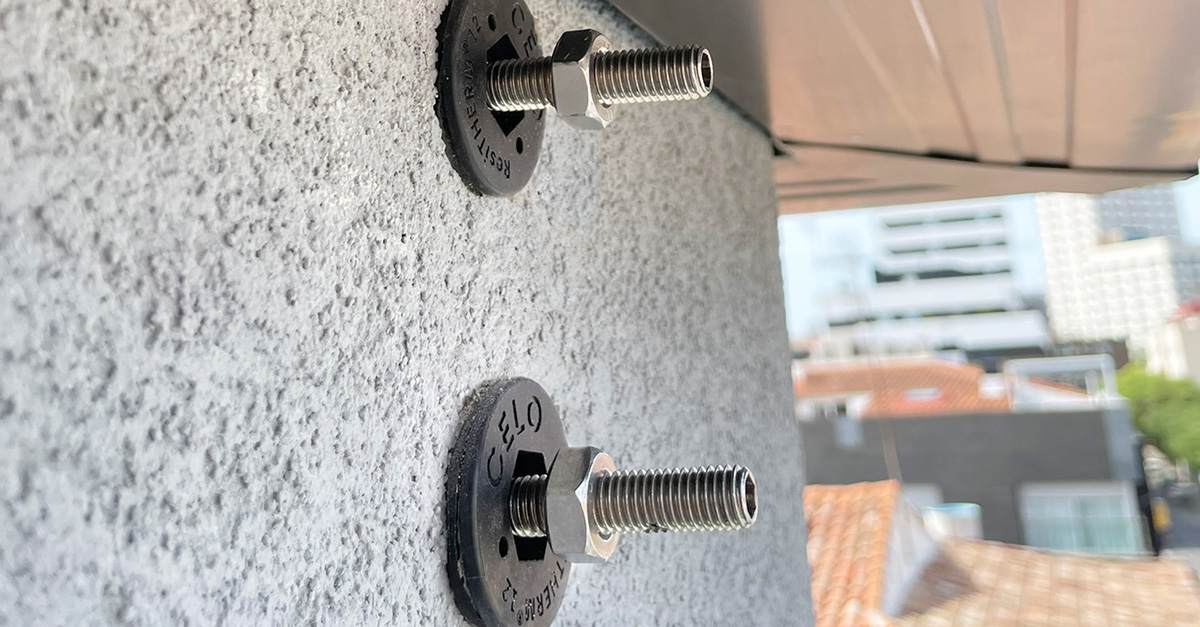

Distance mounting ResiTHERM® 12

ETA approved & driving rain-tight heavy-duty fastening

• Canopies
• Satellite dishes
• Outdoor chimneys
• Rainwater downpipes
• Building constructions
• Sun protection sails
• Window bars
• Air conditioners
• Window grills

• Hollow brick + ETICS
• Aerated concrete AAC2 + ETICS
• Aerated concrete AAC4 + ETICS
• Concrete + ETICS
• Solid sand lime brick
• Hollow sand lime brick

Technical data sheet ResiTHERM® 12

• Teaser video
• Mounting in concrete
• Mounting in masonry

• Two-hole nut driver
• Threaded stud adapter M12/M10
• Injection mortar VYSF
•Injection mortar VY ECO SF
•Injection mortar PYSF

View product
Play Video

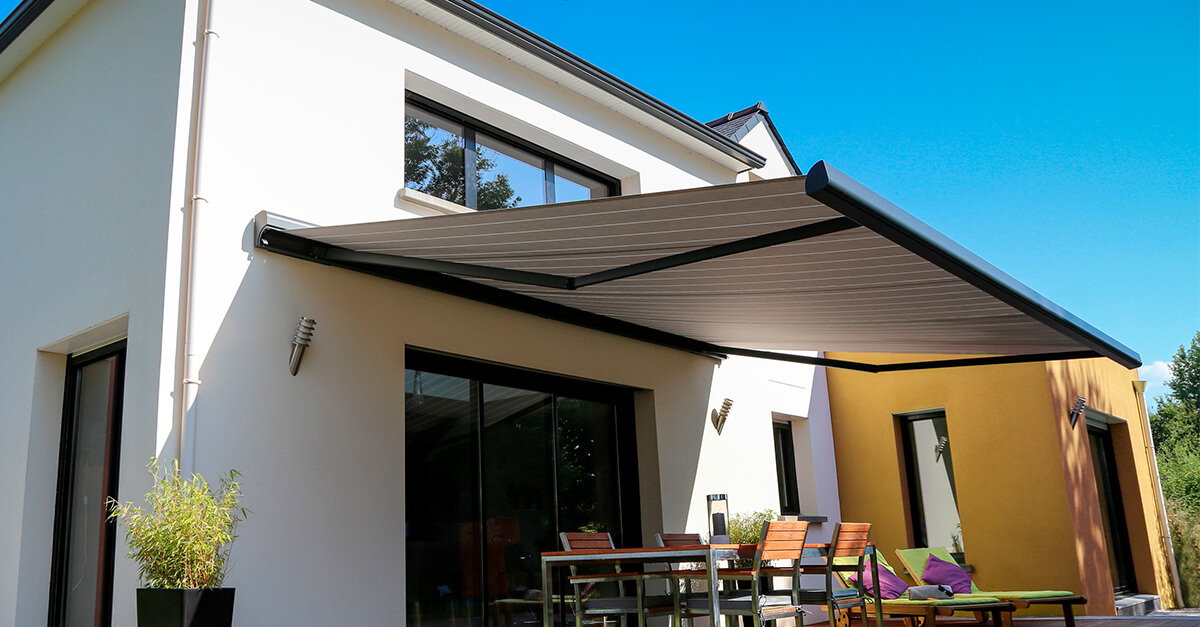

Installation on insulated masonry

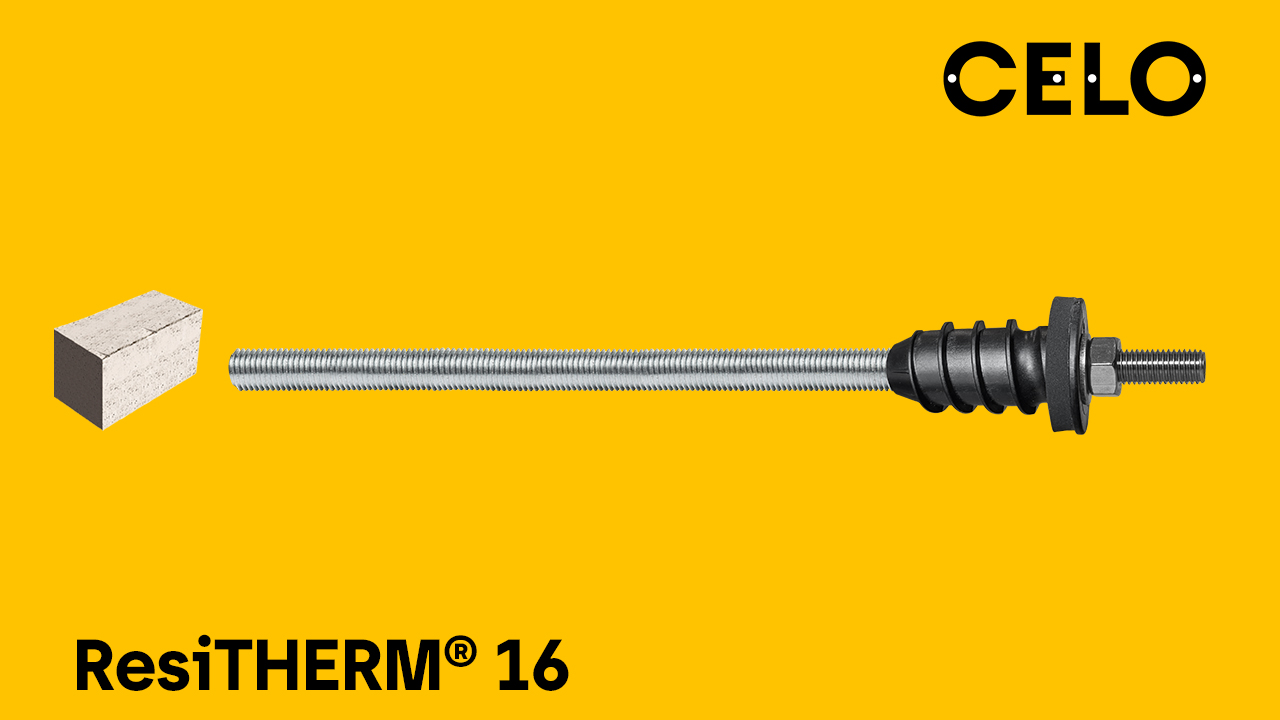

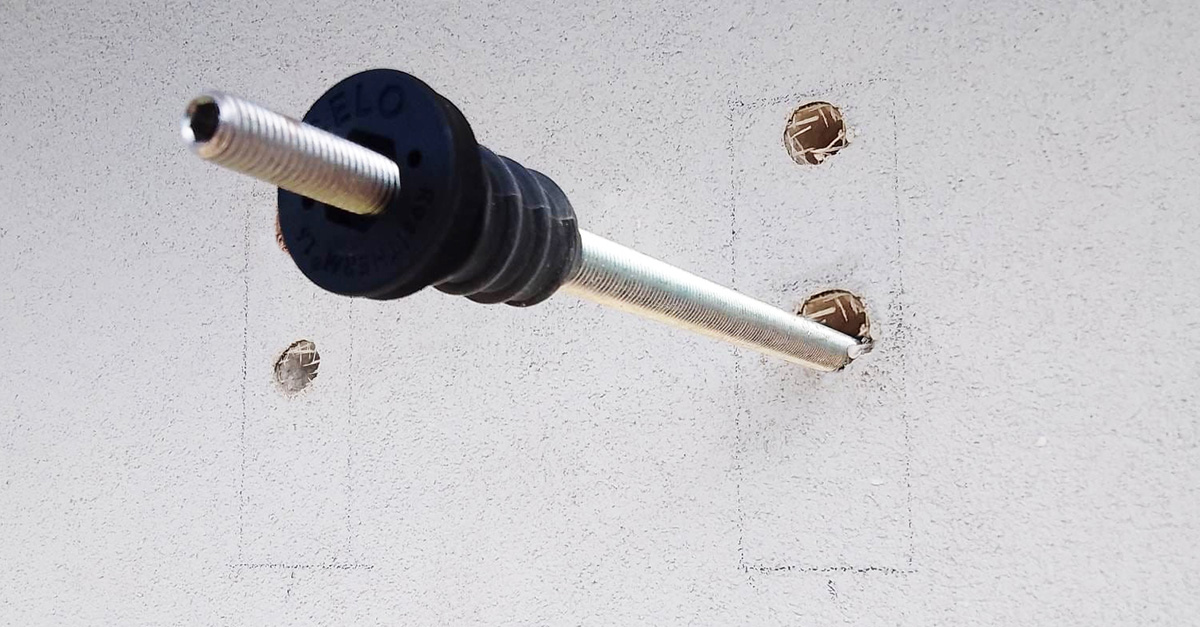

Distance mounting ResiTHERM® 16

ETA approved & driving rain-tight heavy-duty fastening

• Awnings
• Canopies
• Satellite dishes
• French balconies
• Guard rails
• Building constructions
• Sun protection sails
• Window bars
• Air conditioners
• Window grills

• Hollow brick + ETICS
• Aerated concrete AAC2 + ETICS
• Aerated concrete AAC4 + ETICS
• Concrete + ETICS
• Solid sand lime brick
• Hollow sand lime brick

Technical data sheet ResiTHERM® 16

• Teaser video
• Mounting in concrete
• Mounting in masonry

• Two-hole nut driver
• Threaded stud adapter M12/M10
• Injection mortar VYSF
•Injection mortar VY ECO SF
•Injection mortar PYSF

View product
Play Video

Installation on insulated masonry

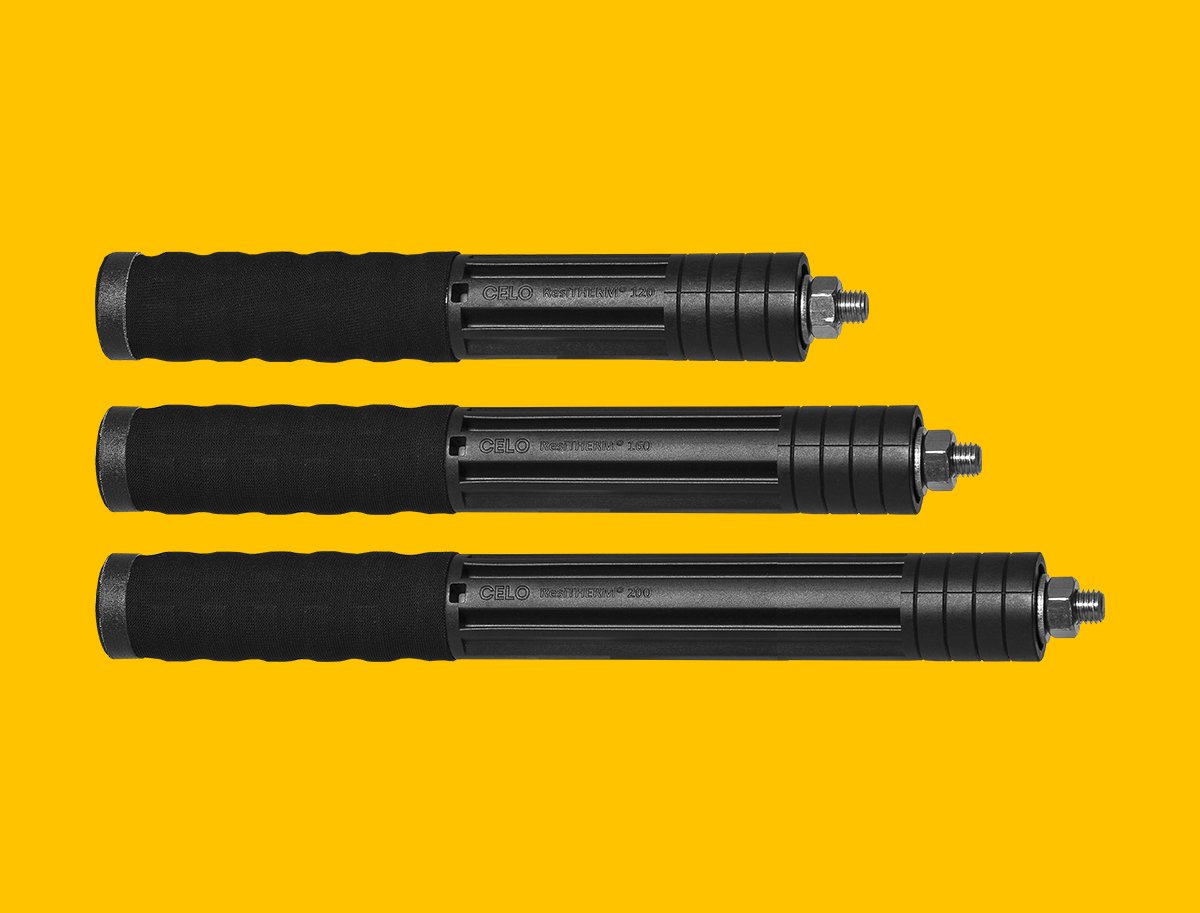

Distance mounting ResiTHERM® 37

Distance mounting system for perforated bricks - fast, reliable and thermally seperated

• Awnings
• Canopies
• Satellite dishes
• French balconies
• Guard rails
• Building constructions
• Sun protection sails
• Window bars

• Hollow brick + ETICS
• Aerated concrete AAC2 + ETICS
• Aerated concrete AAC4 + ETICS
• Concrete + ETICS

Technical data sheet ResiTHERM® 37

View product
Play Video

Installation on insulated masonry
