Insulation screw IPS-H 55

Special screw, designed for direct fastening into wood fibre insulation boards and perimeter insulation panels

Product image of insulation screw IPS-H all colours

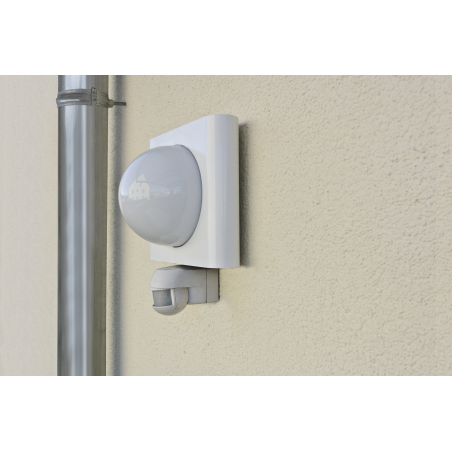

Application image of insulation screw IPS-H 55: Retrofitted motion detector

Product overview

Insulation screw IPS-H is a special screw, designed for direct fastening into wood fibre insulation boards and perimeter insulation panels. She is used for fastening wall connection profiles, metal sheets, base protection profiles, cornice covers, motion detectors, lamps, signs, etc. without thermal bridges. The special feature: The short IPS-H screw with a length of 55 mm is perfectly suited for insulation thicknesses from 60 mm.

Due to the sharp drill tip, pre-drilling in plaster (up to 7mm) is not necessary. The screw is made out of glass fibre-reinforced nylon, that means: aging, weather and UV-resistant. The IPS-H has a stylish flat head (Ø = 16 mm) with EPDM-sealing for optimal sealing and adaption to the ground. The IPS is available in different colours to match with the most common materials.

With the TX-Drive (TX25) you get a fast and easy installation, while the distinctive thread ensures good hold in insulation boards. The screw can be optimally screwed in through a 8 mm diameter clearance hole, which is particularly common for wall profiles. The head hole allows light duty fixings in combination with a screw 3,5 mm e.g. for motion detectors, lamps or letterboxes on the facade.

Made in Germany.

Download documents

View videos

List of references

Filters

Colour

Reference

9155IPSH

9455IPSH

9AN55IPSH

9CO55IPSH

9GR55IPSH

9M55IPSH

9MO55IPSH

Diameter [mm]

Length [mm]

Colour

RAL 9003 - White

RAL 9017 - Traffic black

RAL 7016 - Anthracite

RAL 8004 - Copper brown

RAL 7045 - Telegrey

RAL 8014 - Sepia brown

RAL 8017 - Chocolate brown

Plug length [mm]

Clearance hole [mm]

8-10

Recess type

TX25

Screw diameter [mm]

3.5

Packaging units

Packaging type.

Box

7 / 7 references are shown

Applications

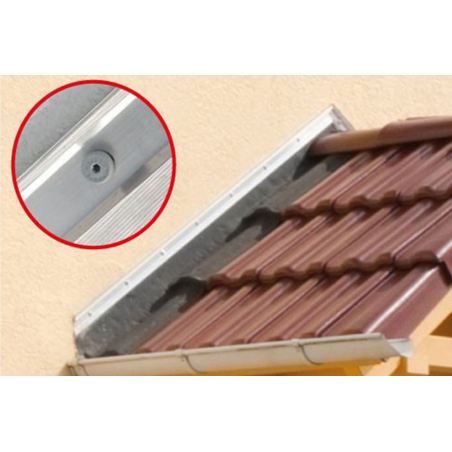

Wall connection profiles
Metal sheets
Base protection profiles
Cornice covers
Motion detector
Lighting
Signs

Further specifications

Key features:

Special screw for direct fastening into wood fibre insulation boards and perimeter insulation panels - extremely fast and without thermal bridges!
For fastening of wall connection profiles, metal sheets, base protection profiles, cornice covers, motion detectors, lamps, signs, etc. into the insulation material
No pre-drilling in plaster (≤ 7 mm) due to sharp drilling tip
Made with fiberglass reinforced nylon, incorporates EPDM rubber weather, aging and UV resistant
Stylish flat head in different colors
Suitable for clearance holes ≥ Ø 8 mm (common for wall profiles)
Suitable for light duty fixings in combination with a screw Ø 3,5 mm

Base materials:

Wood fibre insulation board
Perimeter insulation panel

How to install

Step 1

Step 2

Step 3

Step 4

Step 5

Step 6

Watch the video
