Insulation screw plug IPSD 80

Special plug without head for fast fixing without thermal bridge in ETICS.

Product image of Insulation screw plug IPSD 80

Application image of insulation screw plug IPSD: base protection profiles

Application image of insulation screw plug IPSD: Lamp above the balcony

Product overview

The insulation screw plug IPSD 80 is a special plug for thermal insulation, that allows an extremely fast fixing without thermal bridge in ETICS. The IPSD 80 is ideally suitable for direct fixing into insulation materials of wall connection profiles and other light duty fixings such as motion detectors when used in combination with a 4.5 mm diameter plumber screw.

Its perfectly matched internal geometry allows an easy screwing in of the plumber screw. This special plug can be mounted directly into the insulation material with a TX drive (TX25) or removed. Another advantage is that only a small hole remains in the insulation material after disassembly. The insulation board plug IPSD 80 is made out of glass-fibre reinforced, weather and aging resistant nylon. With a length of 80 mm, it can be used for almost all insulated façades.

Suitable insulation materials are styrofoam boards, hard foam boards, polystyrene boards and wood fibre boards. Due to the distinctive thread, the plug achieves a recommended load value of approx. 6 kg. Due to its sharp drilling tip, the innovative insulation fixing screw IPSD 80 can usually be installed in ETICS without pre-drilling.

Download documents

List of references

Filters

Sort by

Column

Sort direction

Reference

9GR80IPSD

Length [mm]

Plug length [mm]

Clearance hole [mm]

8-10

Recess type

TX25

Suitable for

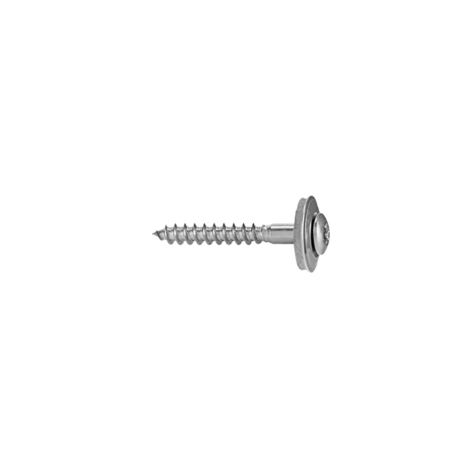

Plumbing screw 4,5x25

Material

Nylon

Packaging units

Packaging type.

Box

1 / 1 references are shown

Applications

Wall connection profiles
Base protection profiles
Cornice covers
Motion detector
Lighting
Signs

Further specifications

Key features:

Special screw for direct fastening into external thermal insulation composite systems (ETICS) - fast and without thermal bridges!
For fastening of wall connection profiles, metal sheets, base protection profiles, cornice covers, motion detectors, lamps, signs, etc. into the insulation material
Suitable for chipboard screws 4,5 mm
No pre-drilling in plaster (≤ 7 mm) due to sharp drilling tip
80 mm length for a good hold in the insulation material
Suitable for clearance holes ≥ Ø 8 mm (common for wall profiles)
Made of robust glass-fibre reinforced nylon
