Insulation plug IPL 95

Special plug for external insulation composite systems
Product image of insulation screw IPL 95

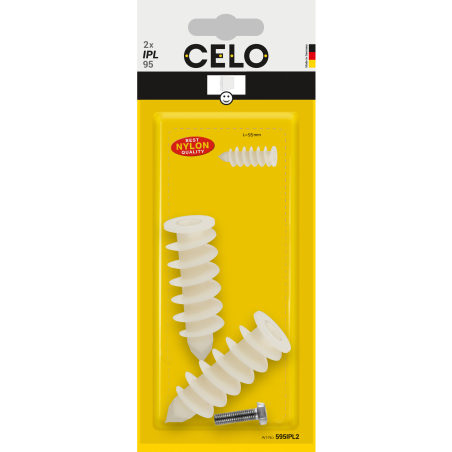

Packaging photo of box 890 insulation plug IPL 95 front side
Packaging photo of box 890 insulation plug IPL 95 label side

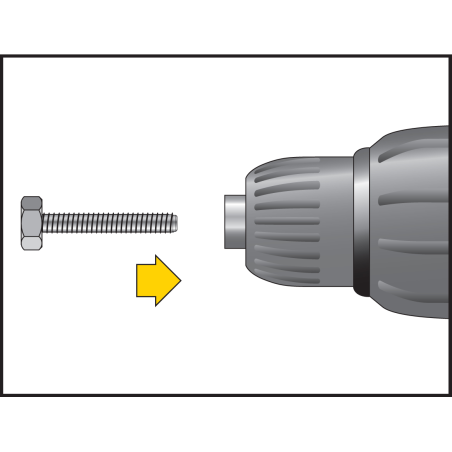

Mounting image IPL95 1
Mounting image IPL95 2
Mounting image IPL95 3

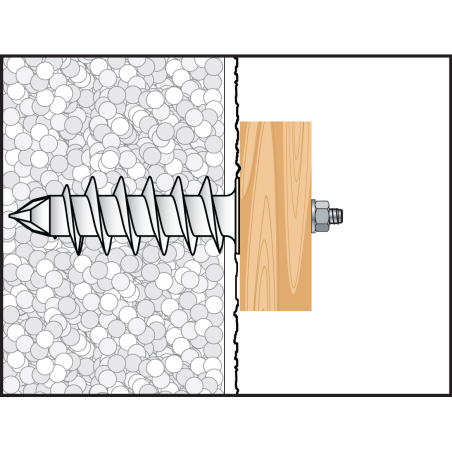

Mounting image IPL95 4
Application image of insulation plug IPL: Lamp on the insulated facade
Application image of insulation plug IPL: Number plate on the house wall

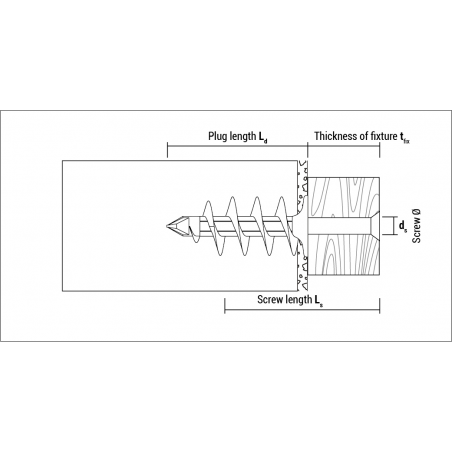

EN - Technical drawing of insulation plug IPL
A Back to combination list
Reference:
995IPL
Material :
Nylon
Recess type :
SW13
Plug length [mm] Ld:
95
Screw diameter [mm] ds:
8-10
Head diameter [mm] dh:
32
Insertion depth [mm] Is:
40-80
Packaging units:
25
Packaging type.:
Box
GTIN:
4250438906603
Download documents
View videos
Reference Description
995IPL

With the insulation plug IPL 95 direct fastening into external insulation material is possible - without thermal bridge. It is therefore a perfect solution for fixing in thermal insulation composite systems, hard-foam boards, polystyrene boards and many other substrates. The IPL consists of ageing- and weather-resistant nylon, is temperature-resistant from -40 to +80 °C and, thanks to its sharp cutting tip, drills reliably through hard ETICS plaster (up to 7 mm) - without pre-drilling.

The larger IPL 95 with head Ø 32 mm is ideal for larger lamps and letterboxes, but is also suitable for fixing rainwater downpipes. A metric screw M8 x 30 is included as setting tool for the SW13 drive of the plug.

Applications
  • Lighting
  • Motion sensor/detector
  • Letterbox
  • Signs
  • Clothes hook
  • Rainwater downpipes
  • Window blinds
Further specifications

Key features:

  • Special plug for external insulation composite systems
  • Direct fastening into the insulation material - no thermal bridge
  • No predrilling necessary due to sharp cutting tip; also drills reliably through hard ETICS plaster (≤ 7 mm)
  • Made of ageing and weather resistant nylon
  • Temperature resistant from -40°C to +80°C
Base materials
  • ETICS (External Thermal Insulation Composite System)
  • Polystyrene board
  • Hard foam board
  • Wood fibre insulation board (pre-drilling: 8mm for IPL60, 13mm for IPL95)
  • Heraklith board
Other related products
How to install
Step 1
Step 2
Step 3
Step 4
