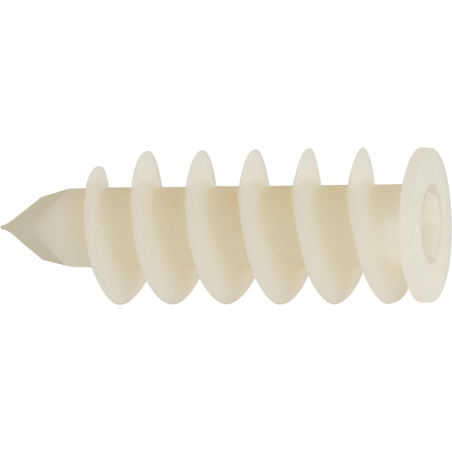

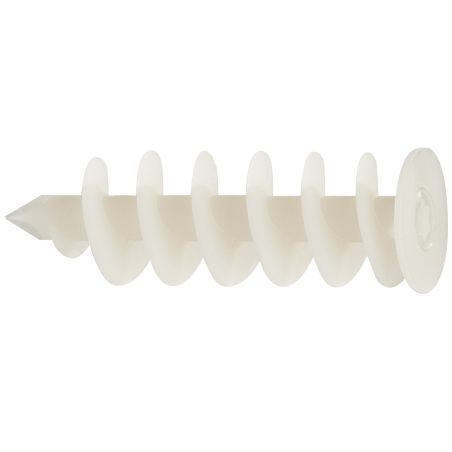

Insulation plug IPL 60

Name: Insulation plug IPL 60
Brand: CELO Fixings technology - Fasteners and fixings manufacturer
SKU: 960IPL

Special plug for external insulation composite systems

Packaging photo of box 850 insulation plug IPL front side

Packaging photo of box 850 insulation plug IPL label side

Packaging photo of box 850 insulation plug IPL back side

Application image of insulation plug IPL: Number plate on the house wall

Application image of insulation plug IPL: Lamp on the insulated facade

EN - Technical drawing of insulation plug IPL

A Back to combination list

Reference:

960IPL

Material :

Nylon

Recess type :

TX40

Plug length [mm] L_d:

Screw diameter [mm] d_s:

4.5-5

Head diameter [mm] d_h:

Insertion depth [mm] I_s:

30-50

Packaging units:

Packaging type.:

Box

GTIN:

4250438906580

Download documents

View videos

Reference Description

960IPL

With the insulation plug IPL 60 direct fastening into external insulation material is possible - without thermal bridge. It is therefore a perfect solution for fixing in thermal insulation composite systems, hard-foam boards, polystyrene boards and many other substrates. The IPL consists of ageing- and weather-resistant nylon, is temperature-resistant from -40 to +80 °C and, thanks to its sharp cutting tip, drills reliably through hard ETICS plaster (up to 7 mm) - without pre-drilling.

The IPL 60 with a head Ø 25 mm is ideal for light fixings such as small lamps, motion detectors and edge trim strips, which are fixed to the anchor with a chipboard screw Ø 4.5- 5.0 mm. Make the installation of the IPL 60 easier with the practical duo bit: no bit change is necessary during installation and the duo bit is available in three versions (TX20/TX40, TX25/TX40 and PZ2/TX40). This saves time and money.

Applications

Lighting
Motion detector
Letterbox
Signs
Clothes hook

Further specifications

Key features:

Special plug for external insulation composite systems
Direct fastening into the insulation material - no thermal bridge
No predrilling necessary due to sharp cutting tip; also drills reliably through hard ETICS plaster (≤ 7 mm)
Made of ageing and weather resistant nylon
Duo-Bit for IPL 60: One bit for plug and screw; saves installation time and money because no bit change is necessary.
Ideal also for metal profiles and strips
Temperature resistant from -40°C to +80°C
Complies with the Regulation of Thermal Installations of Buildings 1027/2007 (RITE)
