Insulation screw IPS 80T with countersunk head

Special insulation screw with trumpet head shape for direct fastening into external thermal insulation composite systems (ETICS) - fast and without thermal bridges

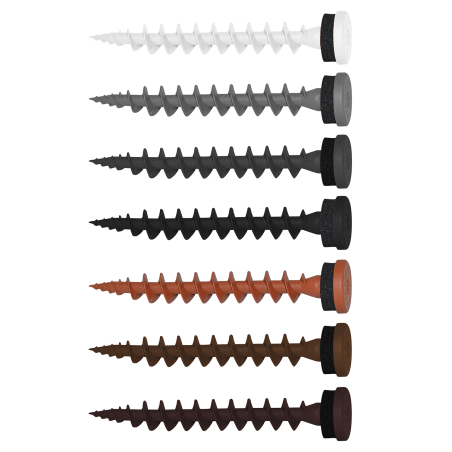

Product image of insulation screw IPS 80T

Product image of insulation plate screw IPS 80T with trumpet head and TX-Drive.

Product overview

Due to its shapely trumpet head (for flush countersinking), the IPS 80T is perfectly suitable for the connection of two insulation boards such as e.g. PU rigid foam boards, fastening of dimpled foils or for the sheathing/insulation of ventilation ducts.

Due to its shapely trumpet head (for flush countersinking), the IPS 80T is perfectly suitable for the connection of two insulation boards such as e.g. PU rigid foam boards, fastening of dimpled foils or for the sheathing/insulation of ventilation ducts.

The IPS 80T is also suitable for fixing smaller attachments in the insulation material, e.g. motion detectors, lighting, signs, etc. As with all IPS versions, the head hole can also be used for light fixings (using a Ø 3.5 mm screw). It joins the family of thermal-bridge-free fastening solutions.

Due to the sharp drill point, there is no need to pre-drill into plaster (up to 7 mm). The TX25 drive enables extremely fast installation.

The insulation screw is made of glass-fibre reinforced nylon and is therefore resistant to ageing, weathering and it is UV resistent.

Made in Germany, halogene free.

Show more

Download documents

List of references

Reference

d

J

GGR80IPST

Diameter [mm]

d

J

8

Length [mm]

d

J

80

Screw diameter [mm]

d

J

3.5

Colour

d

J

RAL 7045 - Telegrey

Clearance hole [mm]

d

J

8-10

Head type

d

J

Trumpet head

Head diameter [mm]

d

J

16

Packaging units

d

J

1500

Packaging type.

d

J

Carton

A

t

1 / 1 references

Applications

PU rigid foam boards
Fixing of dimpled membranes
Cladding/insulation of ventilation ducts
Motion sensor/detector
Lighting
Signs

Base materials

ETICS (External Thermal Insulation Composite System)
Styrofoam board
Hard foam board
Polystyrene board
Wood fibre insulation board

Other related products

How to install

Joining two insulation boards

Insert the screw to join two insulation boards

Screw in

Screw correctly installed in insulation boards

Fastening insulation foil

Insert the screw in insulation foil

Screw in

Screw correctly installed in insulation foil

Lightweight fastening with screw

Insert and screw in the insulation screw with countersunk head

Insulation screw correctly installed

Screw through

Insulation screw correctly installed

Useful tips

Innovative fixing solutions for efficient insulation - the complete assortment to avoid thermal bridges

Lamp, awning or rainwater downpipe? Polystyrene or wood fibre insulation? Check out the easy insulation fixings selector

How our insulation plugs are tested for driving rain tightness

This product prevents thermal bridges when installing on the insulated façade. Find out more >
