Insulation fixings by base material

Insulation fixings guide
Where do you want to fix or install?

Insulation materials

Insulation fixings guide
Where do you want to fix or install?

Direct fixing in insulation boards <20 kg

Direct fixing in insulation boards <20 kg

EPS polystyrene insulation board (Styrofoam)

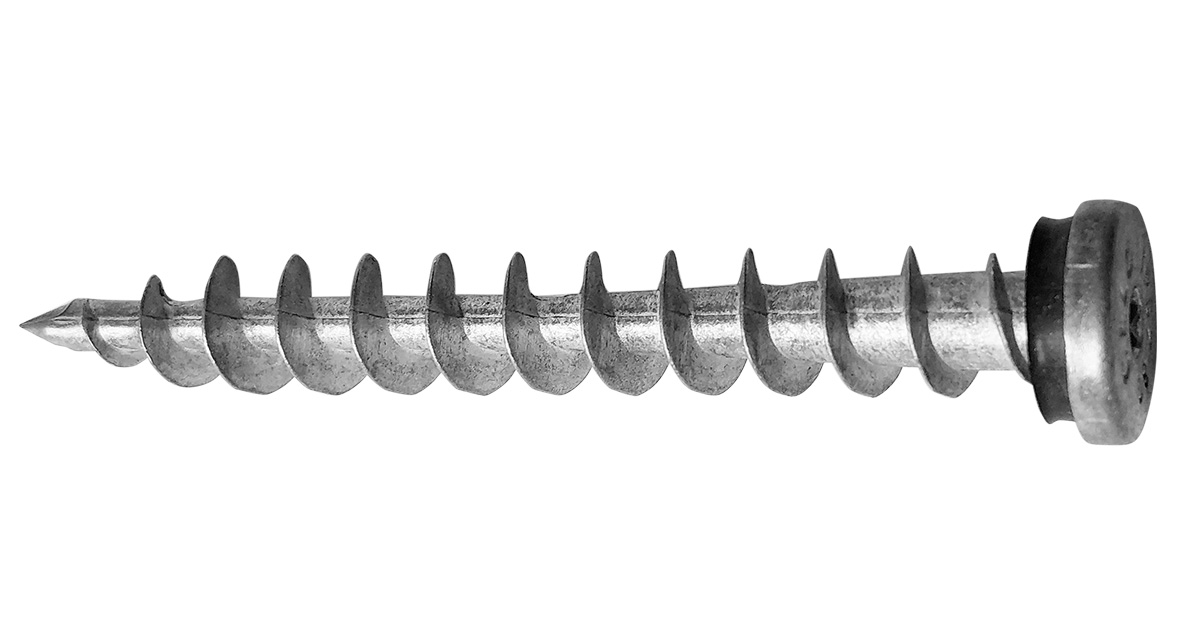

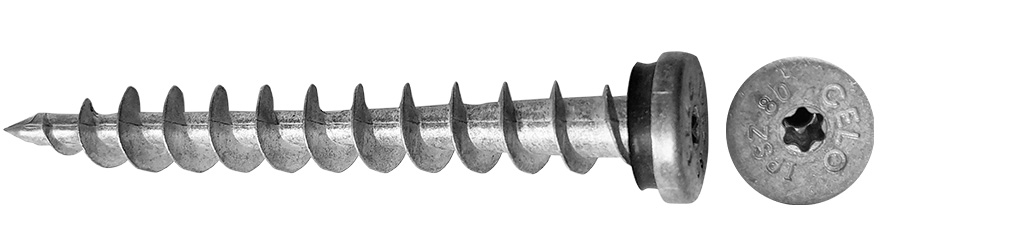

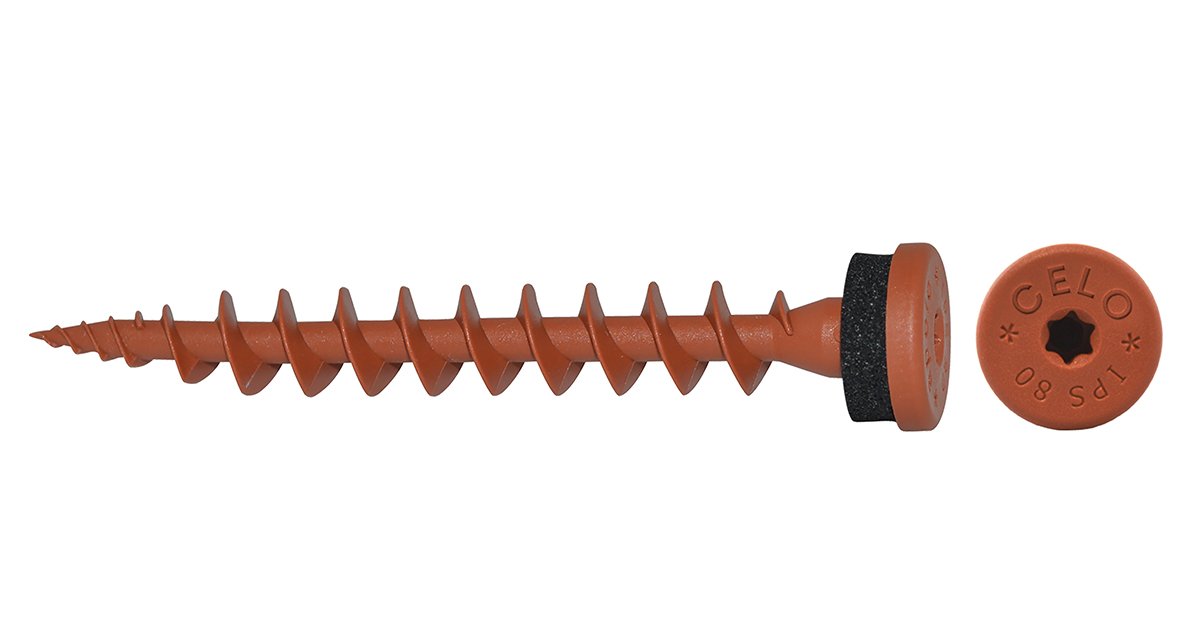

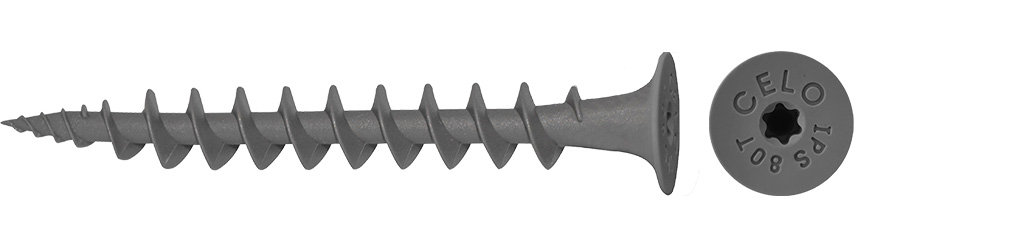

• IPS 80

6 kg

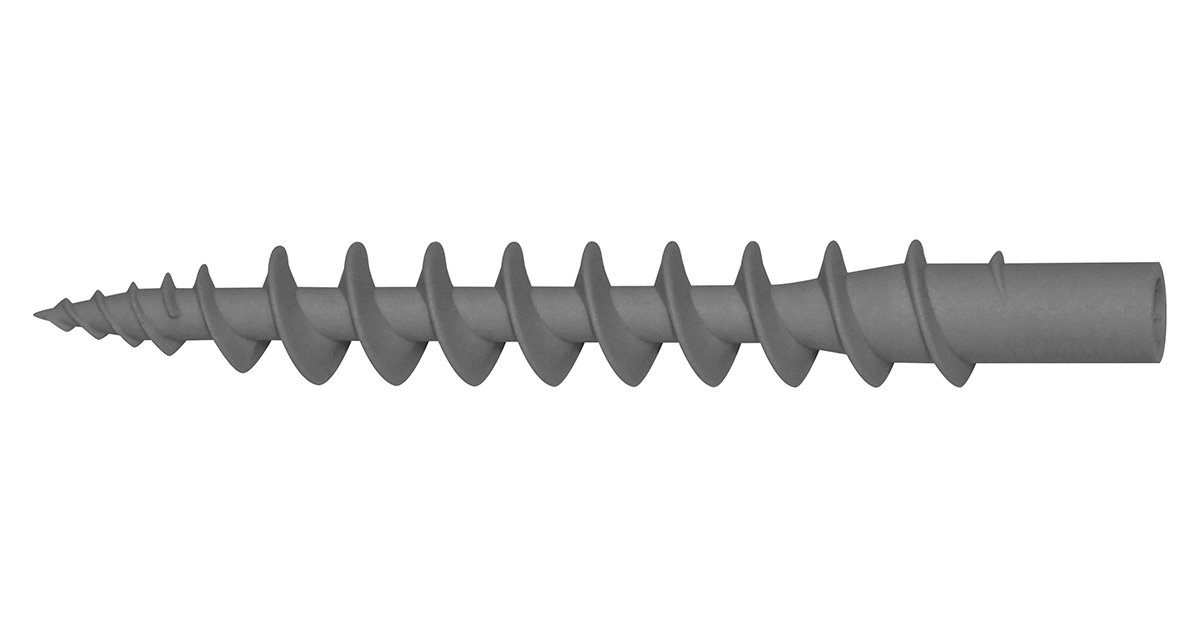

• IPSD 80

6 kg

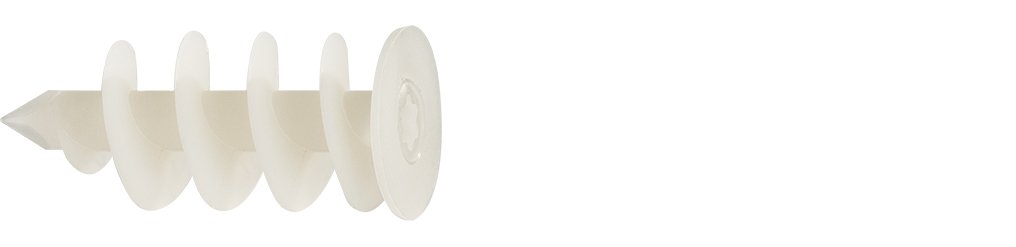

• IPL 60

7 kg

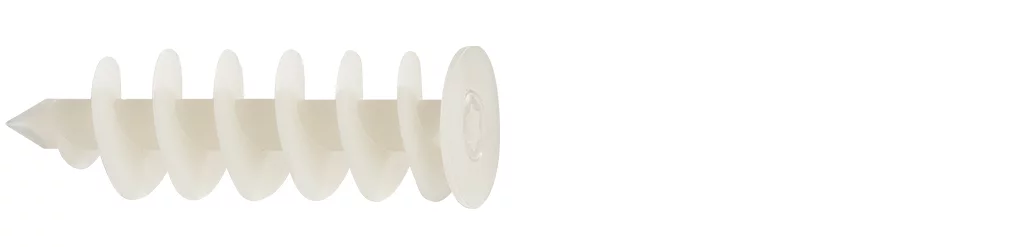

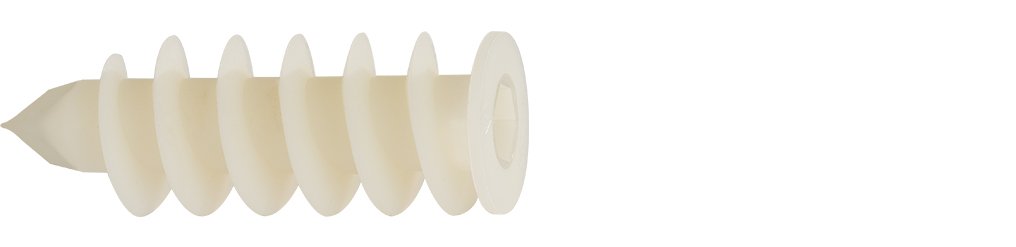

• IPL 95

14 kg

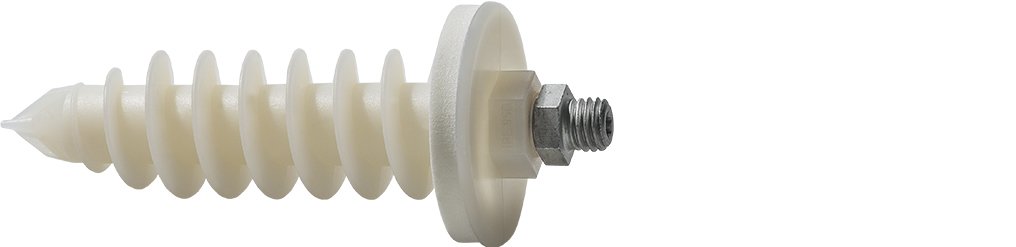

• IPL 95 DS

14 kg

XPS polystyrene insulation board (Styrodur, perimeter insulation)

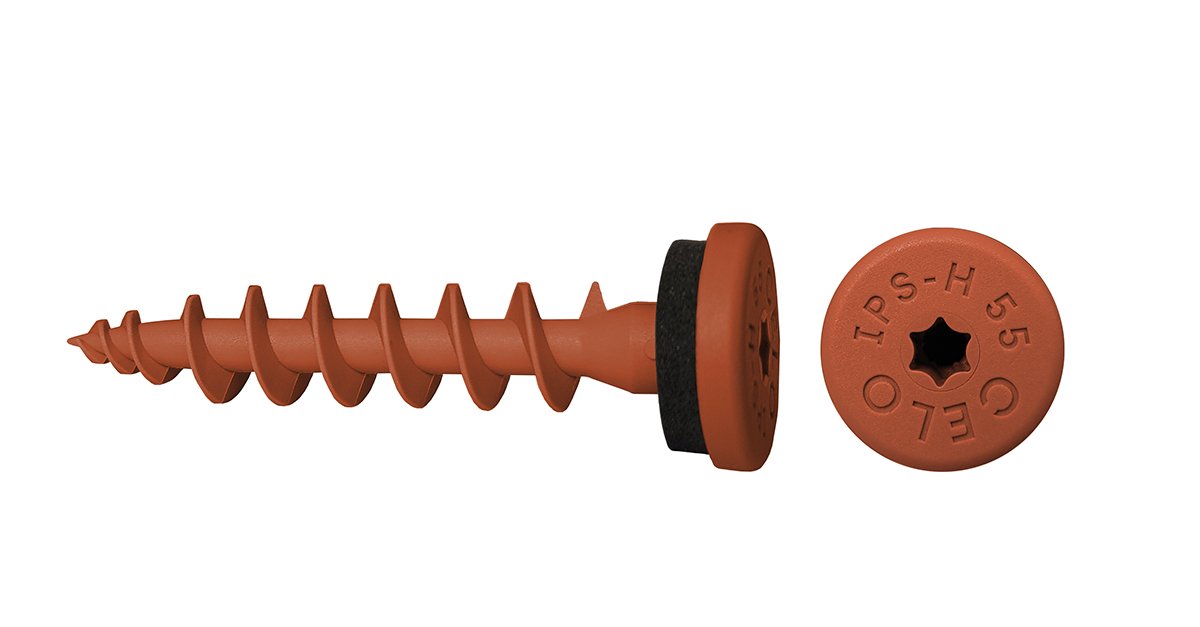

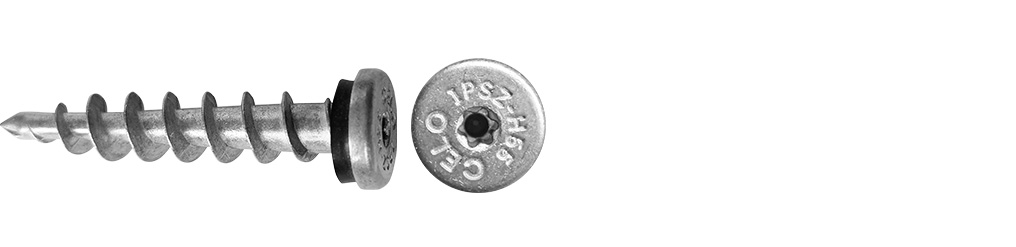

• IPS-H 55

7 kg

• IPSD-H 55

7 kg

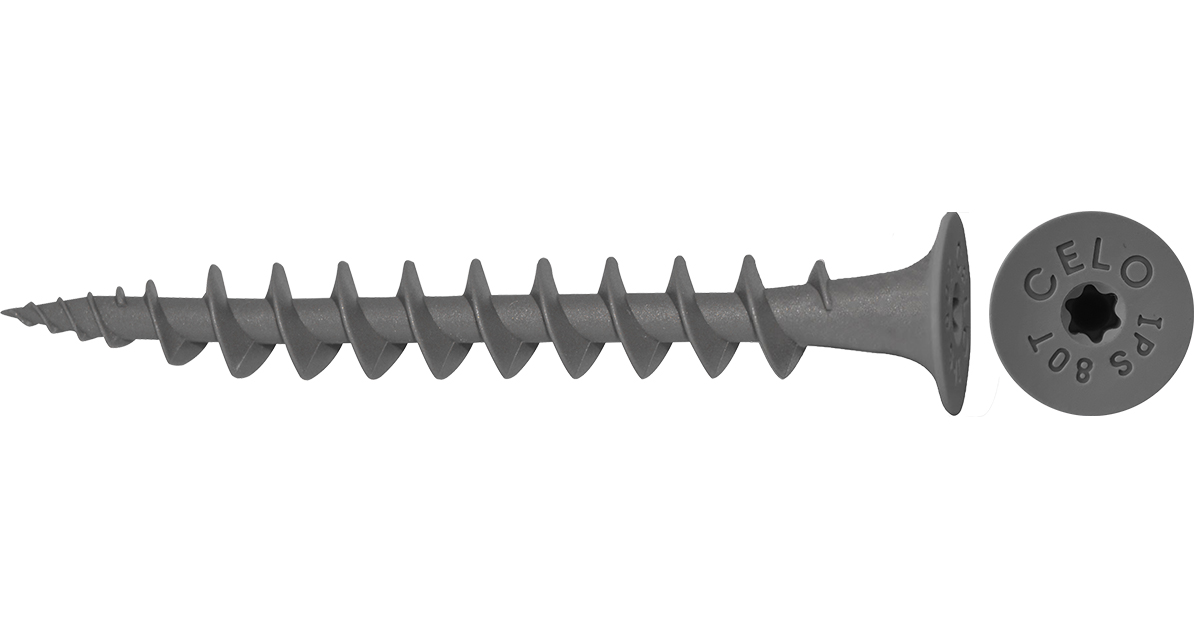

• IPS 80

9 kg

• IPSD 80

9 kg

• IPL 60

14 kg

• IPL 95

28 kg

• IPL 95 DS

28 kg

Mineral wool - Rockwool

• IPS 80

2 kg

• IPSD 80

2 kg

• IPL 60

4 kg

• IPL 95

5 kg

• IPL 95 DS

5 kg

Wood fibre insulation

• IPL 60

10 kg

• IPS-H 55

12 kg

• IPSD-H 55

12 kg

• IPL 95

20 kg

• IPL 95 DS

20 kg

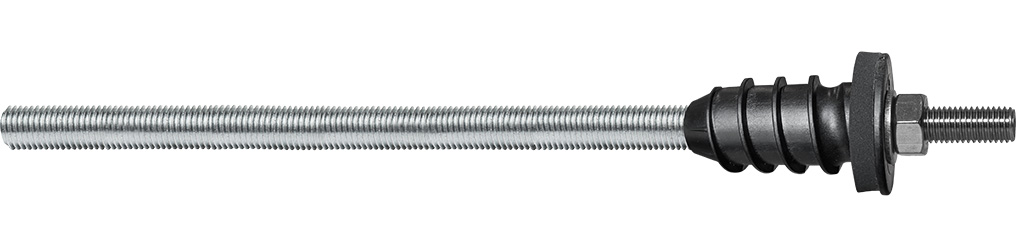

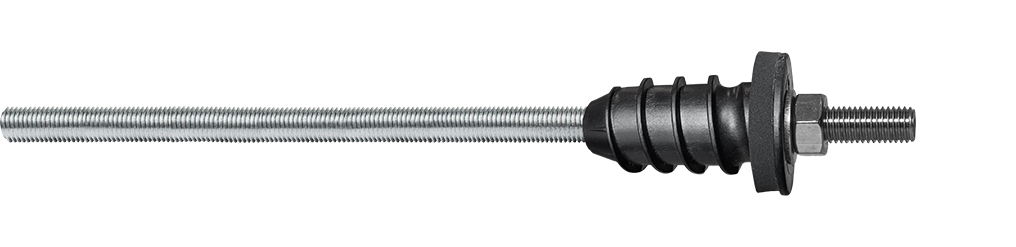

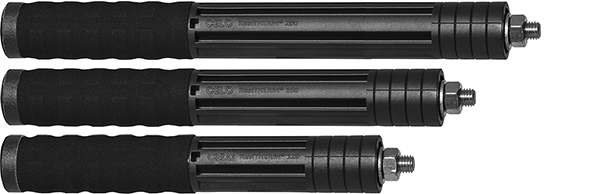

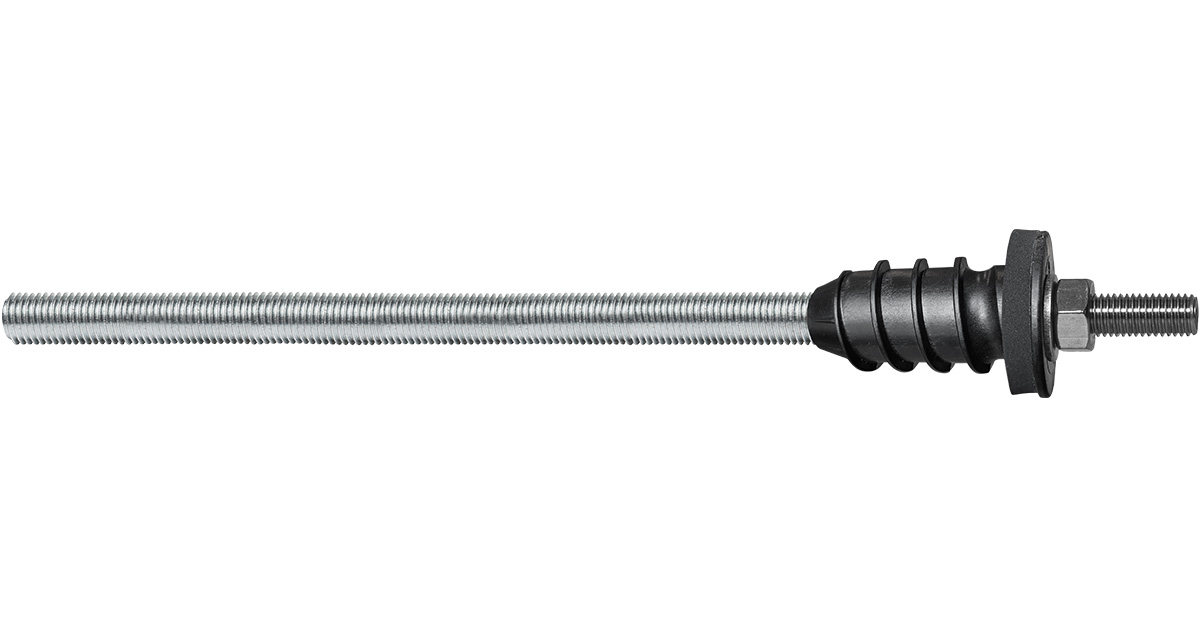

Distance mounting on insulated facades >20 kg

Distance mounting on insulated facades >20 kg

Hollow brick Hlz 12 + ETICS

(permissible tension load)

110 kg
110 kg
170 kg
170 kg
170 kg

Aerated concrete AAC2 + ETICS

(permissible tension load)

71kg
71 kg
120 kg
120 kg
120 kg

Aerated concrete AAC4 + ETICS

(permissible tension load)

179 kg
179 kg
210 kg
210 kg
210 kg

Concrete + ETICS

(permissible tension load)

524 kg
466 kg
370 kg
370 kg
370 kg
