Insulation plug IPL

Special plug for all light fastenings in ETICS

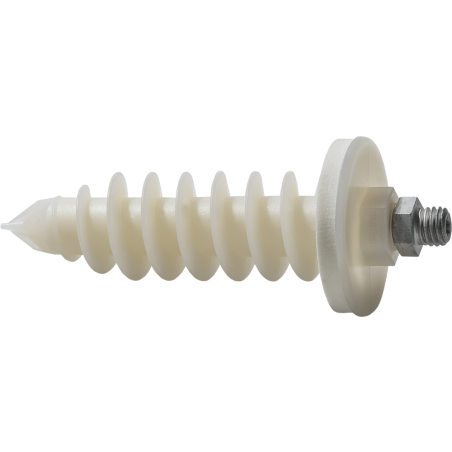

Product image of insulation screw IPL 95

Product overview

With the insulation plug IPL direct fastening into external insulation material is possible - without thermal bridge. It is therefore a perfect solution for fixing in thermal insulation composite systems, hard-foam boards, polystyrene boards and many other substrates. The IPL consists of ageing- and weather-resistant nylon, is temperature-resistant from -40 to +80 °C and, thanks to its sharp cutting tip, drills reliably through hard ETICS plaster (up to 7 mm) - without pre-drilling.

The insulation anchor IPL is available in two lengths:

The shorter IPL 60 with a head Ø 25 mm is ideal for light fixings such as small lamps, motion detectors and edge trim strips, which are fixed to the anchor with a chipboard screw Ø 4.5- 5.0 mm. Make the installation of the IPL 60 easier with the practical duo bit: no bit change is necessary during installation as one bit can be used to screw both the insulation plug into the insulation and the screw into the plug. The duo bit is available in three versions (TX20/TX40, TX25/TX40 and PZ2/TX40). This saves you time and money when installing with the energy-efficient IPL 60 insulation plugs.

The larger IPL 95 with head Ø 32 mm is ideal for larger lamps and letterboxes, but is also suitable for fixing rainwater downpipesin combination with a hanger bolt. A metric M8 x 30 screw is included as a setting tool for quick and easy installation. This hex-head screw can be tightened with the thread first in the screw driver and the head fits perfectly into the SW13 drive of the plug, which can thus be screwed in easily and quickly. You will find this hexagon-metric screw as a mounting aid not only in the box, but included in the small blister packaging of IPL 95 as well. To fasten attachments to the IPL95, select an 8 or 10 mm diameter screw or an M8 metric screw.

Download documents

View videos

List of references

Filters

Reference

Packaging units

Packaging type.

Sort by

Column

Sort direction

Reference

960IPL

995IPL

560IPL4

560IPLPZ4

595IPL2

Diameter [mm]

Length [mm]

Plug length [mm]

Recess type

TX40

SW13

TX40

SW13

Screw diameter [mm]

4.5-5

8-10

4.5-5

4.5

8-10

Insertion depth [mm]

30-50

40-80

30-50

40-80

Head diameter [mm]

Packaging units

Packaging type.

Box

Blister

5 / 5 references are shown

Applications

Lights / Lamps
Motion detector
Letterbox
Clothes hook
Signs

Further specifications

Key features:

Special screw for direct fastening into external thermal insulation composite systems (ETICS) - extremely fast and without thermal bridges!
Direct fastening into the insulation material - no thermal bridge
No predrilling necessary due to sharp cutting tip; also drills reliably through hard ETICS plaster (≤ 7 mm)
Made of robust glass-fibre reinforced nylon
Ideal also for metal profiles and strips
Duo-Bit for IPL 60: One bit for plug and screw; saves installation time and money because no bit change is necessary.
Complies with the Regulation of Thermal Installations of Buildings 1027/2007 (RITE)
