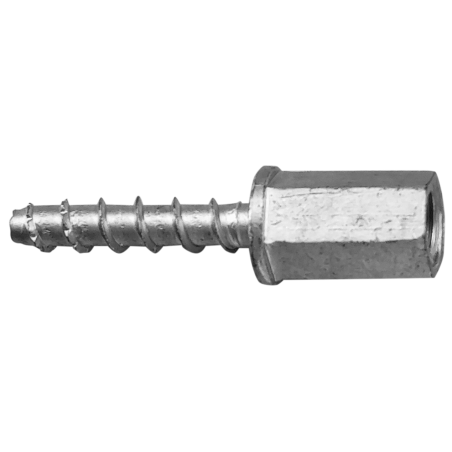

Concrete screw BTS6 H with internal thread

Quick mounting of suspensions on concrete ceilings
Product image of concrete screw BTS with hex head with internal thread
Product image of concrete screw BTS with hex head with internal thread
Technical drawing of concrete screw BTS6
Mounting image BTS6 1
Mounting image BTS6 2
Mounting image BTS6 3
Mounting image BTS6 4
Mounting image BTS6 5
Mounting image BTS6 6
Mounting image BTS6 7
Product overview

The concrete screw BTS6 H with internal thread is approved for multiple use for non-structural applications in cracked concrete as well as in precast concrete hollow core slabs. Head type H is characterised by a high hex-head with integral washer and an internal thread with a length of 10-15 mm.

Show more
List of references
Filters
Reference
9ZG635M6BTSH
9ZG635M8BTSH
9ZG635M10BTSH
9ZG650M8BTSH
9ZG66538BTSHDB
Close
Head diameter [mm]
14
17
Close
Drill hole depth [mm]
40
55
70
Close
Anchorage depth [mm]
35
50
65
Close
Packaging units
150
100
Close
Sort by
Column
Reference
Head diameter [mm]
Drill hole diameter [mm]
Drill hole depth [mm]
Anchorage depth [mm]
Head type
Material
Coating
Packaging units
Packaging type.
Close
Sort direction
Ascending
Descending
Close
Reference
9ZG635M6BTSH
9ZG635M8BTSH
9ZG635M10BTSH
9ZG650M8BTSH
9ZG66538BTSHDB
Head diameter [mm]
14
14
17
14
14
Drill hole diameter [mm]
6
6
6
6
6
Drill hole depth [mm]
40
40
40
55
70
Anchorage depth [mm]
35
35
35
50
65
Head type
Hex-head Internal thread
Hex-head Internal thread
Hex-head Internal thread
Hex-head Internal thread
Hex-head Internal thread
Material
Steel
Steel
Steel
Steel
Steel
Coating
Zinc flake coated
Zinc flake coated
Zinc flake coated
Zinc flake coated
Zinc flake coated
Packaging units
150
100
100
100
100
Packaging type.
Box
Box
Box
Box
Box
5 / 5 references are shown
Applications
  • Fastening rails
  • Metal profiles
  • Handrail
  • Lampposts
  • Support profiles
Further specifications

Key features:

  • ETA approved for multiple use for non-structural applications in cracked concrete
  • ETA approved for multiple use for non-structural applications in precast concrete hollow core slabs
  • Very fast method for fixing fastening rails
  • Quick installation in two steps: First the clip is fixed to the pipe and after that is nailed in
  • Different heads for various applications
  • Short lengths reduce risk of hitting rebars
  • The BTS is also ideal for temporary fixings as it can be removed completely
  • Zinc flake coating (ZnAl) for improved corrosion resistance and higher application security
  • Hex-head screw with internal thread
  • Complies with the Regulation of Thermal Installations of Buildings 1027/2007 (RITE)

Base materials:

  • Concrete
  • Precast prestressed hollow core slabs
  • Dense natural stone
