Concrete screw BTS6 E with connecting thread

Quick mounting of clamps to concrete

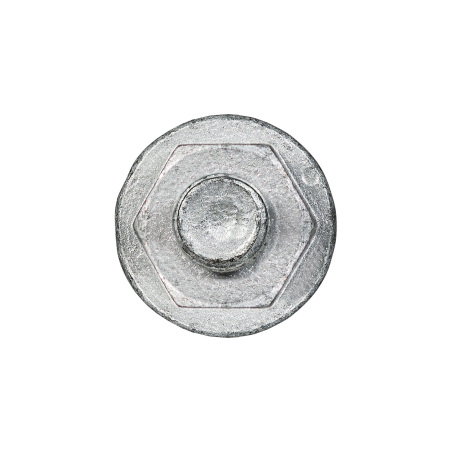

Product image of concrete screw BTS 6 E with hex head with connecting thread
Product image of concrete screw BTS 6 E long with hex head with connecting thread
Mounting image BTS6 1
Mounting image BTS6 2
Mounting image BTS6 3
Mounting image BTS6 4
Mounting image BTS6 5
Mounting image BTS6 6
Mounting image BTS6 7
Product overview

The concrete screw BTS6 E with connecting thread is approved for multiple use for non-structural applications in cracked concrete. The head type E is characterised by a hex-head with integral washer (Ø 14 mm) and a practical connecting thread with a length of 5 respectively 15 mm.

Show more
Download documents
View videos
List of references
Filters
Reference
9ZG635M6BTSE
9ZG635M8BTSE
9ZG6135M6BTSE
9ZG6155M6BTSE
9ZG6175M6BTSE
9ZG6195M6BTSE
Close
Drill hole diameter [mm]
6
Close
Drill hole depth [mm]
40
40/55
Close
Anchorage depth [mm]
35
35/50
Close
Connecting thread
M6
M8
Close
Screw diameter [mm]
7.5
Close
Screw length [mm]
35
135
155
175
195
Close
Head type
Hex-head with connecting thread
Nut M8x14
Close
Packaging units
150
100
50
Close
Packaging type
Box
Close
Sort by
Column
Reference
Drill hole diameter [mm]
Drill hole depth [mm]
Anchorage depth [mm]
Connecting thread
Screw diameter [mm]
Screw length [mm]
Head type
Packaging units
Packaging type
Close
Sort direction
Ascending
Descending
Close
Reference
9ZG635M6BTSE
9ZG635M8BTSE
9ZG6135M6BTSE
9ZG6155M6BTSE
9ZG6175M6BTSE
9ZG6195M6BTSE
Drill hole diameter [mm]
6
6
6
6
6
6
Drill hole depth [mm]
40
40
40/55
40/55
40/55
40/55
Anchorage depth [mm]
35
35
35/50
35/50
35/50
35/50
Connecting thread
M6
M8
M6
M6
M6
M6
Screw diameter [mm]
7.5
7.5
7.5
7.5
7.5
7.5
Screw length [mm]
35
35
135
155
175
195
Head type
Hex-head with connecting thread
Nut M8x14
Hex-head with connecting thread
Hex-head with connecting thread
Hex-head with connecting thread
Hex-head with connecting thread
Packaging units
150
100
50
50
50
50
Packaging type
Box
Box
Box
Box
Box
Box
6 / 6 references are shown
Applications
  • Fastening rails
  • Metal profiles
  • Handrail
  • Lampposts
  • Support profiles
Further specifications

Key features:

  • ETA approved for multiple use for non-structural applications in cracked concrete
  • Very fast method for fixing fastening rails
  • Compatible with BTS 6 accessories for a faster installation with 1 tool.
  • Different heads for various applications
  • Two setting depths
  • Short lengths reduce risk of hitting rebars
  • Zinc flake coating (ZnAl) for improved corrosion resistance and higher application security
  • Hex-head screw with connecting thread
  • The BTS is also ideal for temporary fixings as it can be removed completely
  • Complies with the Regulation of Thermal Installations of Buildings 1027/2007 (RITE)

Base materials:

  • Concrete
  • Precast prestressed hollow core slabs
  • Dense natural stone
