Concrete screw BTS6 H with double internal thread M8 & M10

Quick mounting of suspensions on concrete ceilings

Concrete screw BTS6 H with double internal thread M8 & M10

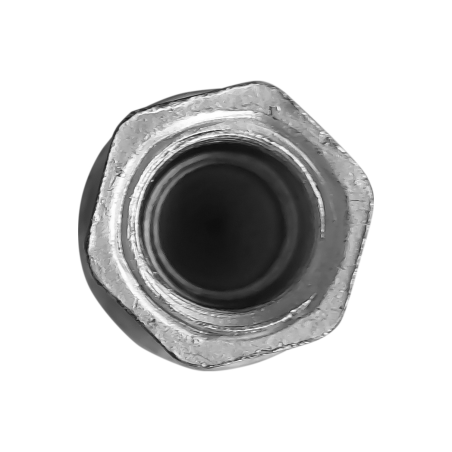

Product image of zinc flake coated concrete screw BTS 6 H with hex head with double internal thread M8 / M10 - detailed image of head

Product overview

The BTS6 H concrete screw made of steel with zinc flake coating and a double internal thread M8 & M10 enables quick fixing of pipe trays, single pipe suspensions and suspended mounting rails for building services. The short anchor length and low drilling effort save you time with multiple fixings. The head type H is characterised by a high hexagonal head with integrated washer and a two-stage internal thread of 18 mm for flexible suspension of clamps or threaded rods.

The European Technical Assessment ETA for cracked and non-cracked concrete (for multiple use for non-structural applications) and the fire resistance class R 120 guarantee additional safety for the user. The concrete screw is also approved for fastening to precast prestressed concrete hollow core slabs, may be used for fixing fire extinguishing pipe systems and complies with the VdS guidelines.

It is a very fast solution for fixing fastening rails and more, as the special accessories allow assembling in just two steps: drilling and fixing with the same tool. The special adapter and socket wrench can be easily put over the drill bit and that way, all BTS 6 can be mounted in almost no time.

Short lengths minimise the risk of hitting reinforcing bars during installation with the screw anchor. The zinc flake coating ensures high corrosion resistance.

Different head shapes (hex head, pan-head Ø 14.5 mm, pan-head large Ø 19 mm, and hex-head with connecting thread or with internal thread) enable various applications. - View all different concrete screws.

Download documents

View videos

List of references

Filters

Plug length [mm]

Drill hole depth [mm]

Reference

9ZG635M810BTSH

9ZG650M810BTSH

Diameter [mm]

7.5

Length [mm]

Screw diameter [mm]

7.5

Plug length [mm]

Head diameter [mm]

Drill hole diameter [mm]

Drill hole depth [mm]

Packaging units

100

Packaging type.

Box

2 / 2 references

Applications

Fastening rails
Metal profiles
Handrail
Support profiles
Cable trays
Suspended installations

Further specifications

Key features:

ETA approved for multiple use for non-structural applications in cracked concrete
ETA approved for multiple use for non-structural applications in precast concrete hollow core slabs
Very fast method for fixing fastening rails
Quick installation in two steps: First the clip is fixed to the pipe and after that is nailed in
Short lengths reduce risk of hitting rebars
The BTS is also ideal for temporary fixings as it can be removed completely
Zinc flake coating (ZnAl) for improved corrosion resistance and higher application security
Hex-head screw with internal thread
Complies with the Regulation of Thermal Installations of Buildings 1027/2007 (RITE)
