Concrete screw BTS6 B with hex-head

Quick installation of metal profiles and railings to concrete

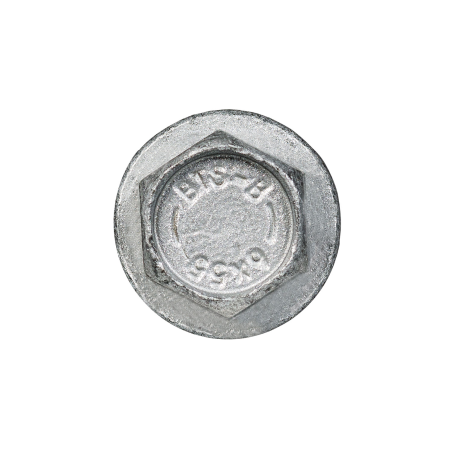

Product image of concrete screw BTS 6 B with hex head
Product image of concrete screw BTS 6 B with hex head
Product overview

The concrete screw BTS6 B with hex-head is approved for multiple use for non-structural applications in cracked concrete as well as in precast concrete hollow core slabs. Head type B is characterised by a hex-head with integral washer (Ø 14 mm).

Show more
Download documents
View videos
List of references
Filters
Drill hole depth [mm]
40
55
Close
Anchorage depth [mm]
35
50
Close
Thickness of fixture [mm]
5
20
Close
Reference
d
J
9ZG640BTSB
9ZG655BTSB
Diameter [mm]
d
J
7.5
7.5
Length [mm]
d
J
40
55
Screw diameter [mm]
d
J
7.5
7.5
Drill hole diameter [mm]
d
J
6
6
Drill hole depth [mm]
d
J
40
40/55
Anchorage depth [mm]
d
J
35
35/50
Thickness of fixture [mm]
d
J
5
20/5
Head diameter [mm]
d
J
14
14
Packaging units
d
J
150
100
Packaging type.
d
J
Box
Box
A
t
2 / 2 references
Applications
  • Fastening rails
  • Metal profiles
  • Handrail
  • Lampposts
  • Support profiles
Further specifications

Key features:

  • ETA approved for multiple use for non-structural applications in cracked concrete
  • ETA approved for multiple use for non-structural applications in precast concrete hollow core slabs
  • Short length reduces risk of hitting rebar
Base materials
eta
Suitable materials with approvals
Concrete
Concrete
Precast prestressed hollow core slabs
Precast prestressed hollow core slabs
Other suitable materials
Dense natural stone
Dense natural stone
Other related products
How to install

Mounting

Drilling and dusting
Insert concrete screw
Screwing in the concrete screw
Concrete screw fully installed

Adaptor for BTS6 with hexagon head

Adaptor is fixed to the drill bit at one end
Adaptor is fixed to the socket wrench at the other end
One assembled, the screw can be fixed
Useful tips
