Multifunction frame plug MFR FB SSKS

Ideal for metal construction

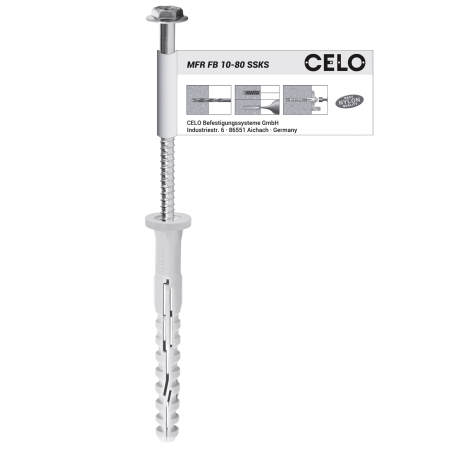

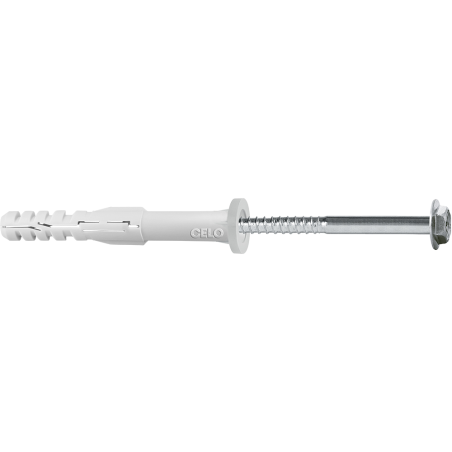

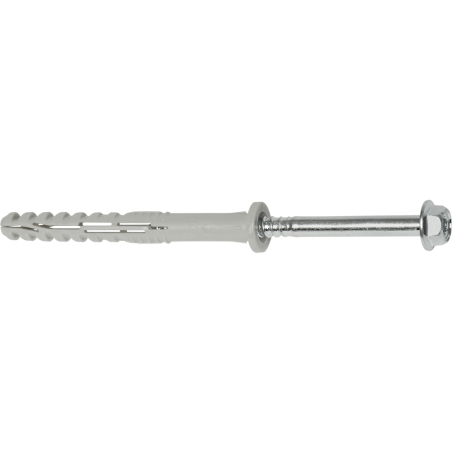

Multifunction frame plug MFR FB SSKS
Product overview

The multifunction frame plug MFR FB SSKS with flat rim head and hex-head screw with integral washer is your ideal solution for universal mounting of facade substructures as well as wood and metal parts such as Air conditioner support brackets. As confirmed by the ETA assessment for concrete and masonry the MFR is approved for all common base materials like concrete, solid brick, perforated brick, aerated concrete and even for precast prestressed hollow core slabs.

Show more
Download documents
View videos
List of references
Filters
Drill hole diameter [mm]
8
10
14
Close
Drill hole depth [mm]
60
60/80
85
Close
Anchorage depth [mm]
50
50/70
70
Close
Plug length [mm]
60
80
100
115
135
110
140
Close
Thickness of fixture [mm]
10
30
30/10
50/30
65/45
85/65
40
70
Close
Packaging type.
Box
Blister
Close
Reference
d
J
9860MFRFB
9880MFRFB
91060MFRFB
91080MFRFB
910100MFRFB
910115MFRFB
910135MFRFB
91480MFRFB
914110MFRFB
914140MFRFB
9X860MFRFB
9X880MFRFB
9X1060MFRFB
9X1080MFRFB
9X10100MFRFB
9X10115MFRFB
9X10135MFRFB
5880MFRFB4
51060MFRFB4
Diameter [mm]
d
J
8
8
10
10
10
10
10
14
14
14
8
8
10
10
10
10
10
8
10
Length [mm]
d
J
60
80
60
80
100
115
135
80
110
140
60
80
60
80
100
115
135
80
60
Drill hole diameter [mm]
d
J
8
8
10
10
10
10
10
14
14
14
8
8
10
10
10
10
10
8
10
Drill hole depth [mm]
d
J
60
60
60
60/80
60/80
60/80
60/80
85
85
85
60
60
60
60/80
60/80
60/80
60/80
60
60
Anchorage depth [mm]
d
J
50
50
50
50/70
50/70
50/70
50/70
70
70
70
50
50
50
50/70
50/70
50/70
50/70
50
50
Plug length [mm]
d
J
60
80
60
80
100
115
135
80
110
140
60
80
60
80
100
115
135
80
60
Thickness of fixture [mm]
d
J
10
30
10
30/10
50/30
65/45
85/65
10
40
70
10
30
10
30/10
50/30
65/45
85/65
30
10
Packaging units
d
J
100
100
50
50
50
50
50
25
25
25
100
100
50
50
50
50
50
4
4
Packaging type.
d
J
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Blister
Blister
A
t
19 / 19 references
Applications
  • Facade substructures made of wood and metal
  • Window and door frame fixings
  • Fire protection doors
  • Metal brackets, rails
  • Air conditioner
  • Consoles
  • Wall cabinets
  • Panels
  • Square timber
  • Handrail
  • Doors
  • Paintings
Further specifications

Key features:

  • The universal frame plug for mounting facade substructures as well as wood and metal parts in all common base materials
  • The long expansion area and early expansion achieved by lateral bars ensure reliable and secure hold
  • Small setting depth of 50 mm saves time and costs
  • Screw and plug are pre-assembled
  • The ETA approval guarantees a secure fixing in many building materials
  • Approved by company Hörmann for fire protection doors
  • High quality and ageing resistant nylon
  • Temperature resistant from -40°C to +80°C
Base materials
eta
Suitable materials with approvals
Concrete
Concrete
Hollow brick
Hollow brick
Aerated concrete
Aerated concrete
Precast prestressed hollow core slabs
Precast prestressed hollow core slabs
Solid brick
Solid brick
Solid sand-lime brick
Solid sand-lime brick
Hollow sand-lime block
Hollow sand-lime block
Other suitable materials
Natural stone
Natural stone
