ProtectFIX Window support metal bracket

Tested window installation system for fall protection and burglar resistance

Product image of window protection ProtectFIX

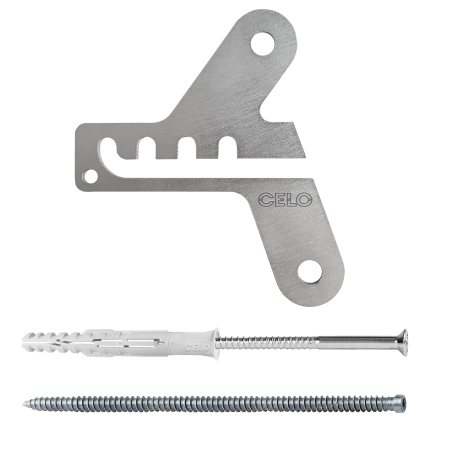

Product image of window protection ProtectFIX with multifunction frame plug MFR and window frame screw FBS

Product overview

The first retrofittable system on the market for fall and burglary protection of windows and doors.

The ProtectFIX is a tested window installation system for fall protection according to ETB guidelines and tested according to burglar resistance class RC2. It is even suitable for base materials with a compressive strength of < 12, min. Poroton brick T8 or aerated concrete PP2.

It is suitable for small edge distances because you only need 35 mm distance from the edge to the window frame screw. The 3 mm material thickness ensures an easy installation with sealing tape and there is no pressure-resistant backfilling necessary. This means that fewer working steps are required than with a traditionally secured window.

The ProtectFIX set contains everything you need for quick and easy installation:

6 ProtectFIX window support metal brackets, 12 MFR SB 10-80 multifunction frame plugs with TX drive perfectly tailored to match ProtectFIX, and 6 FBS-Z 7,5 window frame screws with a cylinder head.

Download documents

View videos

List of references

Filters

Packaging type.

Reference

G117PF

117PF152FBSZ6

117PF212FBSZ6

Length [mm]

117

Sheet thickness [mm]

Clearance hole [mm]

11.3

Packaging units

100

Packaging type.

Box

Foil bag

3 / 3 references

Applications

Window and door frame fixings

Further specifications

Key features:

Also suitable for small edge distance; 35 mm distance to the window frame screw
Tested window installation system for fall protection according to ETB guideline and tested according burglar resistance class RC2
