Blister Multifunction frame plug MFR FB SSKS

The flexible frame plug for facade substructures, approved for all common base materials

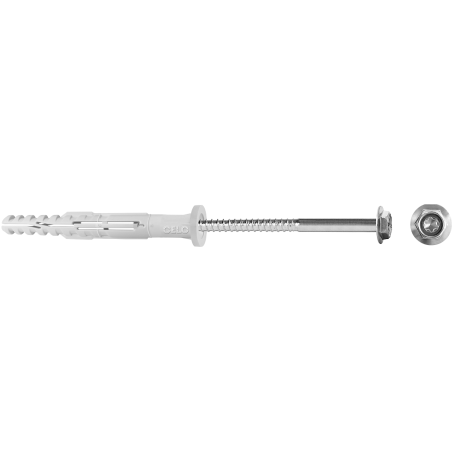

Product image of blister MFR 10-60 flat rim plug with hex-head screw with integral washer
Blister Multifunction frame plug MFR FB SSKS

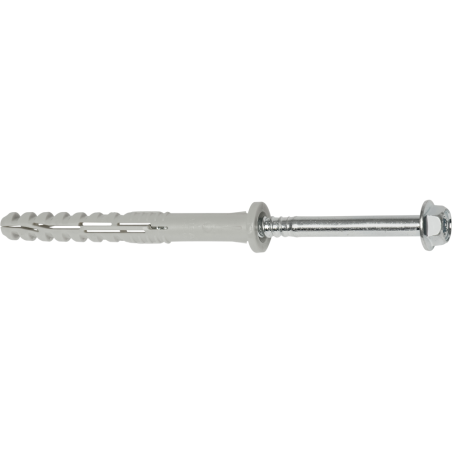

Product image of multifunction frame plug MFR 8 flat rim plug with hex head screw with integral washer, zinc plated
Mounting image MFR FB SSKS 1
Mounting image MFR FB SSKS 2
Mounting image MFR FB SSKS 3
Mounting image MFR FB SSKS 4
Technical drawing of multifunctional frame plug MFR
Product overview

The multifunction frame plug MFR FB SSKS is your ideal solution for universal mounting of facade substructures as well as wood and metal parts. As confirmed by the ETA assessment for concrete and masonry the MFR is approved for all common base materials like concrete, solid brick, perforated brick, aerated concrete and even for precast prestressed hollow core slabs.

Show more
List of references
Filters
Reference
5880MFRFB4
51060MFRFB4
Close
Drill hole diameter [mm]
8
10
Close
Drill hole depth [mm]
60
Close
Anchorage depth [mm]
50
Close
Plug length [mm]
80
60
Close
Thickness of fixture [mm]
30
10
Close
Packaging units
4
Close
Packaging type
Blister
Close
Sort by
Column
Reference
Drill hole diameter [mm]
Drill hole depth [mm]
Anchorage depth [mm]
Plug length [mm]
Thickness of fixture [mm]
Packaging units
Packaging type
Close
Sort direction
Ascending
Descending
Close
Reference
5880MFRFB4
51060MFRFB4
Length
80
60
Diameter
8
10
Drill hole diameter [mm]
8
10
Drill hole depth [mm]
60
60
Anchorage depth [mm]
50
50
Plug length [mm]
80
60
Thickness of fixture [mm]
30
10
Packaging units
4
4
Packaging type
Blister
Blister
2 / 2 references are shown
Applications
  • Facade substructures made of wood and metal
  • Window and door frame fixings
  • Fire protection doors
  • Metal brackets, rails
  • Consoles
  • Wall cabinets
  • Panels
  • Square timber
  • Handrail
  • Doors
  • Paintings
Further specifications

Key features:

  • The universal frame plug for mounting facade substructures as well as wood and metal parts in all common base materials
  • The long expansion area and early expansion achieved by lateral bars ensure reliable and secure hold
  • Screw and plug are pre-assembled
  • The ETA approval guarantees a secure fixing in many building materials
  • Approved by company Hörmann for fire protection doors
  • High quality and ageing resistant nylon
  • Temperature resistant from -40°C to +80°C

Base materials:

  • Concrete
  • Natural stone
  • Solid brick
  • Solid sand-lime brick
  • Lightweight solid concrete block
  • Aerated concrete
  • Hollow brick
  • Hollow sand-lime block
  • Lightweight hollow concrete block
  • Precast prestressed hollow core slabs
