ResiTHERM® 12

Distance mounting system for insulated façades – ETA-approved and driving rain tight for heavy loads

Product Image ResiTHERM® 12 Distance Mounting System

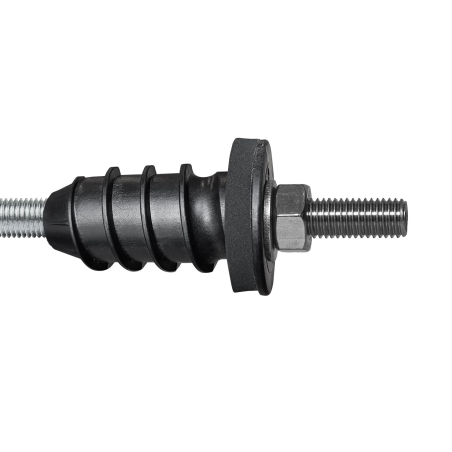

Product Image Thermal Separation Module ResiTHERM® 12

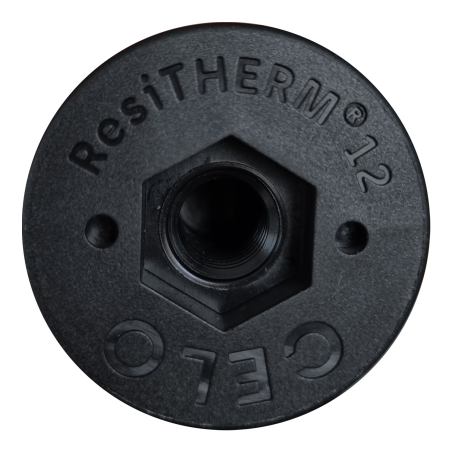

Product Image Thermal Module ResiTHERM® 12

Product overview

ResiTHERM® 12 makes the difference! The innovative product is fast, driving rain tight, thermally separated, corrosion-resistant, ETA-approved and Made in Germany. The perfect solution for mounting heavy loads to insulated façades without thermal bridges!

One product for all insulation types and thicknesses, e.g., bridging insulation thicknesses from 60-220 mm when anchoring in insulated façades made of concrete, from 60-190 mm in aerated concrete and solid brick and 60-160 mm when the insulated wall consists of perforated bricks, thus allowing for high application flexibility.

It also works in other base materials and for a wide range of applications such as awnings, canopies, French balconies, satellite dishes, air-conditioning units and much more.

The black thermal separation module eliminates heat bridges efficiently and protects against mould and heat loss. It's pre-assembled, weather resistant EPDM sealing ensures safe sealing against driving rain up to wind force 11(violent storm) and up to 3 mm displacement, tested for watertightness based on DIN EN 1027.

Discover the time and cost savings due to simple and quick installation while ensuring the highest quality:

No risk of corrosion due to high steel quality 8.8, attachment parts made of stainless steel A4 and glass-fibre reinforced nylon, which is characterised by ageing, weather and UV resistance.

The possibility of subsequent adjustment of the screw-in depth of the M12 threaded stud as well as the M16 threaded rod allows adjustment to the individual installation situation.

ResiTHERM® 12 is available in two versions: zinc-plated or A4.

While the external attachment parts M12 are always made of A4 stainless steel, the variants differ for the M12 threaded rod in the wall. For one variant this threaded rod is galvanised, for the other, it consists of A4 stainless steel.

Each variant is available in 2 or 20 pieces.

Find the correct product for you with our ResiTHERM® overview - Discover the full distance mounting system range.

Download documents

View videos

List of references

Filters

Material

Reference

9160RTH122

9160RTH1220

9X160RTH122

9X160RTH1220

Plug length [mm]

295

Suited insulation thickness [mm]

60-220

Material

Steel

Stainless steel A4

Drill hole depth [mm]

80/110/140+e

Drill hole diameter [mm]

14/20

Eff. Anchorage depth [mm]

70/100/130

Thread

M12

Packaging units

Packaging type.

Box

Applications

Canopies
Air conditioner
Satellite dishes
Extension structures
Sun protection sails
Window bars
Outdoor chimneys
Shutter holders
Rainwater downpipes
Solar panel installations

Further specifications

Key features:

Time and cost savings due to simple and quick installation
Reliable, durable, ETA-tested fixing

Thermal separation module eliminates heat bridges efficiently and protects against mould and heat loss
Weather-resistant EPDM rubber ensures safe sealing against driving rain up to wind force 11
Conforms to the technical requirements for thermal installations for buildings 1027/2007 (RITE)
