How to save time with distance mounting

Zeit sparen bei der Abstandsmontage

in 4 Punkten

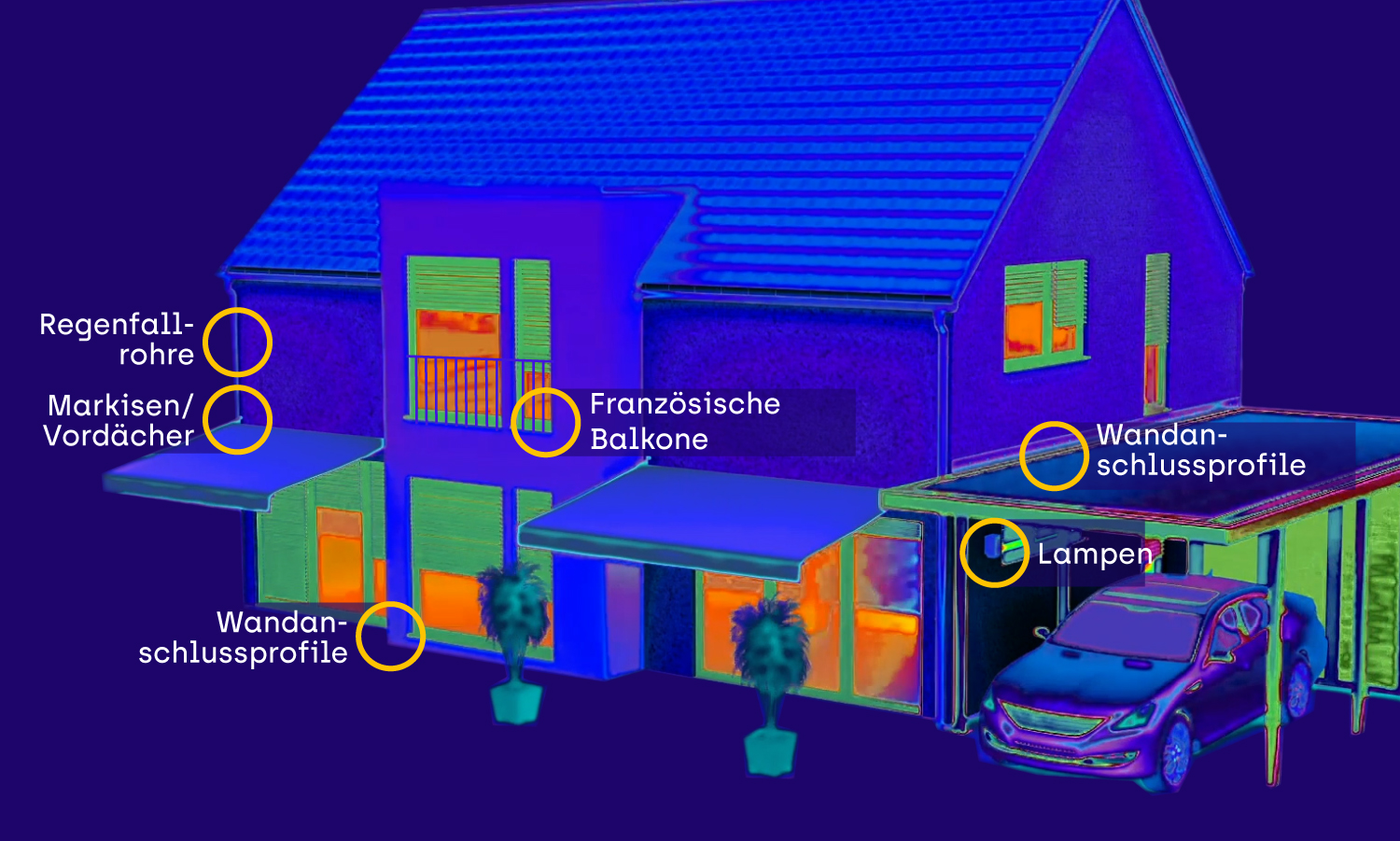

How to connect the external insulation without a thermal bridge

ResiTHERM® compared to other systems

AT A GLANCE

  • ResiTHERM® is the first ETA-approved and driving rain-tight heavy-duty mounting system for insulated facades!
  • Universally applicable for almost all types of insulation and substrates
  • Heavy loads such as awnings, sun sails, satellite dishes, French balconies and much more. attach quickly and securely
  • The ideal solution in steel and metal construction or building construction, in the HVAC sector, for plumbers, roofers, electricians, facade builders, window builders and awning builders
  • Premium product (Designed and Made in Germany)
  • Honoured with the German Design Award 2023 for excellent product design

Save time with these 4 points

1. Pre-assembled

The correct coordination of the product components is of crucial importance for safety-relevant attachments such as canopies or sun sails! Therefore, ResiTHERM® 16 is pre-assembled. This ensures that the product is set up correctly and you do not lose any time assembling it.

vorher: Befestigungsprodukt nicht vormontiert
Before
nachher: Abstandsmontagesystem ResiTHERM 16 ist vormontiert
After with ResiTHERM® 16

2. Self-cutting

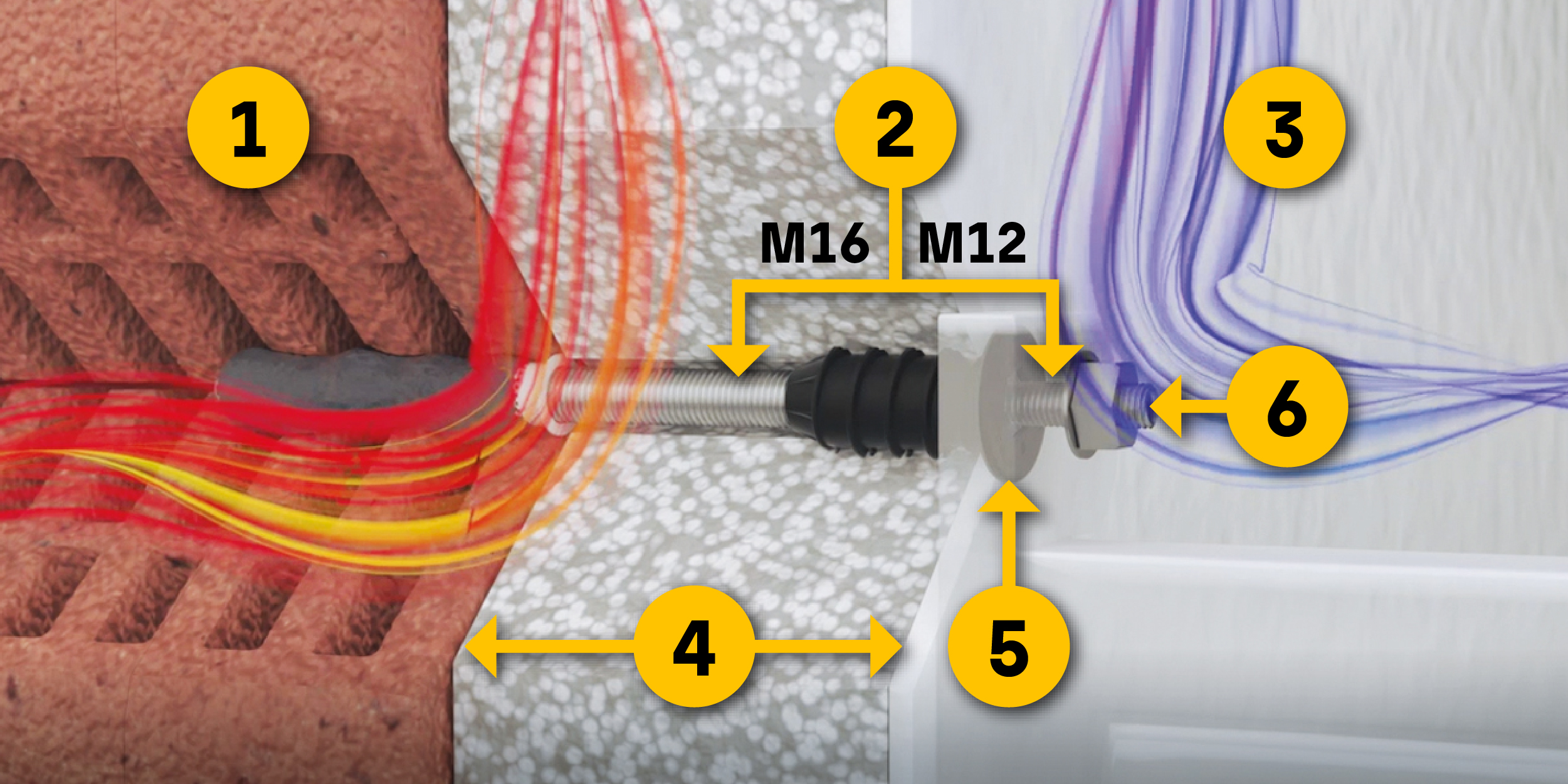

Due to its thermal separation module with a special thread, ResiTHERM® automatically screws itself through the plaster. No additional assembly tool is required to create the drill hole in the insulation. This saves you an assembly step and ensures anchoring free of thermal bridges. Here you will find an explanation of all components of the ResiTHERM® 16.

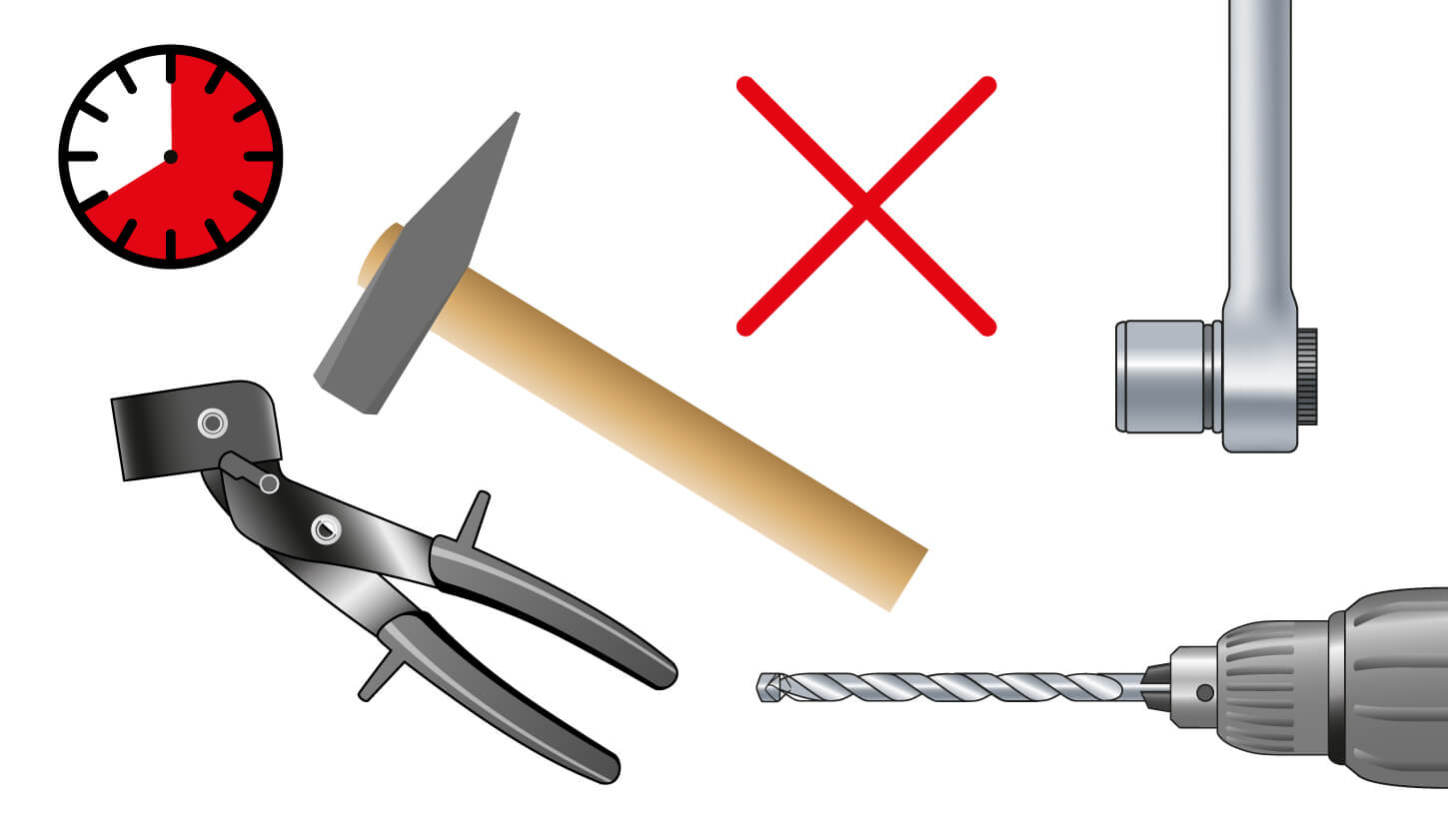

vorher: langwierige Montage, zusätzliche Werkzeuge erforderlich
Before
nachher: schnelle Montage mit ResiTHERM® 16 - kein zusätzliches Montagewerkzeug, das Produkt schraubt sich selbständig in den Putz
After with ResiTHERM® 16

3. Integrated sealing washer

Thanks to the integrated, aging and weather-resistant sealing washer, no additional sealing of the drill hole is required with the ResiTHERM® 16 spacer installation system, because the seal lies directly on the plaster. You save an assembly step and thus assembly time and expenses for additional material such as sealing compound.

Vorher: Montage mit Siebhülse und Ankerstange, langwierig, da das Bohrloch zusätzlich mit abgedichtet werden muss
Before

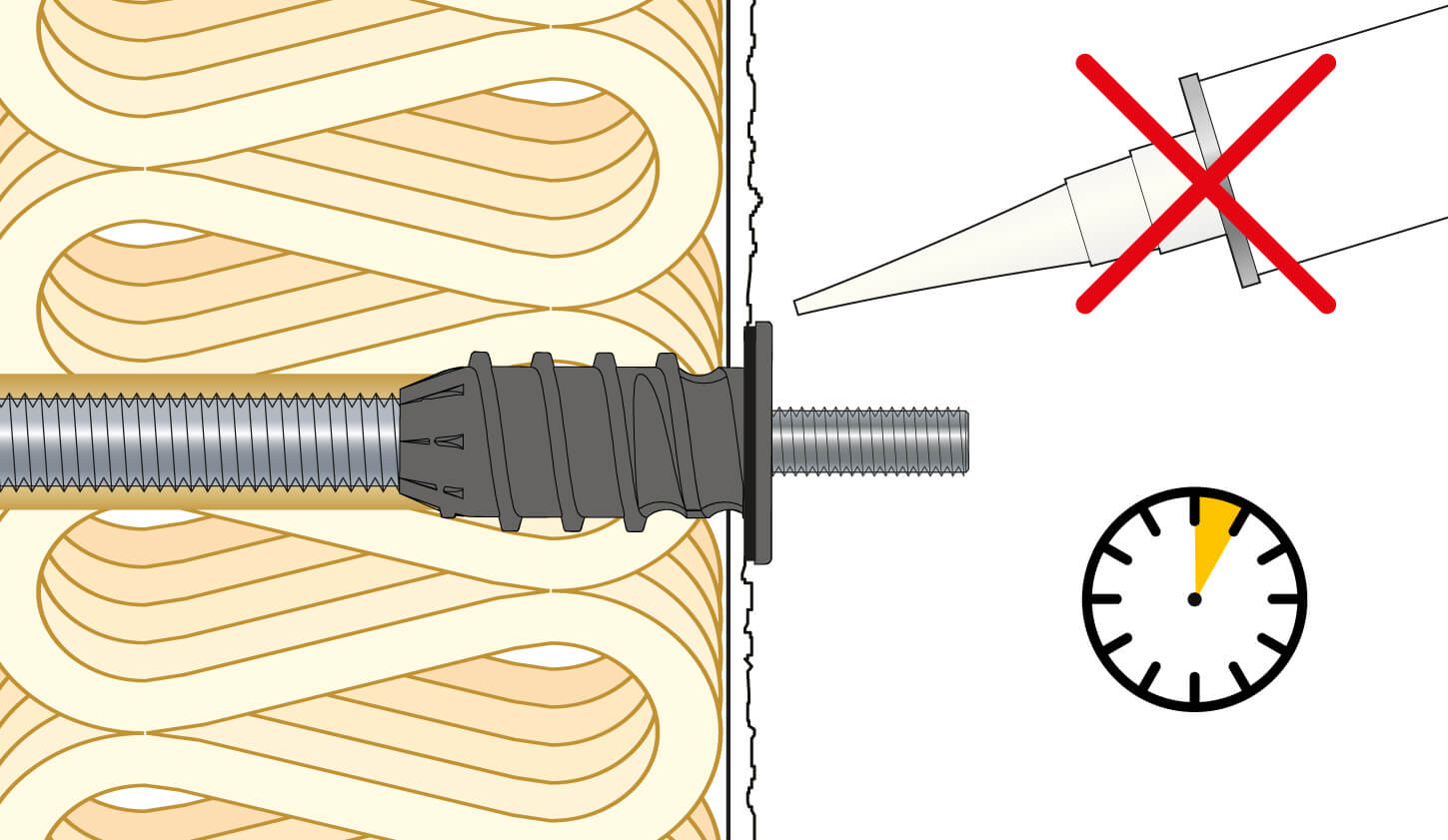

nachher mit ResiTHERM® 16, die EPDM-Dichtung am Kopf dichtet das Loch automatisch ab, es sich keine Nacharbeiten wie Abdichtung erforderlich, vgl. Fischer Thermax
After with ResiTHERM® 16

4. Proper installation guaranteed

Due to the user-friendly design, almost nothing can go wrong during assembly.

With ResiTHERM® 16 there is no risk of setting the heavy-duty anchorage too deep in the drill hole. Leaks or mold formation were to be feared with conventional solutions due to slippage or installation too deep in the drill hole. With ResiTHERM® 16, on the other hand, the head with the integrated sealing disk rests on the plaster and prevents it from slipping into the drill hole.

You automatically get an energy-efficient and driving rain-proof finish and save yourself the task of measuring the setting depth. Screw in - done!

Before
After with ResiTHERM® 16

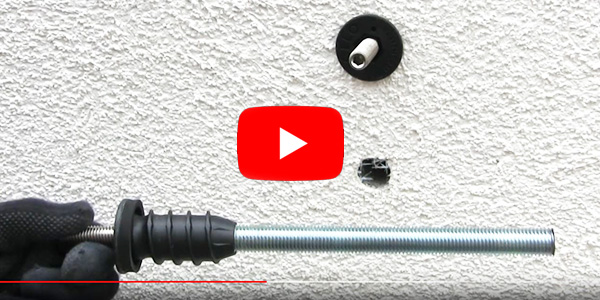

Installation videos

ResiTHERM® 16 is suitable for solid building materials such as concrete, brick or aerated concrete, as well as for perforated building materials such as brick with chambers. Here you will find a list of all suitable building materials.

ResiTHERM® 16 in concrete installations

ResiTHERM® 16 in perforated brick installations
