ResiTHERM® 8

Multi-use distance mounting system for insulated facades

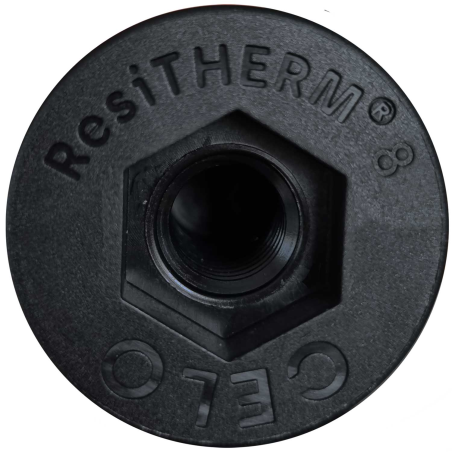

Product image head from ResiTHERM® 8 distance mounting system

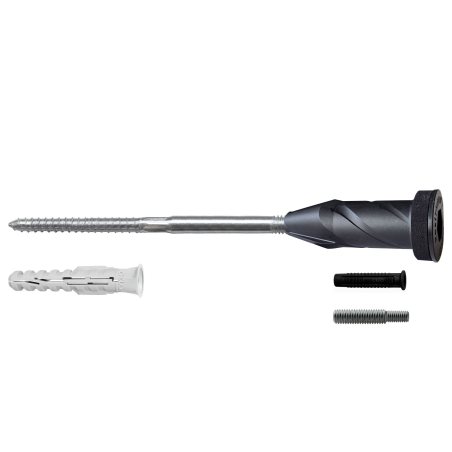

Product image ResiTHERM® 8 distance mounting system complete set

Product overview

The CELO ResiTHERM® 8 distance mounting system is the ideal, thermally separated solution for the secure fastening of medium loads up to approx. 20 kg to insulated external facades.

For insulation thicknesses from 60 to 200 mm, the innovative thermal barrier module made of glass-fiber reinforced polyamide minimizes thermal bridging highly effectively, while the integrated EPDM sealing ring permanently protects the drill hole from driving rain.

In combination with the ETA-approved MFR 10-60 multi-functional frame plug, the system anchors reliably in concrete, aerated concrete, as well as solid and hollow masonry. However, ResiTHERM® 8 can also be mounted directly into wood.

The system owes its outstanding flexibility to three connection options on a single common base: an M10 internal thread, an M8/M10 external thread, or the FX8 plug with screw are available for every requirement. This makes ResiTHERM® 8 a versatile all-rounder for a wide variety of ETICS facade applications. Typical applications range from rain downpipes and guide rails to wallboxes and outdoor lights, through to heavy mailboxes or window shutters. Even handrails, small satellite dishes, and lightning protection components can be anchored with absolute safety.

As part of the proven CELO ResiTHERM® family, this system guarantees installers and planners maximum flexibility combined with complete thermal efficiency.

List of references

Filters

Plug length [mm]

Suited insulation thickness [mm]

Packaging type.

Reference

560RTH82

960RTH820

580RTH82

980RTH820

5100RTH82

9100RTH820

5120RTH82

9120RTH820

5140RTH82

9140RTH820

5160RTH82

9160RTH820

5180RTH82

9180RTH820

5200RTH82

9200RTH820

Diameter [mm]

Length [mm]

100

120

140

160

180

200

Plug length [mm]

133

153

173

193

213

233

253

273

Suited insulation thickness [mm]

100

120

140

160

180

200

Length of thermal separation module [mm]

Diameter cover plate [mm]

Internal thread

M10

Packaging units

Packaging type.

Bag

Box

Bag

Box

Bag

Box

Bag

Box

Bag

Box

Bag

Box

Bag

Box

Bag

Box

Applications

Rainwater downpipes
Letterbox
Lighting system ceilings
Window blinds
Air conditioner
Wall box
Handrail

Further specifications

Key features:

Excellent thermal separation with almost no thermal bridge
Thermal separation module eliminates heat bridges efficiently and protects against mould and heat loss
