ResiTHERM® 12 wood

Heavy-duty distance mounting system for insulated wood costructions

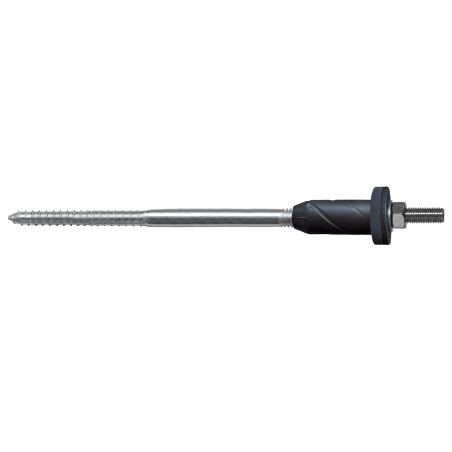

Product Image ResiTHERM® 12 wood - Distance Mounting System for wood

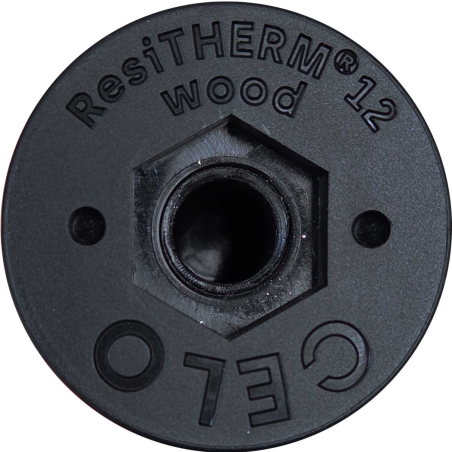

Product Image head ResiTHERM® 12 wood - Distance Mounting System for wood

Product overview

The CELO ResiTHERM® 12 wood heavy-duty distance mounting system was specially developed for the secure fastening of heavy loads to insulated timber structures and timber frame constructions.

Designed for insulation thicknesses of 60 to 160 mm, the system transfers demanding loads directly and mechanically into the load-bearing timber substrate via a robust hanger bolt. A highly efficient thermal barrier module made of glass-fiber reinforced polyamide (PA6GF40) ensures reliable load support while minimizing thermal bridging.

To permanently protect the plaster surface from moisture, an integrated, UV- and weather-resistant EPDM sealing ring reliably seals the fastening point.

Each kit includes the hanger bolt with the thermal barrier module, an M12x70 A4 threaded stud, and the matching nut with washer.

Depending on the fixture, the system offers maximum flexibility with three connection options on the same base: an M12 external connection thread, an M12 internal thread, and an optional M10 connection available as an accessory.

Typical heavy-duty outdoor applications include awnings, canopies, air conditioning units, railings, satellite dishes, window grilles, French balconies, and outdoor chimneys.

Since the ready-to-use, pre-assembled kit is installed completely without special tools, trade professionals benefit from a fast, straightforward, and highly reliable installation process. As a specialized addition to the proven ResiTHERM® family, this timber construction variant bridges the gap for demanding facade installations on modern, ecological timber structures.

List of references

Filters

Plug length [mm]

Suited insulation thickness [mm]

Reference

960RTH12W4

980RTH12W4

9100RTH12W4

9120RTH12W4

9140RTH12W4

9160RTH12W4

Diameter [mm]

Length [mm]

120

140

160

Plug length [mm]

140

160

180

200

220

240

Suited insulation thickness [mm]

100

120

140

160

Drill hole depth [mm]

80+e

Drill hole diameter [mm]

8-9

Eff. Anchorage depth [mm]

Packaging units

Packaging type.

Box

Applications

Awnings
Canopies
Air conditioner
Satellite dishes
Extension structures
Sun protection sails
Window bars
Solar panel installations
French balconies

Further specifications

Key features:

Excellent thermal separation with almost no thermal bridge
Thermal separation module eliminates heat bridges efficiently and protects against mould and heat loss
