Hollow block frame plug HBR SSKS with safety screw

The specialist for frames in hollow brick
Product image of hollow block frame plug HBR with hex head screw with integral washer

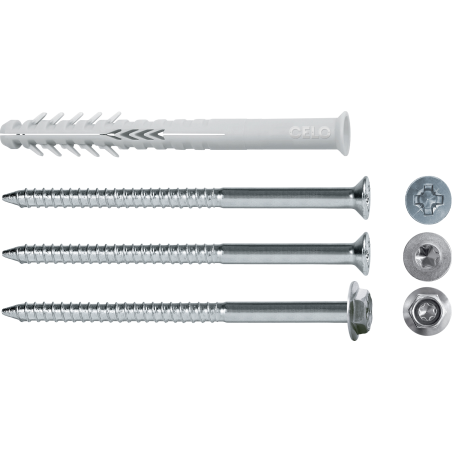

Product image of hollow block frame plug HBR with PZ countersunk screw, TX countersunk screw and hex head screw with integral washer
Product overview

The hollow block frame plug HBR with hex-head screw with integral washer (SW13/TX40) and a large setting depth of 90 mm is is an ETA approved specialised frame plug for fixings in perforated building materials like hollow bricks and blocks.

Show more
Download documents
List of references
Filters
Plug length [mm]
100
115
135
160
200
240
Close
Thickness of fixture [mm]
10
25
45
70
110
150
Close
Packaging type.
Box
Blister
Close
Reference
d
J
910100HBRSB
910115HBRSB
910135HBRSB
910160HBRSB
910200HBRSB
910240HBRSB
510100HBSK5
510135HBSK5
510160HBSK3
Diameter [mm]
d
J
10
10
10
10
10
10
0
0
10
Length [mm]
d
J
100
115
135
160
200
240
0
0
160
Drill hole diameter [mm]
d
J
10
10
10
10
10
10
10
10
10
Drill hole depth [mm]
d
J
100
100
100
100
100
100
100
100
100
Anchorage depth [mm]
d
J
90
90
90
90
90
90
90
90
90
Plug length [mm]
d
J
100
115
135
160
200
240
100
135
160
Thickness of fixture [mm]
d
J
10
25
45
70
110
150
10
45
70
Packaging units
d
J
50
50
50
50
25
25
5
5
3
Packaging type.
d
J
Box
Box
Box
Box
Box
Box
Blister
Blister
Blister
9 / 9 references are shown
Applications
  • Facade substructures
  • Window and door frame fixings
  • Square timber
  • Doors
  • Windows
  • Wall cabinets
  • Metal brackets, rails
Further specifications

Key features:

  • Specialised frame plug for perforated building materials like hollow bricks and blocks
  • Suitable for facade installations, fixing of doors and windows, wall cabinets and frames in general
  • Temperature resistant from -40°C to +80°C
  • Only approved in conjunction with CELO safety screw 6-7 mm
  • Setting depth 90 mm: High pull out loads due to long expansion area and high expansion ability in perforated bricks
