Hollow block frame plug HBR SSP

The specialist for frames in hollow brick with ETA approval

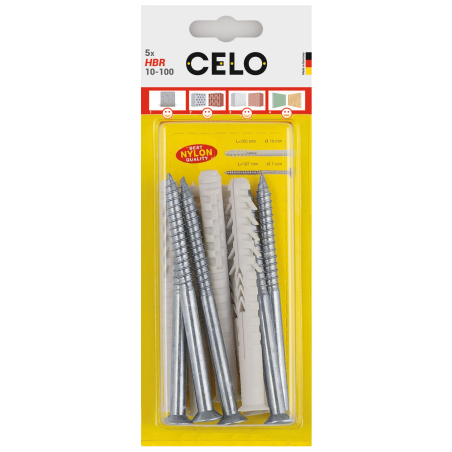

Product image of hollow block frame plug HBR with countersunk screw PZ
Product overview

The hollow block frame plug HBR with countersunk screw (PZ) and a large setting depth of 90 mm is is an ETA approved specialised frame plug for fixings in perforated building materials like hollow bricks and blocks.

Show more
Download documents
List of references
Filters
Drill hole diameter [mm]
8
10
Close
Drill hole depth [mm]
80
100
Close
Anchorage depth [mm]
65
90
Close
Plug length [mm]
80
100
115
135
160
Close
Thickness of fixture [mm]
15
10
25
45
70
Close
Reference
d
J
9880HBRSZ
910100HBRSZ
910115HBRSZ
910135HBRSZ
910160HBRSZ
Diameter [mm]
d
J
8
10
10
10
10
Length [mm]
d
J
80
100
115
135
160
Drill hole diameter [mm]
d
J
8
10
10
10
10
Drill hole depth [mm]
d
J
80
100
100
100
100
Anchorage depth [mm]
d
J
65
90
90
90
90
Plug length [mm]
d
J
80
100
115
135
160
Thickness of fixture [mm]
d
J
15
10
25
45
70
Packaging units
d
J
25
50
50
50
50
Packaging type.
d
J
Box
Box
Box
Box
Box
A
t
5 / 5 references
Applications
  • Facade substructures
  • Window and door frame fixings
  • Square timber
  • Doors
  • Windows
  • Wall cabinets
  • Metal brackets, rails
Further specifications

Key features:

  • Specialised frame plug for perforated building materials like hollow bricks and blocks
  • Suitable for facade installations, fixing of doors and windows, wall cabinets and frames in general
  • Temperature resistant from -40°C to +80°C
  • High quality and ageing resistant nylon
  • Setting depth 90 mm: High pull out loads due to long expansion area and high expansion ability in perforated bricks
Base materials
