Blister Hollow block frame plug HBR

The specialist for frames in hollow brick
Product image of blister hollow block frame plug HBR with countersunk screw PZ

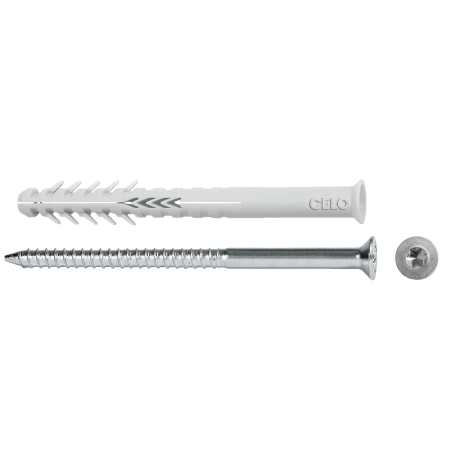

Product image of hollow block frame plug HBR with TX countersunk screw

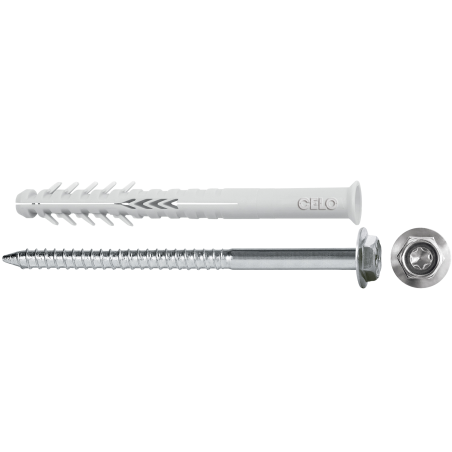

Product image of hollow block frame plug HBR with hex head screw with integral washer
Product overview

The hollow block frame plug HBR in the handy blister is available in two types: with countersunk screw (TX 40) or hex-head screw with integral washer (SW13/TX40, washer-Ø: 19 mm).

Show more
Download documents
List of references
Filters
Reference
510100HBRST5
510100HBSK5
510135HBRST5
510135HBSK5
510160HBRST5
510160HBSK3
Close
Plug length [mm]
100
135
160
Close
Thickness of fixture [mm]
10
45
70
Close
Packaging units
5
3
Close
Sort by
Column
Reference
Drill hole diameter [mm]
Drill hole depth [mm]
Anchorage depth [mm]
Plug length [mm]
Thickness of fixture [mm]
Packaging units
Packaging type.
Close
Sort direction
Ascending
Descending
Close
Reference
510100HBRST5
510100HBSK5
510135HBRST5
510135HBSK5
510160HBRST5
510160HBSK3
Diameter [mm]
0
0
0
0
0
10
Length [mm]
0
0
0
0
0
160
Drill hole diameter [mm]
10
10
10
10
10
10
Drill hole depth [mm]
100
100
100
100
100
100
Anchorage depth [mm]
90
90
90
90
90
90
Plug length [mm]
100
100
135
135
160
160
Thickness of fixture [mm]
10
10
45
45
70
70
Packaging units
5
5
5
5
5
3
Packaging type.
Blister
Blister
Blister
Blister
Blister
Blister
6 / 6 references are shown
Applications
  • Facade substructures
  • Window and door frame fixings
  • Square timber
  • Doors
  • Windows
  • Wall cabinets
  • Metal brackets, rails
Further specifications

Key features:

  • Specialised frame plug for perforated building materials like hollow bricks and blocks
  • Suitable for facade installations, fixing of doors and windows, wall cabinets and frames in general
  • Compatible with many types and sizes of screws
  • HBR 10 is approved only in conjunction with the CELO safety screws
  • Setting depth 90 mm: High pull out loads due to long expansion area and high expansion ability in perforated bricks
  • High quality and ageing resistant nylon

Base materials:

  • Solid sand-lime brick
  • Lightweight solid concrete block
  • Aerated concrete
  • Hollow brick
  • Hollow sand-lime block
  • Lightweight hollow concrete block
  • Concrete
