Hollow block frame plug HBR TX

The specialist for frames in hollow brick with ETA approval
Product image of hollow block frame plug HBR with TX countersunk screw

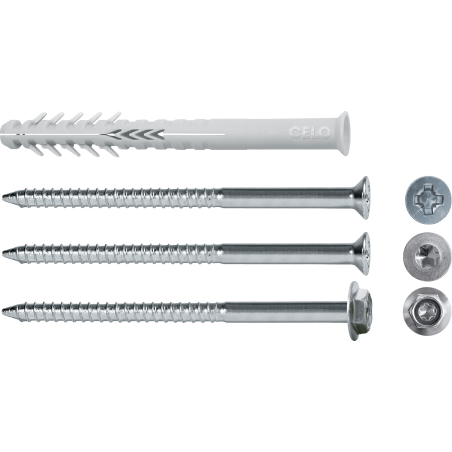

Product image of hollow block frame plug HBR with PZ countersunk screw, TX countersunk screw and hex head screw with integral washer

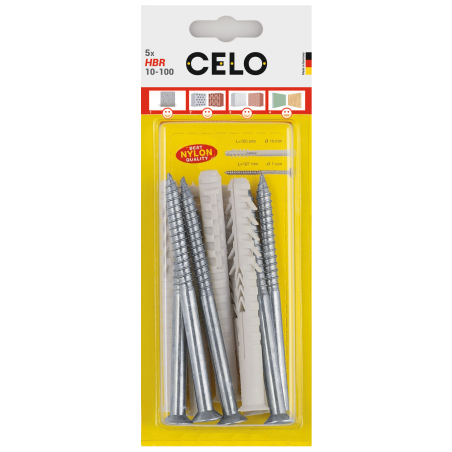

Product image of blister hollow block frame plug HBR with countersunk screw PZ
Product overview

The hollow block frame plug HBR with countersunk screw (TX 40) and a large setting depth of 90 mm is is an ETA approved specialised frame plug for fixings in perforated building materials like hollow bricks and blocks.

Show more
Download documents
List of references
Filters
Reference
910100HBRST
910115HBRST
910135HBRST
910160HBRST
910200HBRST
910240HBRST
510100HBRST5
510135HBRST5
510160HBRST5
Close
Plug length [mm]
100
115
135
160
200
240
Close
Thickness of fixture [mm]
10
25
45
70
110
150
Close
Packaging units
50
25
5
Close
Packaging type.
Box
Blister
Close
Sort by
Column
Reference
Drill hole diameter [mm]
Drill hole depth [mm]
Anchorage depth [mm]
Plug length [mm]
Thickness of fixture [mm]
Packaging units
Packaging type.
Close
Sort direction
Ascending
Descending
Close
Reference
910100HBRST
910115HBRST
910135HBRST
910160HBRST
910200HBRST
910240HBRST
510100HBRST5
510135HBRST5
510160HBRST5
Diameter [mm]
10
10
10
10
10
10
0
0
0
Length [mm]
100
115
135
160
200
240
0
0
0
Drill hole diameter [mm]
10
10
10
10
10
10
10
10
10
Drill hole depth [mm]
100
100
100
100
100
100
100
100
100
Anchorage depth [mm]
90
90
90
90
90
90
90
90
90
Plug length [mm]
100
115
135
160
200
240
100
135
160
Thickness of fixture [mm]
10
25
45
70
110
150
10
45
70
Packaging units
50
50
50
50
25
25
5
5
5
Packaging type.
Box
Box
Box
Box
Box
Box
Blister
Blister
Blister
9 / 9 references are shown
Applications
  • Facade substructures
  • Window and door frame fixings
  • Square timber
  • Doors
  • Windows
  • Wall cabinets
  • Metal brackets, rails
Further specifications

Key features:

  • Specialised frame plug for perforated building materials like hollow bricks and blocks
  • Suitable for facade installations, fixing of doors and windows, wall cabinets and frames in general
  • Temperature resistant from -40°C to +80°C
  • High quality and ageing resistant nylon
  • Setting depth 90 mm: High pull out loads due to long expansion area and high expansion ability in perforated bricks
  • HBR 10 is approved only in conjunction with the CELO safety screws

Base materials:

  • Solid sand-lime brick
  • Lightweight solid concrete block
  • Hollow sand-lime block
  • Hollow brick
  • Lightweight hollow concrete block
  • Aerated concrete
  • Concrete
How to install
Step 1
Step 2
Step 3
Step 4
