ResiTHERM® 16

Distance mounting system for insulated façades – ETA-approved and driving rain-tight for heavy loads

Product Image ResiTHERM® 16 Distance Mounting System

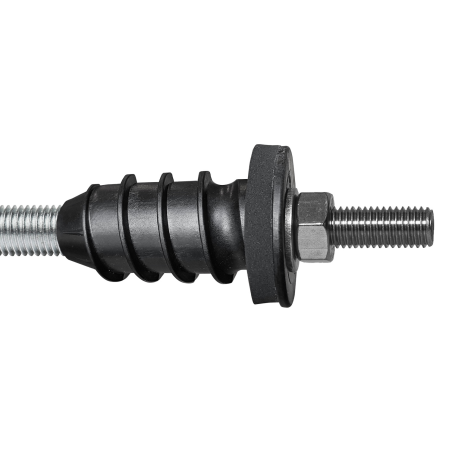

Product Image ResiTHERM® 16 Thermal Separation Module

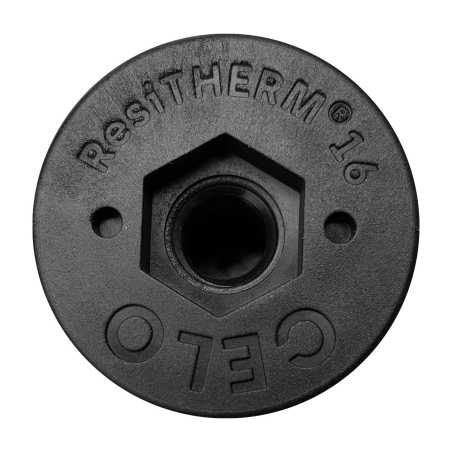

Product Image ResiTHERM® 16 Thermal Separation Module Closeup

Product overview

ResiTHERM® 16 makes the difference! The innovative product is fast, driving rain tight, thermally separated, corrosion-resistant, ETA-approved, and Made in Germany. The perfect solution for mounting heavy loads to insulated facades without thermal bridges!

One product for all insulation types and thicknesses, e.g. bridging insulation thicknesses from 60-300 mm when anchoring in insulated façades made of concrete, or from 60-280 mm in aerated concrete and solid brick, and 60-250 mm when the insulated wall consists of perforated bricks, thus allowing for high application flexibility.

It also works in other base materials and for a wide range of applications such as awnings, canopies, French balconies, satellite dishes, air-conditioning units and much more.

The black thermal separation module eliminates heat bridges efficiently and protects against mould and heat loss. Its pre-assembled, weather-resistant EPDM sealing ensures safe sealing against driving rain up to wind force 11(violent storm) and up to 3 mm displacement, tested for watertightness based on DIN EN 1027.

Discover the time and cost savings due to simple and quick installation while ensuring the highest quality:

No risk of corrosion due to high steel quality 8.8, attachment parts made of stainless steel A4 and glass-fibre reinforced nylon, which is characterised by ageing, weather, and UV-resistance.

The possibility of subsequent adjustment of the screw-in depth of the M12 threaded stud as well as the M16 threaded rod allows adjustment to the individual installation situation.

ResiTHERM® 16 is available in two versions: zinc-plated or A4.

While the external attachment parts M12 are always made of A4 stainless steel, the variants differ for the M16 threaded rod in the wall. For one variant this threaded rod is galvanised, for the other, it consists of A4 stainless steel.

Each variant is available in 2 or 20 pieces.

Find the correct product for you with our ResiTHERM® overview - Discover the full distance mounting system range.

Download documents

View videos

List of references

Filters

Material

Reference

9250RTH162

9250RTH1620

9X250RTH162

9X250RTH1620

Plug length [mm]

385

Suited insulation thickness [mm]

60-300

Material

Steel

Stainless steel A4

Drill hole depth [mm]

90/110/140+e

Drill hole diameter [mm]

18/20

Eff. Anchorage depth [mm]

80/100/130

Thread

M16

Packaging units

Packaging type.

Box

4 / 4 references

Applications

Canopies
Awnings
Air conditioner
Satellite dishes
Guard rails
Extension structures
Sun protection sails
Window bars
Rainwater downpipes
Solar panel installations

Further specifications

Key features:

Time and cost savings due to simple and quick installation
Reliable, durable, ETA-tested fixing

Thermal separation module eliminates heat bridges efficiently and protects against mould and heat loss
Weather-resistant EPDM rubber ensures safe sealing against driving rain up to wind force 11
Conforms to the technical requirements for thermal installations for buildings 1027/2007 (RITE)
