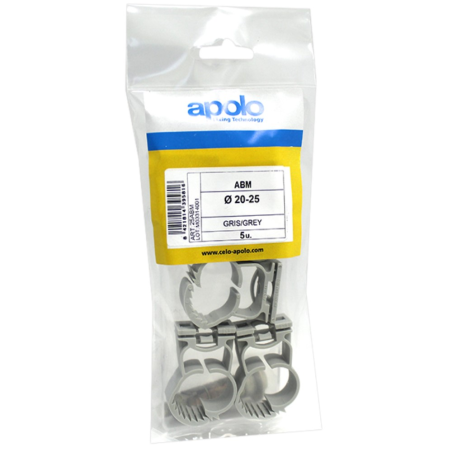

Plastic bag nylon clamp multidiameter ABM

Plastic bag nylon clamp multidiameter
Plastic bag nylon clamp multidiameter ABM

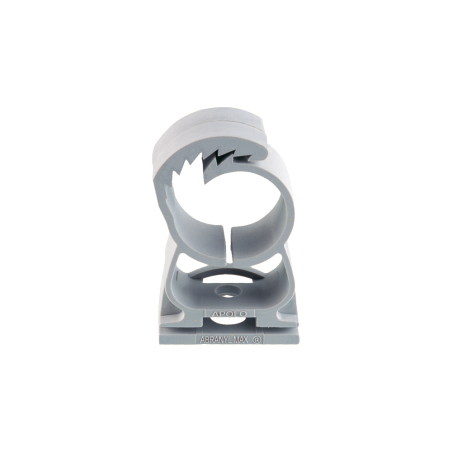

Product image of plastic clamp Abranyl ABM grey
Product overview
CELO's multidiameter nylon clamp ABM close automatically when the pipe is pushed in you save time and money. ABM can be installed with screws and nail plugs. It´s approved by KIWA, so the clamp can be used for warm water pipes with temperatures up to 90°C. ABM is a multidiameter clamp one clamp size covers three pipe diameters and it is a patented fastening system. Fast and direct fixing with tacomax accessory. Also can be fixed: channels E2000PB, E2000PG and 1000PVC, or nail plug NP5x35, or plug FX O6 and screw O4,5x35/45. It could be fixed to threaded rod with insermax accessory.
Download documents
List of references
Filters
Reference
18ABM
25ABM
32ABM
Close
Clamping range [mm]
14-18
20-25
25-32
Close
Height [mm]
35
48
52
Close
Sort by
Column
Reference
Material
Colour
Clamping range [mm]
Height [mm]
Width [mm]
Packaging units
Packaging type.
Close
Sort direction
Ascending
Descending
Close
Reference
18ABM
25ABM
32ABM
Material
Nylon
Nylon
Nylon
Colour
Grey
Grey
Grey
Clamping range [mm]
14-18
20-25
25-32
Height [mm]
35
48
52
Width [mm]
16
16
16
Packaging units
5
5
5
Packaging type.
Bag
Bag
Bag
3 / 3 references are shown
Applications
  • Copper pipes
  • PVC pipes
  • Multilayer pipes
  • Steel pipes
  • Heating pipes
  • Plastic pipes
Further specifications

Key features:

  • For all types of plastic pipes (multilayer, polypropylene, polybutylene, ...)
  • Allows to be fixed in open profiles between 10-11 mm, type E2000PG, E2000PB and PVC 1000 profiles
  • Halogen-free
  • Multidiameter; one clamp size covers three pipe diameters
  • Installation with screws, nail plugs, Tacomax®, or Insermax®
