Plastic bag nylon clamp AN

Plastic bag nylon clamp multidiameter

Product overview

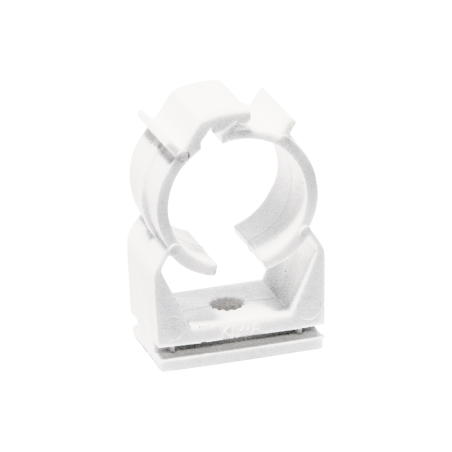

The multidiameter nylon clamp Abranyl® AN in plastic bag closes automatically when the pipe is pushed in and you save time and money. The nylon clamp covers all the pipe absorbing the pipe dilatation. One clamp size covers two pipe diameters and it is a patented fastening system.

Quick and easy installation, just by pressing the tube you can close several clamps at the same time without using any tools. Plus, it has the same height as the junction box for easy installation without bending the rigid tube.

It can be installed with channel E2000PB, E2000PG y 1000PVC, nail plug NP 5x35, nylon plug FX Ø6 and screw Ø4,5x35/45.

As confirmed by the KIWA approval, the clamp can be used for hot water pipes up to +90°C.

UL-tested, halogen-free and RoHS confirmed.

Made in Germany from high-quality ageing- and weahter-resistant nylon.

The handy plastic bag contains white-coloured nylon clamps Abranyl AN.

Download documents

List of references

Filters

Clamping range [mm]

Width [mm]

Reference

115AN

118AN

122AN

126AN

130AN

Diameter [mm]

18.5

22.5

26.6

30.5

Length [mm]

19.5

Material

Nylon

Colour

White

Clamping range [mm]

15-16

18-20

22-25

26-28

30-32

Width [mm]

15.5

Clearance hole [mm]

Packaging units

Packaging type.

Bag

5 / 5 references

Applications

PVC pipes
Cooper pipes
Multilayer pipes
Steel pipes
Plastic pipes

Further specifications

Key features:

Wide range of colours and diameters
For all types of plastic pipes (multilayer, polypropylene, polybutylene, ...)
Suitable for fixing clamps with channel stud EPR
Halogen-free
Black colour resistant to ultraviolet UV rays
The KIWA certification guarantees that the clamp supports hot water up to + 90 ºC in a continuous time and punctually of 130 ° C

How to install

Step 1

Step 2

Step 3
