Multidiameter clamp Abranyl® ABT

Multidiameter nylon clamp for electrical installations

Product image of plastic clamp Abranyl ABT grey

Product image of plastic clamp Abranyl ABT white

Product image of plastic clamp Abranyl ABT black

Product overview

The patented nylon clamp Abranyl® ABT can be installed in just 3 seconds with the FORCE ONE gas nailer!

The Abranyl® clamp ABT is a multidiameter clamp made of nylon and specially designed to save time installing tubes and conduits using nailers. Each reference covers up to three different tube diameters. The tube is simply pushed in and the ABT closes automatically around it offering high-security values. In addition, its nylon properties provide additional performance against expansion due to the temperature contrast of the tubes.

Quick and easy to install, just press the tube and you will be able to close several clamps at the same time without tools. Installation is also quick and easy with CELO nailers or fixing it directly to channels such as our E2000PB, E2000PG, and 1000PVC. In addition, through its hole, it can be screwed directly to the wall with a 4.5x35/45 screw and a four-side expansion plug FX Ø6. The alignment marking on the clamp allows easy mounting when looking to install in series.

Plus, it has the same height as the junction box for easy installation without bending the rigid tube.

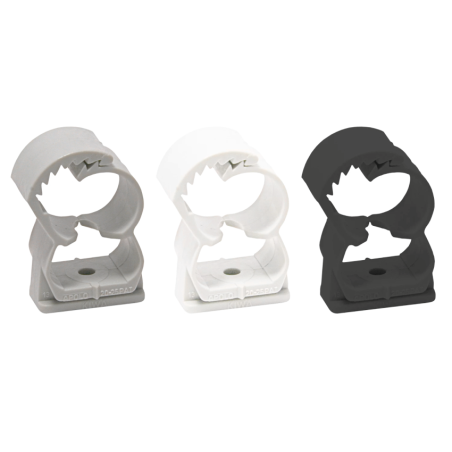

Available in white, grey and black. The black colour is UV-resistant and can be exposed to sunlight.

The clamp is UL-approved, halogen-free and RoHS-compliant. As the KIWA certification confirms, the clamp can be used for hot water pipes up to +90°C in permanent operation and peaks of +110°C.

Download documents

View videos

List of references

Filters

Reference

Colour

Clamping range [mm]

Suitable for

Height [mm]

Packaging units

Packaging type.

Sort by

Column

Sort direction

Reference

918ABT

9118ABT

9418ABT

18ABT

925ABT

9125ABT

9425ABT

25ABT

932ABT

9132ABT

9432ABT

32ABT

942ABT

9142ABT

9442ABT

40ABT

Material

Nylon

Colour

Grey

White

Black

Grey

White

Black

Grey

White

Black

Grey

White

Black

Grey

Clamping range [mm]

14-18

20-25

25-32

35-42

Suitable for

Pipe Ø 15-25

Pipe Ø 26-32

Pipe Ø 35-42

Width [mm]

Height [mm]

35.6

45.5

53.6

66.4

Packaging units

100

Packaging type.

Box

Bag

Box

Bag

Box

Bag

Box

Bag

16 / 16 references are shown

Applications

Copper pipes
Multilayer pipes
Steel pipes
PVC pipes
Heating pipes
Corrugated pipes

Further specifications

Key features:

Closes automatically when pipe is pushed in; saves time and money
Compatible with gas nailers FORCE ONE, Würth Diga C3, Spit 700/800, Rawlplug
High application reliability
Multiple fixing types with plug and screw, channels, threaded rod and nail plugs
Black: UV resistant

How to install

Step 1

Step 2

Step 3
