Insulation plug IPL 95DS

Fast and clean solution for fastening downpipes directly into ETICS with external thermal insulation.

Product image of insulation screw IPL 95DS with special threaded stud

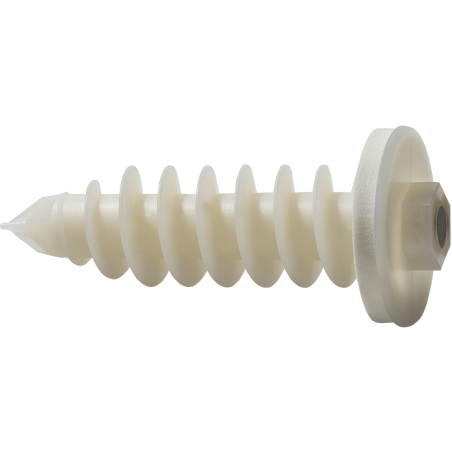

Product image of insulation screw IPL 95D without threaded stud

Product overview

The insulation plug IPL 95DS offers a perfect solution for fastening downpipes directly in ETICS without thermal bridge: simple, flexible, fast and adjustable!

Designed by CELO, this patented plug consists of a one-piece plug including a pre-assembled sealing ring and a pre-mounted special threaded stud:

1. Made of weather-resistant cellular rubber the pre-mounted sealing ring ensures a secure adaption to the surface (Ø = 44,5 mm) while preventing from water leaks.

2. The special threaded rod with a zinc flake coating or in stainless steel A2 guarantees a high corrosion resistance. With this special pre-mounted threaded rod you achieve an ideal distance of 30 mm between the rainwater downpipe and the wall, while a simple and accurate adjustment of further 25 mm to your individual circumstances is possible.

3. Thanks to the self-drilling tip, the innovative IPL 95DS can be applied extremely fast without pre-drilling (ETICS plaster until 7 mm).

The ageing- weather- and UV-resistant nylon plug "made in Germany" withstands temperatures from -40 to +80 °C. It can be easily installed with these drives: SW17 (plug), SW13 (hex nut) or TX25 (threaded rod). Halogene-free.

The pre-assembled and weather resistant EPDM sealing ensures clean sealing against driving rain up to wind force 11 (violent storm), tested in accordance to DIN EN 1027 by the "Prüfzentrum für Bauelemente" (testing center for building elements) Pfb in Rosenheim, Germany. The sealing ring prevents water and cold from penetrating the façade and seals it permanently. No subsequent sealing is necessary, which saves you an installation step. The drill hole is automatically sealed rainproof and the energy efficiency of the insulated façade is maintained.

Download documents

View videos

List of references

Filters

Connecting thread

Recess type

Packaging type.

Reference

ZG895IPLDS4

X895IPLDS4

ZG95IPLDS4

X95IPLDS4

995IPLD

Diameter [mm]

Length [mm]

Plug length [mm]

Connecting thread

M10

Thread length [mm]

Recess type

Plug: SW17, Stud SW13/TX25

Plug: SW17

Insertion depth [mm]

20-50

Packaging units

Packaging type.

Foil bag

Box

5 / 5 references

Applications

Rainwater downpipes
Letterbox
Lighting system ceilings
Window blinds

Further specifications

Key features:

Perfect solution for fastening downpipes in ETICS: simple, flexible, fast and adjustable!
Direct fastening into the insulation material - no thermal bridge
Pre-mounted special threaded stud: ideal distance of 30 mm of the rainwater downpipe from the wall; adjustment of further 25 mm possible

Pre-assembled, weather resistant EPDM sealing ensures safe sealing against driving rain up to wind force 11 (violent storm) and up to 3 mm displacement, tested watertightness based on DIN EN 1027.
Pre-drilling in plaster not necessary (≤ 7 mm) due to sharp drill tip
Special threaded stud made out of stainless steel A2 or zinc flake coating for optimal corrosion resistance

Base materials

ETICS (External Thermal Insulation Composite System)
Polystyrene board
Hard foam board
Wood fibre insulation board (pre-drilling: 13mm)
Heraklith board

Other related products

How to install

Step 1

Step 2

Step 3

Step 4

Watch the video

Useful tips

Innovative fixing solutions for efficient insulation - the complete assortment to avoid thermal bridges

Lamp, awning or rainwater downpipe? Polystyrene or wood fibre insulation? Check out the easy insulation fixings selector

How our insulation plugs are tested for driving rain tightness

This product prevents thermal bridges when installing on the insulated façade. Find out more >
