ResiTHERM® 37 starter set

Distance mounting system for hollow bricks - strong, fast and with thermal separation!

Description

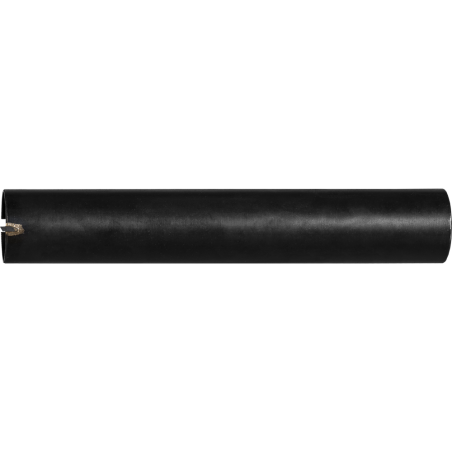

ResiTHERM® 37 starter set is the perfect solution for distance installations in hollow bricks. It is a heavy-duty system for fastening of awnings, canopies, French balconies, railings, satellite dishes etc. in ETICS. Almost no thermal bridge due to a robust glass fibre-reinforced nylon body.

The 80 mm deep internal thread allows a perfect thermal separation as well as a big insertion depth of the threaded stud. Threaded stud, nut and washer out of stainless steel A4 for optimal corrosion resistance. Special membrane for an even distribution of the injection resin (tailored to ResiFIX VY) for high application safety. Massive anchor body made out of glass fibre-reinforced and ageing resistant high-quality nylon ensures long-term security. Comfortable injection of the resin ResiFIX from outside. The mixing nozzle sticks in the injection hole, this makes it easier to adjust the protrusion to the plaster. Large application range, the metric thread M12- the most common thread size for awnings, canopies, French balconies, etc. The product is ready to use. Made in Germany.

The starter set includes:
- 4x ResiTHERM® 37 M12 of your choice (length 37/120, 37/160, 37/200 M12)
- 4x threaded stud M12x70 mm, stainless steel A4
- 4x washer M12 DIN 125, stainless steel A4
- 4x Hexagon nut M12 DIN 934, stainless steel A4,

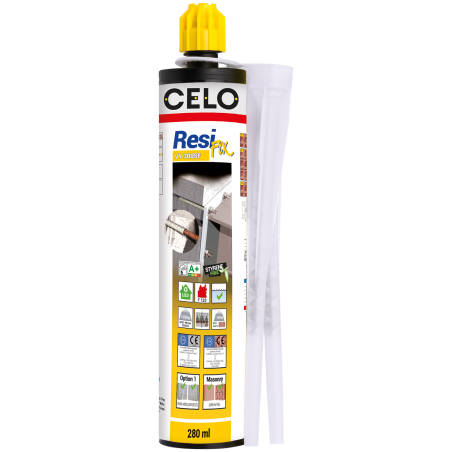

- 2x Injection system ResiFIX VY 300 SF incl 4x mixing nozzle MD
- 1x Drilling aid for core bit
- 1x Core bit Ø39 x 220 mm

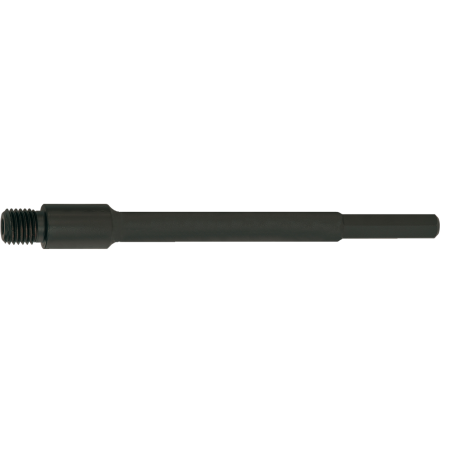

- 1x Adapter shank hexagon M16, 100 mm for core bit
-1x Adapter shank hexagon M16, 200 mm for core bit
- 1x Stick FX XP white, MS Polymer

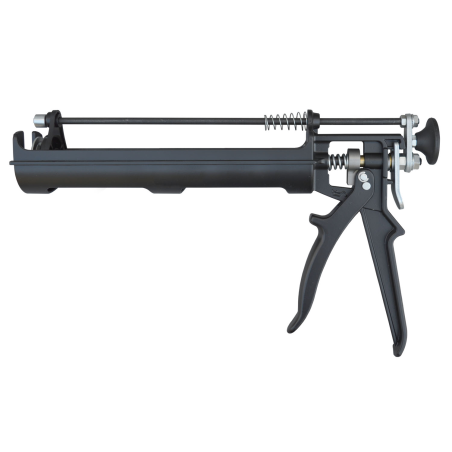

- 1x Chaulkinggun APVM suitable for ResiFIX cartridge

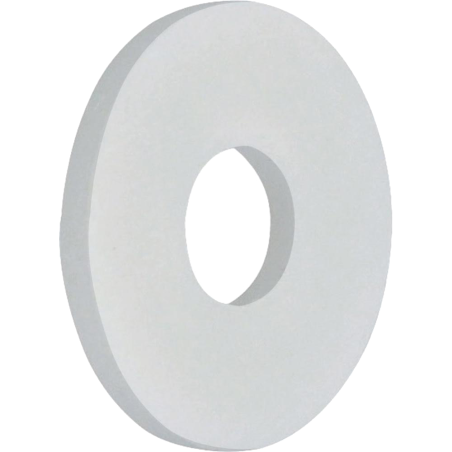

- 50x Distance washer DIN 9021 for M12 (13x37x3mm)
- 1 pair of work gloves
Product overview
Advantages
Applications
Downloads
Print

Click in a reference to know more. Filter your selection using the options in the "show filters" button:

Click in a reference for further details and use the arrows to see other references. Filter your selection using the options in the "see filters" button:

Show filters

The perfect solution for distance installations in hollow bricks

Excellent thermal separation, almost no thermal bridge

Specialized system for fastening of awnings, canopies, French balconies, railings, satellite dishes etc.

Easy and fast installation saves time and money

Product is ready to use: available in three standard lengths

Outstanding high values in hollow bricks

Suitable for large insulation thickness up to 200 mm

For non-insulated hollow brick walls: ResiTHERM® S

Further specifications:

  • Awnings
  • Canopies
  • Satellite dishes
  • French balconies
  • Guard rails
  • Building constructions
  • Sun protection sails
  • Window bars

Areas of application:

  • Hollow brick
  • Hollow sand-lime block
  • Aerated concrete
  • Solid sand-lime brick
  • Solid brick
  • Concrete
