ResiTHERM® 37S

Heavy-duty mounting system for hollow bricks - strong, fast and with thermal separation!

Product image of heavy-duty sleeve ResiTHERM 37/0 M12

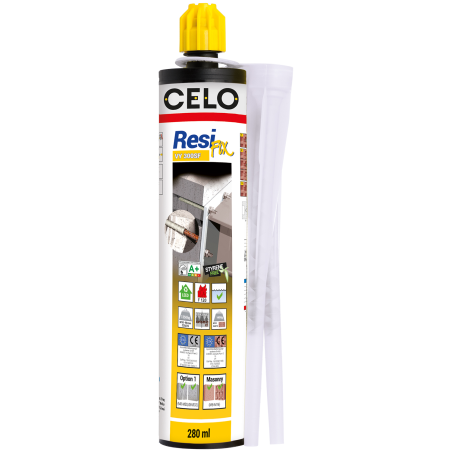

Product image of cartige injection mortar ResiFIX VY 300 SF, Vinylester with two mixing nozzles

Product overview

ResiTHERM® 37S is the perfect ETA-approved solution for heavy-duty installations in hollow bricks. It is a heavy-duty system for fastening of awnings, canopies, French balconies, railings, satellite dishes etc. Almost no thermal bridge due to a robust glass fibre reinforced nylon body.

The 35-40 mm deep internal thread allows a perfect thermal separation as well as a big insertion depth of the threaded stud. Threaded stud, nut and washer out of stainless steel A4 for optimal corrosion resistance. Special membrane for an even distribution of the injection resin (tailored to ResiFIX VY) for high application safety. Massive anchor body made out of glass fibre-reinforced and ageing resistant high-quality nylon ensures long-term security. Comfortable injection of the resin ResiFIX from outside. The mixing nozzle sticks in the injection hole, this makes it easier to adjust the protrusion to the plaster. Large application range, the metric thread M12 is the most common thread size for awnings, canopies, French balconies, etc.

ResiTHERM® 37S is ready to use. For insulated facades with an insulation thickness up to 200 mm check out our ResiTHERM® range with lengths 120, 160, 200 mm.

Set includes:

- 2x ResiTHERM® 37S

- 2x Threaded stud M12x70 mm, stainless steel A4

- 2x Washer M12 DIN 125, stainless steel A4

- 2x Hexagon nut M12 DIN 934, stainless steel A4

- 1x Injection mortar ResiFIX VY 300 SF

Download documents

View videos

List of references

Filters

Sort by

Column

Sort direction

Reference

RTHS2

Plug length [mm]

125

Drill hole diameter [mm]

39-40

Drill hole depth [mm]

130

Anchorage depth [mm]

125

Connecting thread

M12

Insertion depth [mm]

min. 35

Thickness of fixture [mm]

Packaging units

Packaging type.

Foil bag

1 / 1 references are shown

Applications

Awnings
Canopies
Satellite dishes
French balconies
Guard rails
Building constructions
Sun protection sails
Windows

Further specifications

Key features:

The perfect solution for heavy-duty applications in hollow / perforated brick walls (not insulated)
Excellent thermal separation, almost no thermal bridge
Outstanding high values in hollow bricks
Easy and fast installation saves time and money
Specialized system for fastening of awnings, canopies, French balconies, railings, satellite dishes etc.
For a secure hold in insulated walls, use the ResiTHERM® distance mounting system.
