Multidiameter clamp Abranyl® Max ABM

The most versatile multidiameter nylon clamp

Product overview

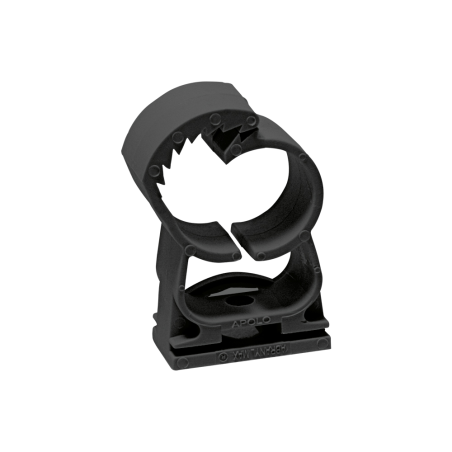

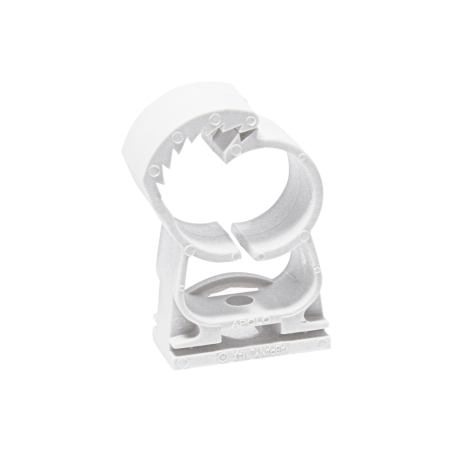

The Abranyl® Max ABM clamp is a patented multidiameter clamp made of nylon with one clamp size covering three tube diameters.

The ABM closes automatically when the pipe is pushed in and you save time and money during installation. Being completely closed, ABM embraces the tube, offering great security against expansion of the tubes due to the temperature differences.

Quick and easy installation, just by pressing in the tube you can close several clamps ABM at the same time, without tools.

The versatile ABM can be installed in several ways:

1. It can be fixed with plug Tacomax® TMX which perfectly fits with this clamp. After drilling a Ø6 mm hole, hammer in the plug directly. Due to it's special head the ABM clamp can be pushed over the plug head from the side.

2. It can be fixed with E2000PB, E2000PG and 1000PVC channels.

3. In addition, through its hole, ABM can be screwed directly to the wall with a 4.5x35/45 screw and a FX Ø6 plug.

4. Optionally, you can fix it with metric screw using the M6-metal-adapter Insermax® IMX.

It has the same height as the junction box for easy installation without bending the rigid tube.

Available in white, grey and black colour. The black colour is UV-resistant and can be exposed to sunlight.

The clamp is halogen free and RoHS compliant.

As the KIWA certification confirms, the clamp can be used for hot water pipes up to +90°C.

Patented.

Download documents

List of references

Filters

Reference

Colour

Clamping range [mm]

Length [mm]

Height [mm]

Packaging units

Packaging type.

Sort by

Column

Sort direction

Reference

914ABM

9118ABM

918ABM

9418ABM

9125ABM

925ABM

9425ABM

9132ABM

932ABM

9432ABM

9142ABM

942ABM

9442ABM

18ABM

25ABM

32ABM

918ABM20

925ABM15

932ABM10

Material

Nylon

Colour

Grey

White

Grey

Black

White

Grey

Black

White

Grey

Black

White

Grey

Black

Grey

Clamping range [mm]

10-14

14-18

20-25

25-32

35-42

14-18

20-25

25-32

14-18

20-25

25-32

Length [mm]

Height [mm]

Width [mm]

Packaging units

100

Packaging type.

Box

Bag

Box

19 / 19 references are shown

Applications

Plastic pipes
Heating pipes
PVC pipes
Multilayer pipes
Copper pipes

Further specifications

Key features:

It can be installed on E2000PB, E2000PG and 1000PVC profile, NP5x35 screw-plug, nylon FX Ø6+Ø4.5x45 screw
Closes automatically when pipe is pushed in; saves time and money
Halogen-free
For all types of plastic pipes (multilayer, polypropylene, polybutylene, ...)
Multiple fixing types with plug and screw, channels, threaded rod and nail plugs
The KIWA-approved clamp can be used for hot water pipes in a temperature range from -10°C to 90°C in continuous operation and in peaks from -25°C to 130ºC
