Threaded rod hammer-on flange beam clip CVA

To suspend threaded rod from beam flanges

CVA Beam Clamps for Threaded Rod Attachment

Product overview

The CVA clip is a CNBOP fire approved flange beam clip to suspend threaded rods from beams with flanges of thicknesses between 1.5 mm and 20 mm. Save time with the fast and stable fixings system to metal beams CVA: No drilling or welding required as the clip is simply hammered onto the flange.

The CVA clip is a CNBOP fire approved flange beam clip to suspend threaded rods from beams with flanges of thicknesses between 1.5 mm and 20 mm. Save time with the fast and stable fixings system to metal beams CVA: No drilling or welding required as the clip is simply hammered onto the flange.

The CVA hammer-on flange beam clip is specialised for the quick suspension of M6 and M8 threaded rods - ideal for fixing suspended ceilings and attaching pipe and conduit installaitons.

Benefit from 70 kg of safe working load.

Available in two coatings:

zinc aluminium grey flakes for high resistance to corrosion (480Hr. SST)
black coating for indoors

The zinc flake coating makes the beam clip suitable for indoor as well as outdoor, humid and corrosive environments and resistant to corrosion in salt water mist for up to 480 hours (DIN 50021).

Show more

Download documents

View videos

List of references

Filters

Internal thread

Flange thickness [mm]

Min. Flange Length [mm]

Coating

Reference

91546CVA

91548CVA

94106CVA

94108CVA

910156CVA

910158CVA

915206CVA

915208CVA

941546CVA

941548CVA

9410156CVA

9410158CVA

9415206CVA

9415208CVA

944106CVA

944108CVA

Internal thread

M6

M8

M6

M8

M6

M8

M6

M8

M6

M8

M6

M8

M6

M8

M6

M8

Flange thickness [mm]

1.5-4

1.5-4

4-10

4-10

10-15

10-15

15-20

15-20

1.5-4

1.5-4

10-15

10-15

15-20

15-20

4-10

4-10

Min. Flange Length [mm]

18

18

25

25

25

25

25

25

18

18

25

25

25

25

25

25

Coating

Zinc flake coating

Zinc flake coating

Zinc flake coating

Zinc flake coating

Zinc flake coating

Zinc flake coating

Zinc flake coating

Zinc flake coating

Painted black

Painted black

Painted black

Painted black

Painted black

Painted black

Painted black

Painted black

Material

Carbon spring steel

Carbon spring steel

Carbon spring steel

Carbon spring steel

Carbon spring steel

Carbon spring steel

Carbon spring steel

Carbon spring steel

Carbon spring steel

Carbon spring steel

Carbon spring steel

Carbon spring steel

Carbon spring steel

Carbon spring steel

Carbon spring steel

Carbon spring steel

Packaging units

50

50

50

50

50

50

50

50

50

50

50

50

50

50

50

50

Packaging type.

Box

Box

Box

Box

Box

Box

Box

Box

Box

Box

Box

Box

Box

Box

Box

Box

A

t

16 / 16 references

Applications

Threaded rods
Suspended structure
Lighting
Signage
Suspended installations
Ventilation pipes
Cable installation

Further specifications

Key features:

Quickly installs with just a hammer without drilling or welding

Zinc flake clamps and clips restistant to corrosion in salt water mist for up to 480 hours (DIN 50021)

Base materials

Suitable materials

Steel beam/purlin

Steel beam/purlin

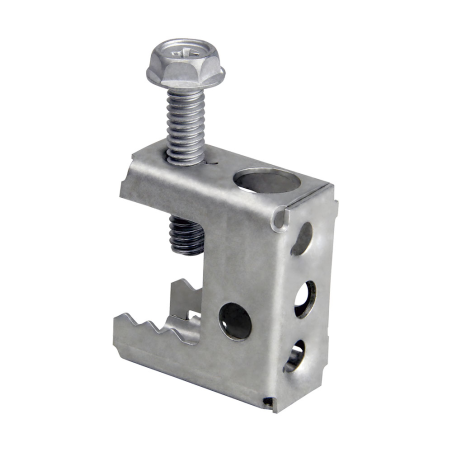

Other related products

How to install

Installation Guide Step 1 for CVA Beam Clamp

Mounted CVA Beam Clamp Ready for Use

Installation Guide for CVA Beam Clamp – Securing the Threaded Rod

Installation Guide Step for CVA Beam Clamp – Screwing on the Nut

Watch the video
