Concrete screw BTS6-C1 PTL, pan-head large

Quick mounting of fastening rails to concrete

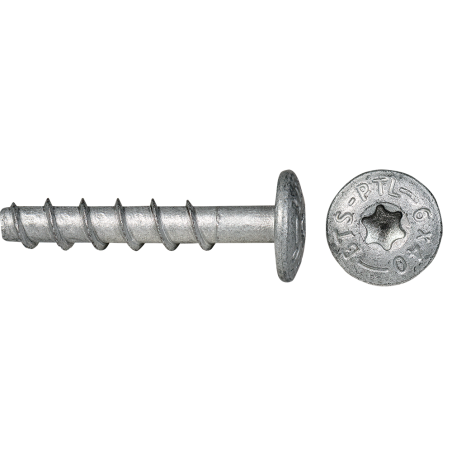

Product image of concrete screw BTS 6 PTL with large pan head

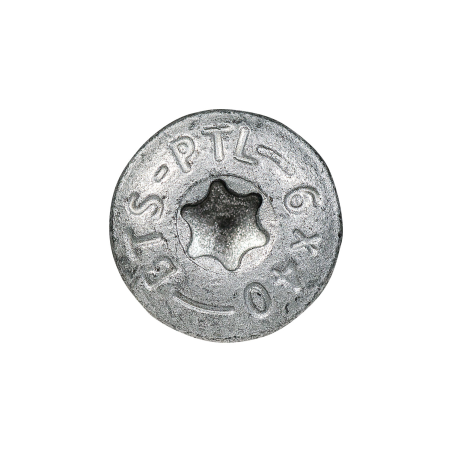

Product image of concrete screw BTS 6 PT with big pan head

Product overview

The BTS6-C1 PTL concrete screw is an Option 1 approved fastening solution in cracked and non-cracked concrete. It has successfully passed the pull out seismic tests according to the ACI 355.2 standard carried out by the Dictuc Institute. It is ideal for the quick and secure installation of mounting rails and more. The large pan head, with a diameter of 19 mm and TX 30 drive, allows for simple and efficient installation.

Thanks to the special accessories, installation can be completed in just two steps: drilling and fastening – all with the same tool. The zinc flake coating ensures high corrosion resistance, while the fire resistance class R 120 provides additional application safety. It has successfully passed the pull out seismic tests according to the ACI 355.2 standard carried out by the Dictuc Institute.

The BTS6-C1 is available with various head types, making it flexible for different applications. - View all different concrete screws

Download documents

View videos

List of references

Reference

9ZG670BTSC1PTL

Diameter [mm]

7.5

Length [mm]

Screw diameter [mm]

7.5

Anchor length [mm]

Drill hole diameter [mm]

Head diameter [mm]

Drill hole depth [mm]

55/70

Packaging units

100

Packaging type.

Box

1 / 1 references

Applications

Fastening rails
Metal profiles
Handrail
Lampposts
Support profiles

Further specifications

Key features:

ETA approved for non-cracked and cracked concrete (option 1)
Usable under seismic action

Fire resistance certificate R120
For fastening wall connection profiles, metal sheets, signs, etc. into insulation materials
Short length reduces risk of hitting rebar

Base materials
