Blister Multifunction frame plug MFR SB SSKS

The flexible frame plug for facade substructures, approved for all common base materials
Product image of blister MFR 10-115 countersunk plug with hex-head screw with integral washer

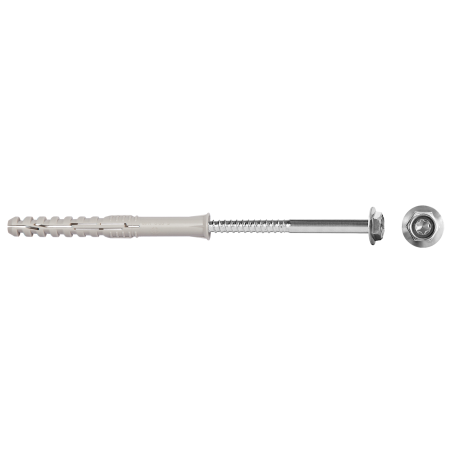

Product image of multifunction frame plug MFR 8 countersunk plug with hex head screw with integral washer, zinc plated
Product overview

The multifunction frame plug MFR SB SSKS (countersunk plug and hex-head screw with integral washer) is your ideal solution for universal mounting of facade substructures as well as wood and metal parts. As confirmed by the ETA assessment for concrete and masonry the MFR is approved for all common base materials like concrete, solid brick, perforated brick, aerated concrete and even for precast prestressed hollow core slabs.

Show more
List of references
Filters
Drill hole diameter [mm]
8
10
Close
Drill hole depth [mm]
60
60/80
Close
Anchorage depth [mm]
50
50/70
Close
Plug length [mm]
60
80
100
115
135
160
Close
Thickness of fixture [mm]
10
10/30
30/50
45/65
65/85
110/90
Close
Reference
d
J
5860MFRSB4
51080MFRSB4
510100MFRSB4
510115MFRSB4
510135MFRSB4
510160MFRSB4
Diameter [mm]
d
J
8
10
10
10
10
10
Length [mm]
d
J
60
80
100
115
135
160
Drill hole diameter [mm]
d
J
8
10
10
10
10
10
Drill hole depth [mm]
d
J
60
60/80
60/80
60/80
60/80
60/80
Anchorage depth [mm]
d
J
50
50/70
50/70
50/70
50/70
50/70
Plug length [mm]
d
J
60
80
100
115
135
160
Thickness of fixture [mm]
d
J
10
10/30
30/50
45/65
65/85
110/90
Packaging units
d
J
4
4
4
4
4
4
Packaging type.
d
J
Blister
Blister
Blister
Blister
Blister
Blister
A
t
6 / 6 references
Applications
  • Facade substructures made of wood and metal
  • Window and door frame fixings
  • Fire protection doors
  • Metal brackets, rails
  • Consoles
  • Wall cabinets
  • Panels
  • Square timber
  • Handrail
  • Doors
  • Paintings
Further specifications

Key features:

  • The universal frame plug for mounting facade substructures as well as wood and metal parts in all common base materials
  • The long expansion area and early expansion achieved by lateral bars ensure reliable and secure hold
  • Screw and plug are pre-assembled
  • The ETA approval guarantees a secure fixing in many building materials
  • Approved by company Hörmann for fire protection doors
  • High quality and ageing resistant nylon
  • Temperature resistant from -40°C to +80°C
  • Complies with the Regulation of Thermal Installations of Buildings 1027/2007 (RITE)

Base materials:

  • Concrete
  • Natural stone
  • Solid brick
  • Solid sand-lime brick
  • Aerated concrete
  • Hollow brick
  • Hollow sand-lime block
  • Lightweight hollow concrete block
  • Precast prestressed hollow core slabs
