Blister standard plug F with hook

The classic for solid base materials
Product image of blister standard plug F with chipboards screw
Technical drawing of standard plug F

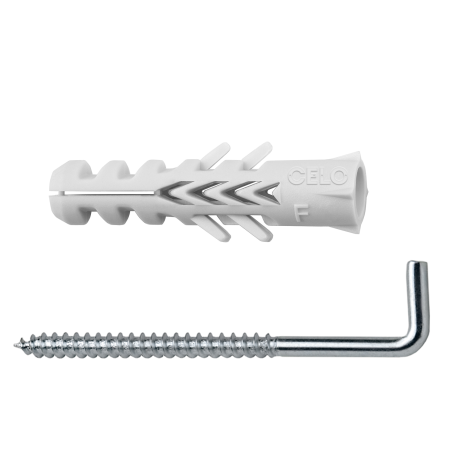

Product image of standard plug F with angle hook

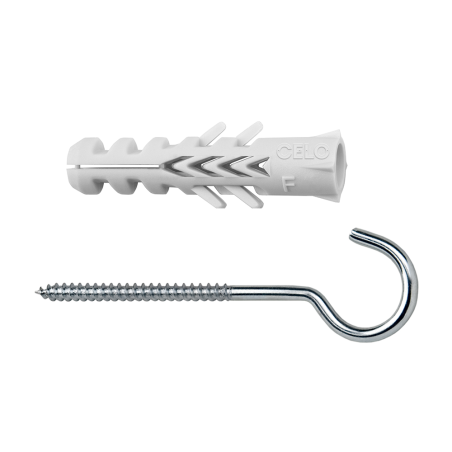

Product image of standard plug F with round hook
Mounting image F 1
Mounting image F 2
Mounting image F 3
Mounting image F 4
Mounting image F 5
Mounting image F 6
Product overview

Due to the high expansion ability and four-sided expansion in the middle section the standard plug F achieves high pull out loads and secure hold. The distinct wings at the plug cause a good twist resistance in the drill hole. Further more the strong design prevents bending when hammered in.

Show more
List of references
Filters
Reference
56NFWH5
56NFRH5
58NFWH5
58NFRH5
Close
Drill hole diameter [mm]
6
8
Close
Drill hole depth [mm]
40
55
Close
Anchorage depth [mm]
30
40
Close
Plug length [mm]
30
40
Close
Material
Nylon
Close
Screw material
Steel
Close
Coating
Galvanised
Close
Packaging units
5
Close
Packaging type
Blister
Close
Sort by
Column
Reference
Drill hole diameter [mm]
Drill hole depth [mm]
Anchorage depth [mm]
Plug length [mm]
Material
Screw material
Coating
Packaging units
Packaging type
Close
Sort direction
Ascending
Descending
Close
Reference
56NFWH5
56NFRH5
58NFWH5
58NFRH5
Drill hole diameter [mm]
6
6
8
8
Drill hole depth [mm]
40
40
55
55
Anchorage depth [mm]
30
30
40
40
Plug length [mm]
30
30
40
40
Material
Nylon
Nylon
Nylon
Nylon
Screw material
Steel
Steel
Steel
Steel
Coating
Galvanised
Galvanised
Galvanised
Galvanised
Packaging units
5
5
5
5
Packaging type
Blister
Blister
Blister
Blister
4 / 4 references are shown
Applications
  • Sanitary fixings
  • Lamps
  • Electric switches
  • Wall rack
  • Wall cabinets
  • Letterbox
  • Curtain rail
  • Handrail
  • TV holder
  • Paintings
Further specifications

Key features:

  • High pull out loads due to high expansion ability (four-sided expansion in the middle section)
  • Good load values even in many perforated bricks and aerated concrete
  • Very good captive screw, i.e. the screw cannot move out of the clamp during the screwing in
  • The distinctive anti-rotation wings prevent effectively spinning during the installation
  • Stable design and impact resistant material prevents bending when hitting in
  • High quality and ageing resistant nylon
  • Temperature resistant from -40°C to +80°C

Base materials:

  • Concrete
  • Natural stone
  • Solid brick
  • Solid sand-lime brick
  • Lightweight solid concrete block
  • Aerated concrete
  • Gypsum block
  • Hollow brick
  • Hollow sand-lime block
  • Lightweight hollow concrete block
