Blister multi-purpose plug MZK with hook or screw

The all-rounder for every base material

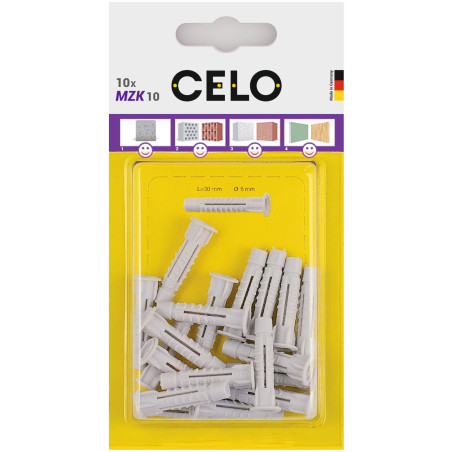

Product image of blister multi-purpose plug MZ with hex-head wood screw
Product overview

The multi-purpose plug MZK with collar has proved its talent a million times and is suitable for almost every building material. With the 4-sided expansion in solid building materials and the knotting in perforated bricks or board materials the plug always provides a secure fixing with high pull out loads. The plug collar inhibits slipping into the drill hole. Also the plug is compatible with many types and sizes of screws.

Show more
Download documents
View videos
List of references
Filters
Drill hole diameter [mm]
6
8
10
12
Close
Drill hole depth [mm]
50
60
40
75
90
Close
Anchorage depth [mm]
40
48
29
59
75
Close
Plug length [mm]
41
49
30
60
76
Close
Reference
d
J
5641MZKWH5
5641MZKRH5
58MZKWH5
58MZKRH5
56MZKSZ20
5641MZKSZ10
58MZKSZ8
510MZKK5
512MZKK2
Diameter [mm]
d
J
0
0
0
0
0
0
0
10
12
Length [mm]
d
J
0
0
0
0
0
0
0
60
72
Drill hole diameter [mm]
d
J
6
6
8
8
6
6
8
10
12
Drill hole depth [mm]
d
J
50
50
60
60
40
50
60
75
90
Anchorage depth [mm]
d
J
40
40
48
48
29
40
48
59
75
Plug length [mm]
d
J
41
41
49
49
30
41
49
60
76
Type of plug
d
J
with collar
with collar
with collar
with collar
with collar
with collar
with collar
with collar
with collar
Packaging units
d
J
5
5
5
5
20
10
8
5
2
Packaging type.
d
J
Blister
Blister
Blister
Blister
Blister
Blister
Blister
Blister
Blister
A
t
9 / 9 references
Applications
  • Wash basins
  • Wall-hung toilets
  • Lighting
  • Electric switches
  • Wall rack
  • Wall cabinets
  • Letterbox
  • Curtain rail
  • Handrail
  • TV holder
  • Paintings
Further specifications

Key features:

  • Knotting plug that has proven its qualities millions of times; excellent performance in almost every building material
  • The 4-sided expansion in solid building materials and the knotting in perforated bricks or board materials always ­provides a secure fixing with high pull out loads
  • High quality polyethylene guarantees long lasting elasticity and reliable knotting behaviour
  • Compatible with many types and sizes of screws
Base materials
Suitable materials
Concrete
Concrete
Natural stone
Natural stone
Solid brick
Solid brick
Solid sand-lime brick
Solid sand-lime brick
Lightweight solid concrete block
Lightweight solid concrete block
Aerated concrete
Aerated concrete
Gypsum block
Gypsum block
Hollow brick
Hollow brick
Hollow sand-lime block
Hollow sand-lime block
Lightweight hollow concrete block
Lightweight hollow concrete block
Fibreboards
Fibreboards
Chipboards
Chipboards
Other related products
How to install
Step 1
Step 2
Step 3
Step 4
Step 5
Step 6
Step 7
