Blister standard plug F

The classic for solid base materials

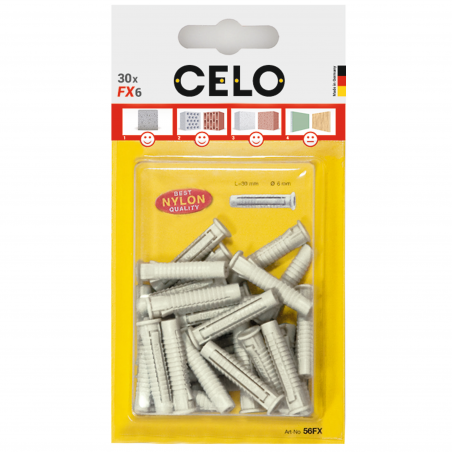

Product image of blister standard plug F
Product image of blister standard plug F

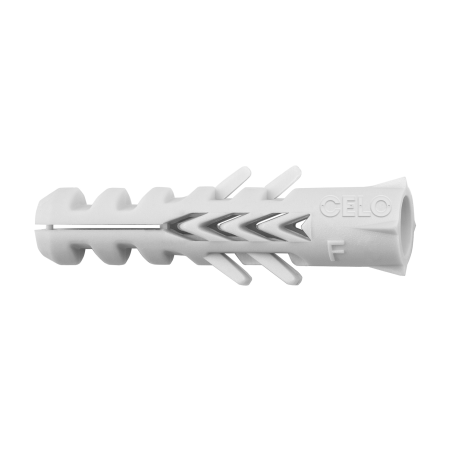

Product image of standard plug F
Product overview

Due to the high expansion ability and four-sided expansion in the middle section the standard plug F in blister achieves high pull out loads and secure hold. The distinct wings at the plug cause a good twist resistance in the drill hole. Further more the strong design prevents bending when hammered in.

Show more
Download documents
List of references
Filters
Reference
54NF20
54NF50
55NF20
55NF50
56NF20
56NF50
57NF20
57NF50
58NF20
58NF40
510NF5
510NF20
512NF5
512NF8
Close
Drill hole diameter [mm]
4
5
6
7
8
10
12
Close
Drill hole depth [mm]
30
35
40
55
70
80
Close
Anchorage depth [mm]
20
25
30
40
50
60
Close
Plug length [mm]
20
25
30
40
50
60
Close
Screw diameter [mm]
2-3
2.5-4
3.5-5
4-5.5
4.5-6
6-8
8-10
Close
Packaging units
20
50
40
5
8
Close
Sort by
Column
Reference
Drill hole diameter [mm]
Drill hole depth [mm]
Anchorage depth [mm]
Plug length [mm]
Screw diameter [mm]
Material
Packaging units
Packaging type.
Close
Sort direction
Ascending
Descending
Close
Reference
54NF20
54NF50
55NF20
55NF50
56NF20
56NF50
57NF20
57NF50
58NF20
58NF40
510NF5
510NF20
512NF5
512NF8
Drill hole diameter [mm]
4
4
5
5
6
6
7
7
8
8
10
10
12
12
Drill hole depth [mm]
30
30
35
35
40
40
40
40
55
55
70
70
80
80
Anchorage depth [mm]
20
20
25
25
30
30
30
30
40
40
50
50
60
60
Plug length [mm]
20
20
25
25
30
30
30
30
40
40
50
50
60
60
Screw diameter [mm]
2-3
2-3
2.5-4
2.5-4
3.5-5
3.5-5
4-5.5
4-5.5
4.5-6
4.5-6
6-8
6-8
8-10
8-10
Material
Nylon
Nylon
Nylon
Nylon
Nylon
Nylon
Nylon
Nylon
Nylon
Nylon
Nylon
Nylon
Nylon
Nylon
Packaging units
20
50
20
50
20
50
20
50
20
40
5
20
5
8
Packaging type.
Blister
Blister
Blister
Blister
Blister
Blister
Blister
Blister
Blister
Blister
Blister
Blister
Blister
Blister
14 / 14 references are shown
Applications
  • Sanitary fixings
  • Letterbox
  • Curtain rail
  • Handrail
  • Paintings
  • TV holder
  • Lamps
  • Electric switches
  • Wall rack
  • Wall cabinets
Further specifications

Key features:

  • High pull out loads due to high expansion ability (four-sided expansion in the middle section)
  • Very good captive screw, i.e. the screw cannot move out of the clamp during the screwing in
  • Good twist resistance
  • Stable design and impact resistant material prevents bending when hitting in
  • Good load values even in many perforated bricks and aerated concrete

Base materials:

  • Concrete
  • Natural stone
  • Solid brick
  • Solid sand-lime brick
  • Lightweight solid concrete block
  • Aerated concrete
  • Gypsum block
  • Hollow brick
  • Hollow sand-lime block
  • Lightweight hollow concrete block
How to install
Step 1
Step 2
Step 3
Step 4
Step 5
Step 6
