Nailing Conduit Metal Clip PFT

For fast installation of conduits with nailers.

Product overview

The nailing conduit metal clip PFT is the most suitable fixings system for installing cables, wires, fire alarm cables, (electrical) cables, flexible and rigid tubes, and heating pipes. Its R90 certificate ensures 90 minutes of integrity meaning that wiring systems support in such a way that they will not prematurely collapse in the event of a fire.

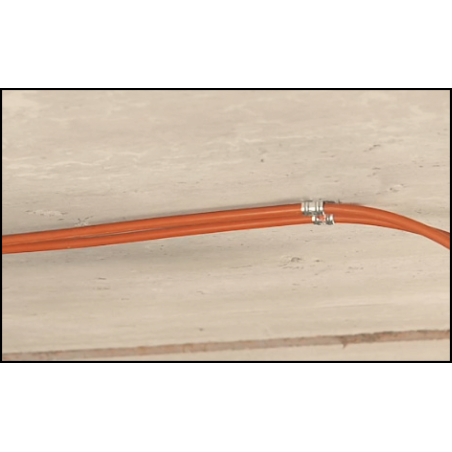

The PFT has been designed to fasten cables etc. primarily to the ceiling and walls. The impact-resistant clips are made to provide a premium alternative to plastic clips and enable their usage with the most powerful nailers.

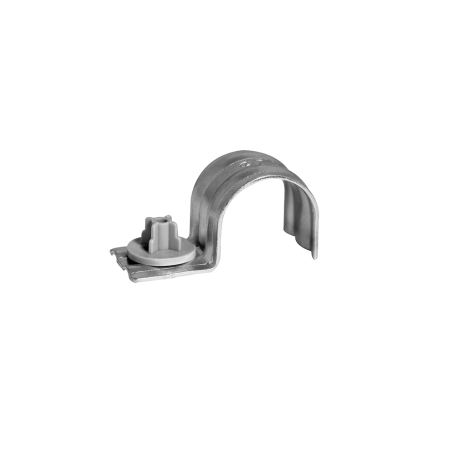

The FORCE ONE is the most compact and powerful gas nailer of its class with a huge range of applications. The PFT clip guarantees a secure fixing thanks to its support rib which provides higher stability and a secure hold. The plastic part of the PFT clip is attached to the nose of the nailing tool and can be mounted in no time.

For fire-rated applications, it is recommended that the nail is secured into a hard, fire-resistant surface.

Download documents

View videos

List of references

Reference

95PFT

96PFT

97PFT

98PFT

910PFT

912PFT

914PFT

916PFT

918PFT

920PFT

922PFT

925PFT

928PFT

932PFT

940PFT

950PFT

Diameter [mm]

4.5

6.5

7.5

9.5

11.5

13.5

15.5

17.5

19.5

21.5

24.5

27.5

31.5

39.5

49.5

Length [mm]

26.5

27.5

29.5

31.5

33.5

34.5

36.5

38.5

40.5

43.5

46.5

50.5

58.5

68.5

Height [mm]

3.8

5.5

11.5

13.5

18.5

20.5

23.5

26.5

30.5

38.5

48.5

Width [mm]

Material

Steel

Coating

White zinc plated

Packaging units

100

Packaging type.

Box

16 / 16 references are shown

Applications

Alarm cable
Telecommunications cable
Signal cable
PVC pipes
Flexible and rigid plastic insulating pipes
Heating pipes

Further specifications

Key features:

Two reinforcement ribs along the clip guarantee more resistance
Easy and quick installation on the ceiling thanks to the clip in the nailer nose, installation with only one hand
Supports between 6 and 10 kilos according to clip size
Fire approved with XHA nails
Coating 5 microns blue zinc plated

Base materials:

Steel
Concrete
Solid stone
Concrete block

How to install

Step 1
