Double wire conduit WDC

Cable installation accessory for nailers

Product overview

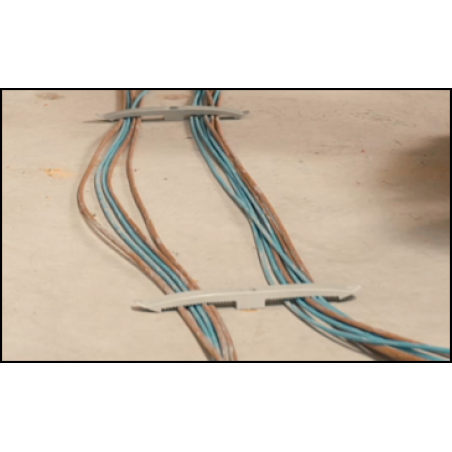

The double wire conduit WDC is a very versatile system and can be installed quickly with the FORCE ONE gas nailer. Several cables can be secured with only one fixing point.

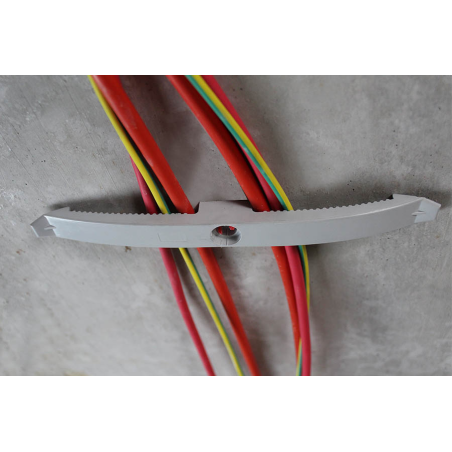

Attach the WDC to the nose of the nailer and install it in the desired place. After fixing, the cables are simply pushed under the two wings. It can also be fixed with a plug Ø6 or a nailplug.

WDC is halogen-free and RoHs compliant. Made in Germany of high-quality ageing-, weather-, and UV-resistant nylon.

Download documents

List of references

Filters

Sort by

Column

Sort direction

Reference

9WDC

Height [mm]

17.5

Width [mm]

Material

Nylon

Colour

Grey

Packaging units

Packaging type.

Box

1 / 1 references are shown

Applications

Cable fixing

Further specifications

Key features:

Allow being to expand the installation adding cables because the fixing is opened laterally
Optionally could be fixed with plug and screw (FX Ø6 + Ø4,5x45)
Halogen-free
Compatible with gas nailers FORCE ONE, HILTI (GX100), Würth DIGA C3 , Rawlplug. SPIT
RoHS approved

Base materials:

Steel
Concrete
Solid stone
Concrete block

How to install

Step 1

Step 2

Step 3
