Vanity installation set WT

Special vanity installation set for wash basins
Product image of vanity installation set WT
Technical drawing of vanity installation set WT

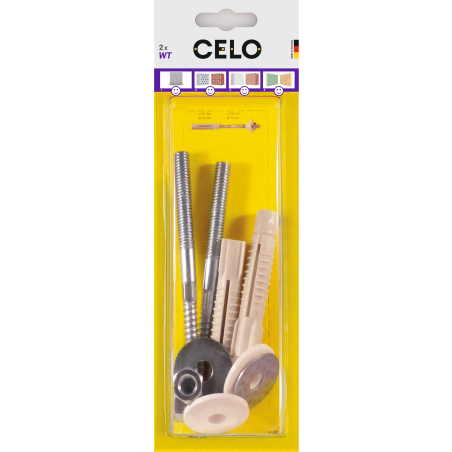

Product image of blister vanity installation set WT
Mounting image WT 1
Montagebild WT 2
Mounting image WT 3
Mounting image WT 4
Product overview

The vanity installation set WT is perfectly suitable for fastening of wash basins on nearly all base materials. The two multi-purpose plugs MZ available in the set, which have proven themselves a million times over, spread out in four directions in solid building materials, while they knot in perforated bricks or behind drywall walls. The plug made of high-quality polyethylene guarantees permanent elasticity and best knotting behaviour when screwing in the hanger bolt with M10 connecting thread and TX drive.

Show more
List of references
Filters
Reference
910140WT
5WT2
Close
Packaging type.
Tubular foil
Blister
Close
Sort by
Column
Reference
Drill hole diameter [mm]
Drill hole depth [mm]
Plug length [mm]
Thickness of fixture [mm]
Material
Packaging units
Packaging type.
Close
Sort direction
Ascending
Descending
Close
Reference
910140WT
5WT2
Screw diameter [mm]
14
0
Screw length [mm]
75
0
Drill hole diameter [mm]
14
14
Drill hole depth [mm]
85
85
Plug length [mm]
75
75
Thickness of fixture [mm]
40
40
Material
Polyethylene
Polyethylene
Packaging units
2
2
Packaging type.
Tubular foil
Blister
2 / 2 references are shown
Applications
  • Wash basins
Further specifications

Key features:

  • Sets with multi-purpose plug MZ can be used for nearly all building materials
  • Hanger bolts with TX recess for easy and fast installation
  • Solid washers for strong hold
  • Plastic washers with collar protect the ceramic
  • The 4-sided expansion in solid building materials and the knotting in perforated bricks or board materials always ­provides a secure fixing with high pull out loads
  • High-quality polyethylene guarantees long-lasting ­elasticity and consequently no brittle breaks, even after years

Base materials:

  • Concrete
  • Natural stone
  • Solid brick
  • Fibreboards
  • Solid sand-lime brick
  • Lightweight solid concrete block
  • Aerated concrete
  • Hollow sand-lime block
  • Lightweight hollow concrete block
  • Chipboards
  • Gypsum block
  • Hollow brick
