Blister Vanity installation set WT

Special vanity installation set for wash basins

Product image of blister vanity installation set WT

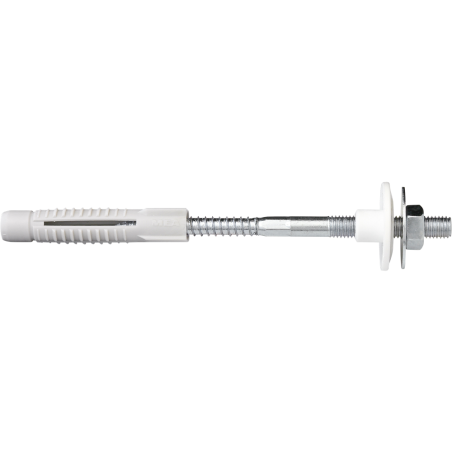

Product image of vanity installation set WT

Product overview

The vanity installation set WT in the handy blister is perfectly suitable for fastening of wash basins on nearly all base materials. The two multi-purpose dowels MZ available in the set, which have proven themselves a million times over, spread out in four directions in solid building materials, while they knot in perforated bricks or behind drywall walls. The plug made of high-quality polyethylene guarantees permanent elasticity and best knotting behaviour when screwing in the hanger bolt with M10 connecting thread and TX drive.

A solid metal washer and a M10 hex-head nut ensure a secure hold. The plastic washer 35x11x1.5 with collar protects the ceramic.

Discover our WT blister - ready to use for wash basins fastening.

2x plugs MZ 14,

2x hanger bolts M 10 x 140 (galvanised),

2x flanged bushes M10

2x washers 35 x 11 x 1,5 mm,

2x hex-head nuts M 10 (galvanized).

Download documents

List of references

Reference

5WT2

Drill hole diameter [mm]

Drill hole depth [mm]

Screw length [mm]

140

Plug length [mm]

Thickness of fixture [mm]

Screw diameter [mm]

Material

Polyethylene

Packaging units

Packaging type.

Blister

1 / 1 references are shown

Applications

Wash basins

Further specifications

Key features:

Sets with multi-purpose plug MZ can be used for nearly all building materials
Hanger bolts with TX recess for easy and fast installation
Solid washers for strong hold
Plastic washers with collar protect the ceramic
The 4-sided expansion in solid building materials and the knotting in perforated bricks or board materials always provides a secure fixing with high pull out loads
High-quality polyethylene guarantees long-lasting elasticity and consequently no brittle breaks, even after years
