Multicable hanger metal clamp CH

Installation of multiple cables in walls and ceilings with standard fasteners.
Multicable hanger metal clamp CH
Product overview

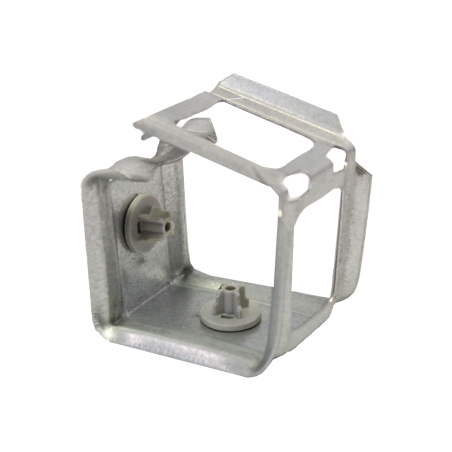

The metal clamp CH for all types of cables has a side cover to insert easily the cables. Cable laying in intermediate partitions (walls or ceilings). Distance between clamps 30 mm to max 60 cm. It can be installed on a wall or ceiling easily, with a direct anchor screw to concrete or with a plug and screw. In addition, different cable diameters can be installed at the same time. Fire approval.

Download documents
View videos
List of references
Reference
d
J
94055CH
95580CH
Diameter [mm]
d
J
12
12
Length [mm]
d
J
33.5
49
Height [mm]
d
J
57
79
Width [mm]
d
J
32
32
Packaging units
d
J
100
50
Packaging type.
d
J
Box
Box
2 / 2 references are shown
Applications
  • Alarm cable
  • Telecommunications cable
  • Signal cable
  • Cable installation
Further specifications

Key features:

  • Allows to extend the installation of cables easily and quickly
  • Lateral opening, no need to remove the clamp
  • Easy installation to ceiling or wall
  • Fire resistance certificate
  • Hole to fix to ceiling diameter 7 mm
  • Size of hole for fixing to wall diameter 12 mm

Base materials:

  • This product is not installed directly on a base material
