Standard plug FL extra long

The extra long plug for problematic building materials

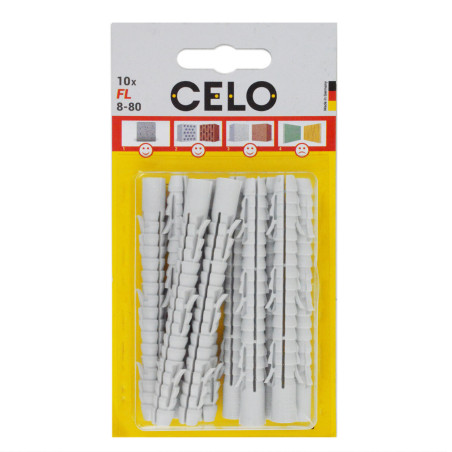

Product image of standard plug FL long
Product overview

Standard plug FL - the all-rounder for old buildings and your solution for challenging base materials!

Show more
List of references
Filters
Screw diameter [mm]
3.5
7
Close
Drill hole diameter [mm]
6
8
10
Close
Drill hole depth [mm]
70
90
105
Close
Anchorage depth [mm]
60
80
90
Close
Plug length [mm]
60
80
100
120
90
Close
Packaging type.
Box
Blister
Close
Reference
d
J
9660FL
9880FL
98100FL
98120FL
91090FL
5660FL10
5880FL10
51090FL5
Diameter [mm]
d
J
6
8
8
8
10
6
8
10
Length [mm]
d
J
60
80
100
120
90
60
80
90
Screw diameter [mm]
d
J
3.5-4.5
4.5-5.5
4.5-5.5
4.5-5.5
6-7
3.5-4.5
4.5-5.5
6-7
Drill hole diameter [mm]
d
J
6
8
8
8
10
6
8
10
Drill hole depth [mm]
d
J
70
90
90
90
105
70
90
105
Anchorage depth [mm]
d
J
60
80
80
80
90
60
80
90
Plug length [mm]
d
J
60
80
100
120
90
60
80
90
Packaging units
d
J
100
50
50
50
25
10
10
5
Packaging type.
d
J
Box
Box
Box
Box
Box
Blister
Blister
Blister
A
t
8 / 8 references
Applications
  • Lighting
  • Electric switches
  • Wall rack
  • Wall cabinets
  • Letterbox
  • Curtain rail
  • TV holder
  • Paintings
  • Sanitary fixings
  • Handrail
Further specifications

Key features:

  • The extra long expansion area enables fixings in solid and perforated material with dense and porous structure (e.g. old buildings)
  • The multiple wing construction secures an anti-rotating effect
  • Suitable for pre-inserted mounting and through-mounting
  • Suitable for reduced setting depth for bridging thin ­insulations, plaster, etc.
  • High quality and ageing resistant nylon
  • Temperature resistant from -40°C to +80°C
Base materials
Suitable materials
Concrete
Concrete
Natural stone
Natural stone
Solid brick
Solid brick
Solid sand-lime brick
Solid sand-lime brick
Lightweight solid concrete block
Lightweight solid concrete block
Gypsum block
Gypsum block
Hollow brick
Hollow brick
Hollow sand-lime block
Hollow sand-lime block
Lightweight hollow concrete block
Lightweight hollow concrete block
Aerated concrete
Aerated concrete
Other related products
How to install
Step 1
Step 2
Step 3
Step 4
Step 5
Step 6
