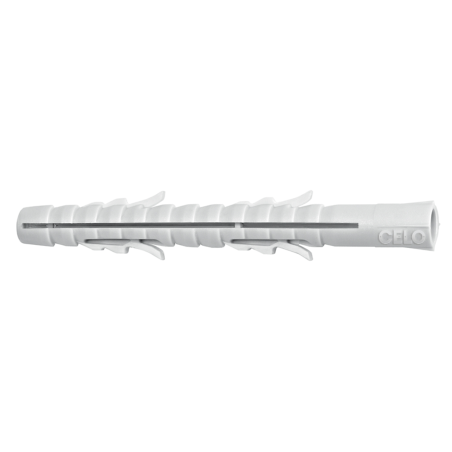

Blister Standard plug FL extra long
The extra long plug for problematic building materials
Product overview
Show more
Standard plug FL - the all-rounder for old buildings and your solution for challenging base materials!
List of references
Filters
Sort by
Reference
Close
5660FL10
5880FL10
51090FL5
Drill hole diameter [mm]
Close
6
8
10
Drill hole depth [mm]
Close
70
90
105
Anchorage depth [mm]
Close
60
80
90
Plug length [mm]
Close
60
80
90
Screw diameter [mm]
Close
3.5-4.5
3.5-5.5
6-7
Packaging units
Close
10
5
Column
Close
Reference
Drill hole diameter [mm]
Drill hole depth [mm]
Anchorage depth [mm]
Plug length [mm]
Screw diameter [mm]
Packaging units
Packaging type.
Sort direction
Close
Ascending
Descending
Reference
5660FL10
5880FL10
51090FL5
Diameter [mm]
6
8
10
Length [mm]
60
80
90
Drill hole diameter [mm]
6
8
10
Drill hole depth [mm]
70
90
105
Anchorage depth [mm]
60
80
90
Plug length [mm]
60
80
90
Screw diameter [mm]
3.5-4.5
3.5-5.5
6-7
Packaging units
10
10
5
Packaging type.
Blister
Blister
Blister
3 / 3 references are shown
Applications
- Sanitary fixings
- Lamps
- Electric switches
- Wall shelves
- Wall rack
- Letterbox
- Curtain rail
- Handrail
- TV holder
Further specifications
Key features:
- The extra long expansion area enables fixings in solid and perforated material with dense and porous structure (e.g. old buildings)
- The multiple wing construction secures an anti-rotating effect
- Suitable for pre-inserted mounting and through-mounting
- Suitable for reduced setting depth for bridging thin Âinsulations, plaster, etc.
- High quality and ageing resistant nylon
- Temperature resistant from -40°C to +80°C
Base materials:
- Concrete
- Natural stone
- Solid brick
- Solid sand-lime brick
- Lightweight solid concrete block
- Aerated concrete
- Gypsum block
- Hollow brick
- Hollow sand-lime block
- Lightweight hollow concrete block
How to install
Step 1
Step 2
Step 3
Step 4
Step 5
Step 6
