M6 stud Hammer-on flange beam clip CAB

for clamp fixing, suspending threaded rods and hooks

CAB Beam Clamps in Grey and Black – Mounting Accessories

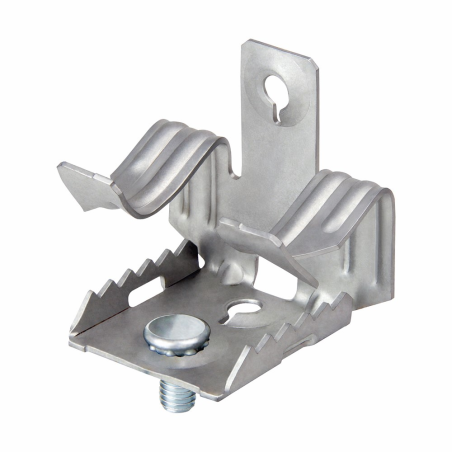

Single CAB Beam Clamp with Zinc-Aluminum Flake Coating

Product overview

The CAB clip is a CNBOP fire approved flange beam clip for hanging clamps and threaded elements or support boxes on beams with flange widths between 1.5 mm and 20 mm. No drilling or welding is required as the clamp is simply hammered onto the flange. That way the fast and stable hammer-on beam clip CAB offers a time-saving soluton for fixing to metal beams.

The fast beam clip CAB is versatile in use:

Its pre-mounted M6x9 screw is ideally suited to fix clamps and other threaded elements, eye bolt etc. for the installations on beams.

In addition, CAB features two M6 internal threads to hold a threaded rod and a side hole for wires.

Benefit from 33 kg of safe working load on the M6x9 screw and 45 kg on the M6 nut.

Save time with the CAB beam clip which is installed with a simple hammer avoiding drilling or welding.

Available in two coatings:

Zinc aluminum grey flakes for high resistance to corrosion (480Hr. SST)
Black coating for indoor use

The zinc flake coating makes the beam clip CMV suitable for indoor as well as outdoor, humid and corrosive environments and restistant to corrosion in salt water mist for up to 480 hours (DIN 50021).

Download documents

View videos

List of references

Filters

Flange thickness [mm]

Coating

Reference

9376CAB

94376CAB

97136CAB

94713CAB

914206CAB

941420CAB

Min. Flange Length [mm]

Flange thickness [mm]

3-7

7-13

14-20

Screw length [mm]

Screw diameter [mm]

Internal thread

Coating

Zinc flake coating

Black painted

Zinc flake coating

Black painted

Zinc flake coating

Black painted

Material

Carbon spring steel

Packaging units

Packaging type.

Box

6 / 6 references

Applications

PVC pipes
Cooper pipes
Steel pipes
Connection boxes
Hanging clamps
Threaded rods

Further specifications

Key features:

Easy and fast installation saves time and money
Parts combined to adapt to any requirement (application, corrosion, beam flange thickness...)
Quickly installs with just a hammer without drilling nor welding
Fire approved according to CNBOP lab.
Zinc flake clamps and clips restistant to corrosion in salt water mist for up to 480 hours (DIN 50021)
Versatile
