Set screw beam clamp PMV

Suspension of threaded rods from beam flanges

PMV Beam Clamp for Threaded Rod Mounting

Product overview

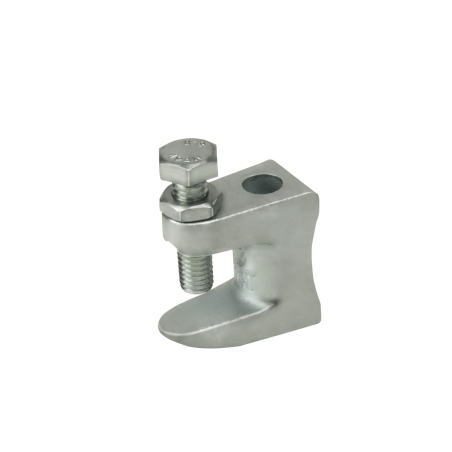

The setscrew PMV is a certified heavy load flange beam clamp to suspend threaded rods from beams with flange thicknesses up to 26 mm. You save time with the PMV beam clamp, as clamp, hexagon head screw and lock nut are pre-assembled and can be used directly. The PMV setscrew is quickly installed without drilling or welding simply by tightening the screw. Plus, for further time-saving, hexagon head screw and lock nut can be tightened with the same key.

The set screw beam clamp PMV is your solution for heavy-duty mounting, with load values verified by independent institutes. This makes it the ideal beam clamp for suspending threaded rods, heating, ventilation systems, pipe and sanitary installations, sprinkler systems steel construction and more.

Galvanised and with a body made of malleable cast iron, the setscrew beam clamp holds the Underwriters Laboratories (UL) certification for products of safety, is FM-approved, a certification recognised by the world's leading regulatory authorities complies, complies VdS guidelines and is CNBOP-approved in regards to fire protection.

This makes the set screw PMV your go-to product for the safe and durable installation of threaded rods on beam flanges.

Download documents

View videos

List of references

Filters

Flange thickness [mm]

Min. Flange Length [mm]

Width [mm]

Height [mm]

Internal thread

Reference

98PMV

910PMV

912PMV

Length [mm]

Flange thickness [mm]

< 18mm

< 23 mm

< 26mm

Min. Flange Length [mm]

Width [mm]

23.5

Height [mm]

Internal thread

M10

M12

Coating

Galvanised

Packaging units

Packaging type.

Box

3 / 3 references

Applications

Suspended structure
Electrical installations
Industrial HVAC
Threaded rods
Sprinkler systems
Heating pipes
Ventilation lines
Air conditioning pipes
Steel constructions

Further specifications

Key features:

Easy and fast installation saves time and money
Quick assembly without drilling or welding simply by tightening the screw
VdS, FM and UL approved
Can be used directly, as the clamp, hexagon head screw and lock nut are pre-assembled
Time saving, as hexagon head screw and lock nut can be tightened with the same key
Body made of malleable cast iron - Made in Germany, galvanised according to DIN EN ISO 4042

Base materials:

Steel beam/purlin

Other related products

How to install

Step 1

Step 2

Step 3

Step 4

Step 5

Step 6

Watch the video
