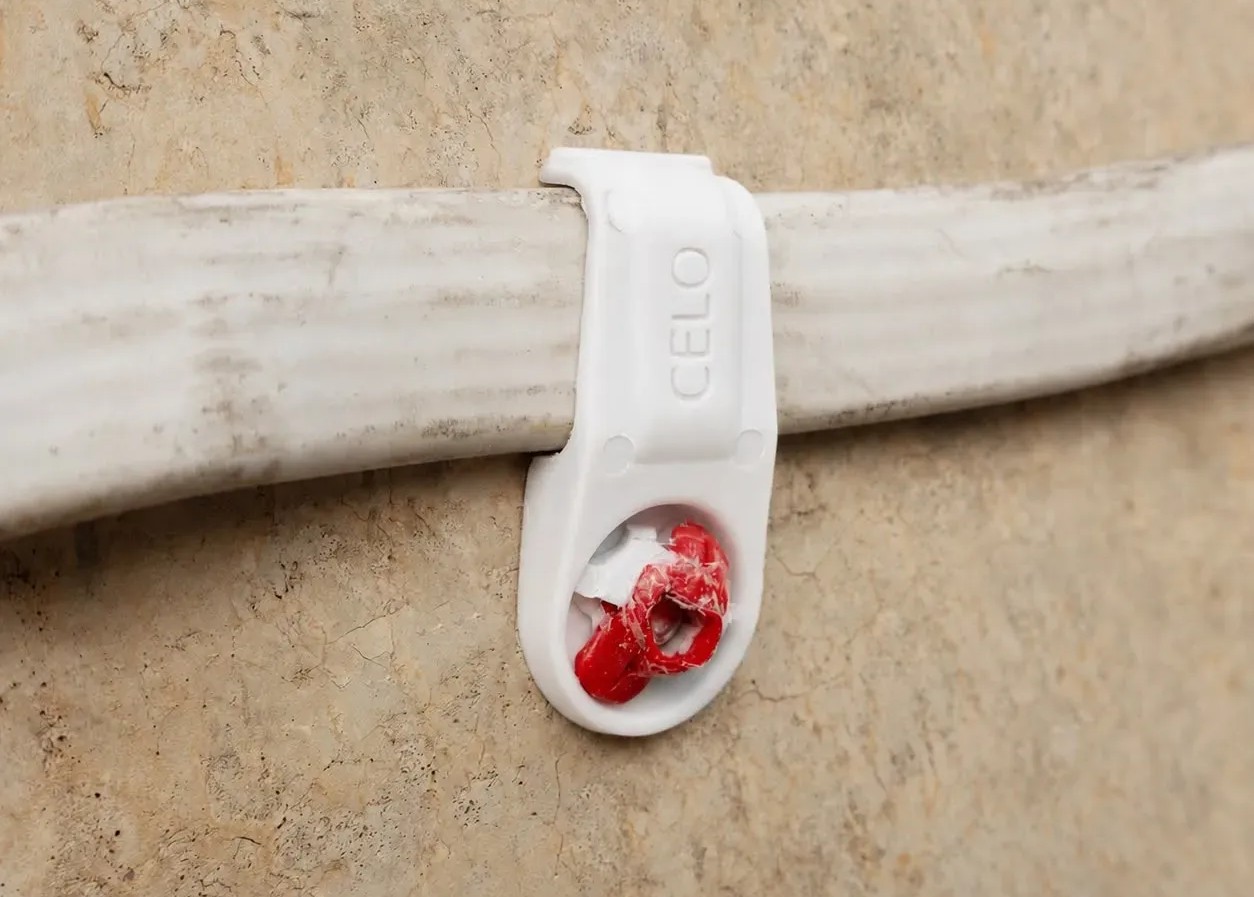

New clip TPCB for flat cables
Secure flat cables in 2 seconds
Why use the TPCB clamp?
Standard fixing methods for 5 × 2.5 and 5 × 1.5 mm cables are slow and messy. But the TPCB clips install in only two steps:
1. Nail-in clip
2. Insert and screw
Also, the TPCB clamps are compatible with the FORCE ONE+ and FOX gas nailers, making them easier and even faster for on-site installations on concrete, aerated concrete blocks, solid brick, or steel.
Suitable for many base materials
The TPCB clip works across a wide range of base materials, from brittle substrates to hard ones and metal, so on the construction site, one product is enough for a wide range of tasks.
Concrete
Aerated concrete blocks
Solid brick
Steel
Wood
Fast 2-step installation

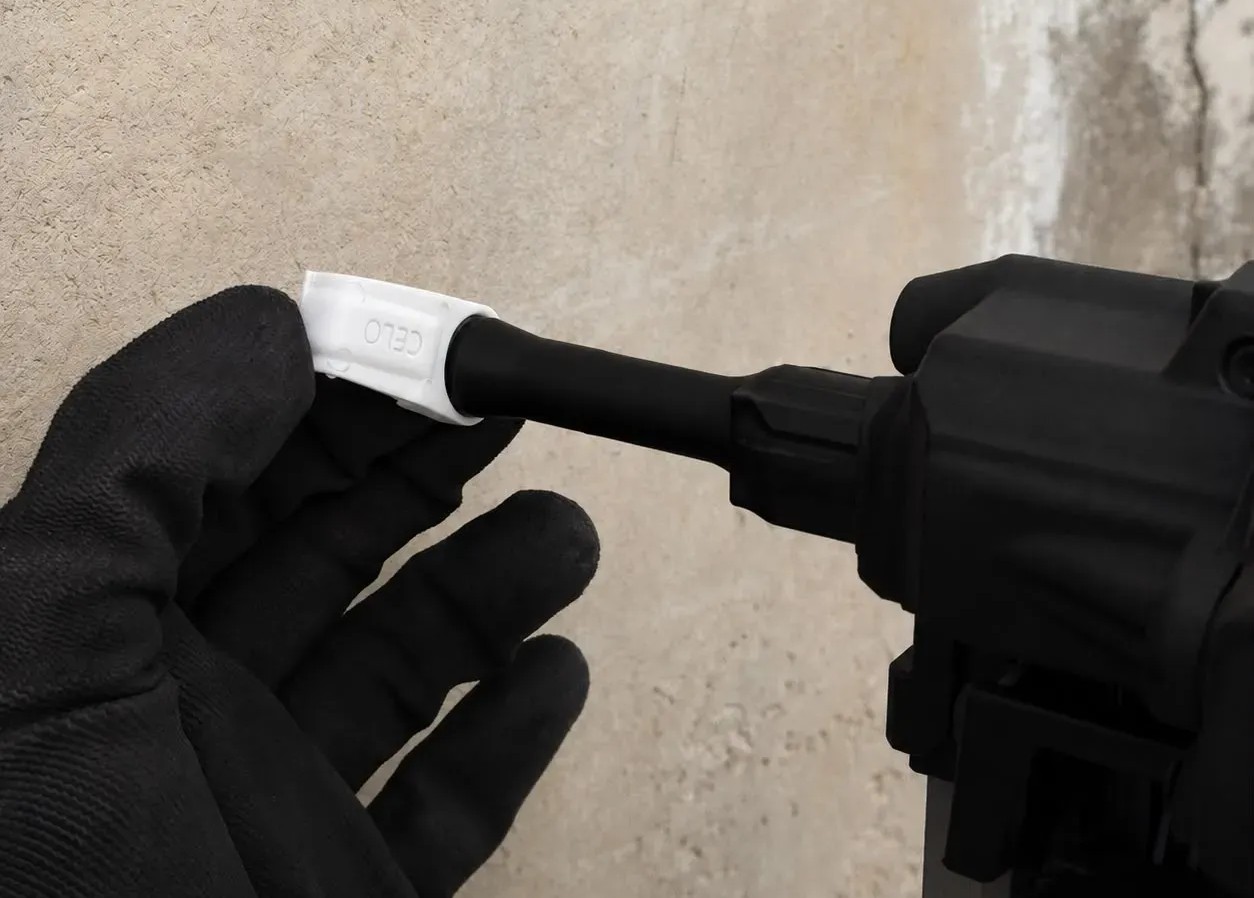

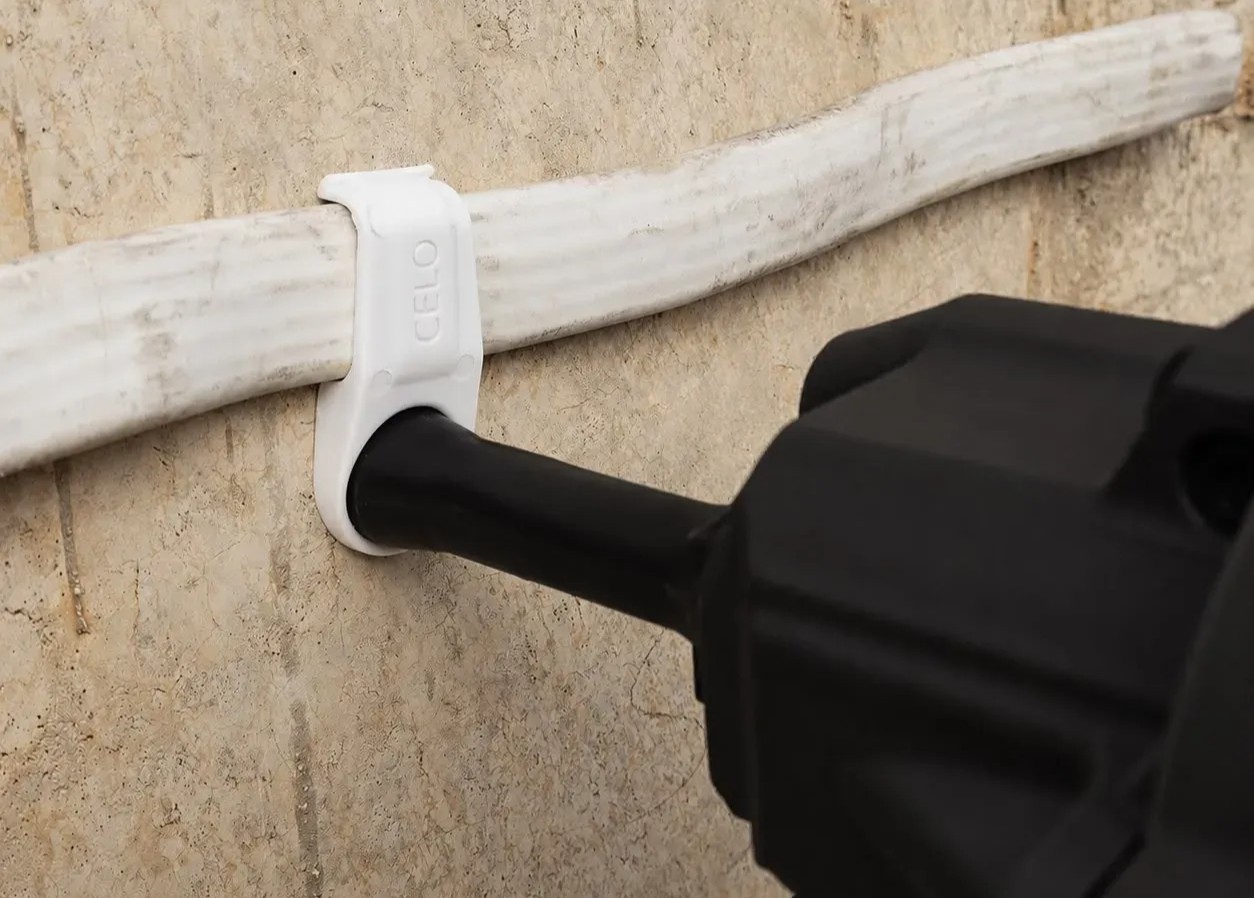

Installing a TPCB clip is a simple two-step process: place the clip on the nose of the nail-in tool, and pull the trigger — the cable is secured in seconds.
No drilling, no screwing, and no additional tools are required, making it a fast and tidy way to route flat cable.
Discover the full range of TPC series products
Discover the full range of the TPC series from CELO. One family, many clips — choose the right one for your cable and substrate.
FAQ - frequently asked questions

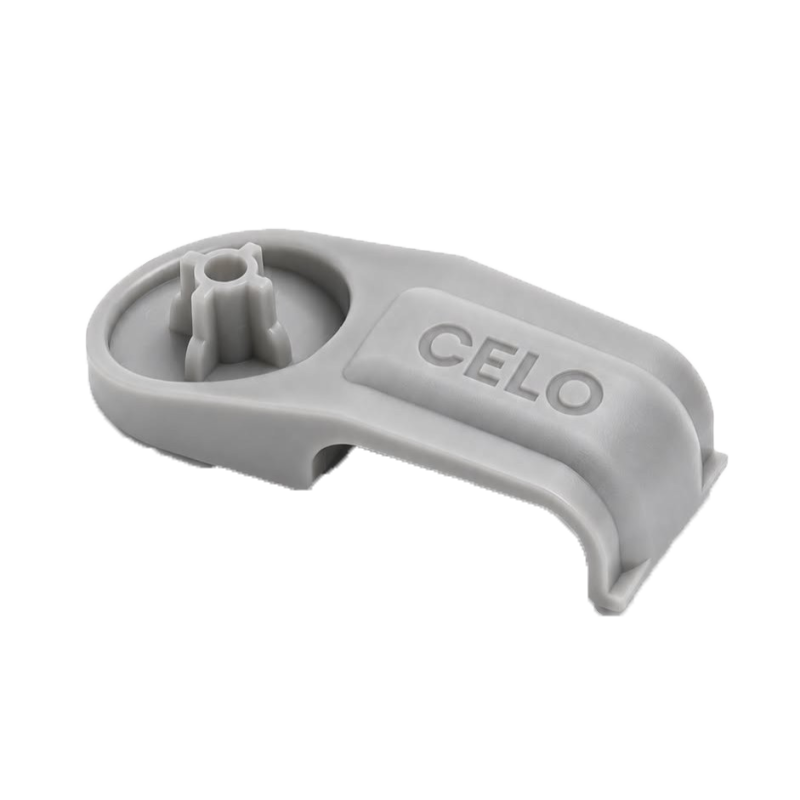

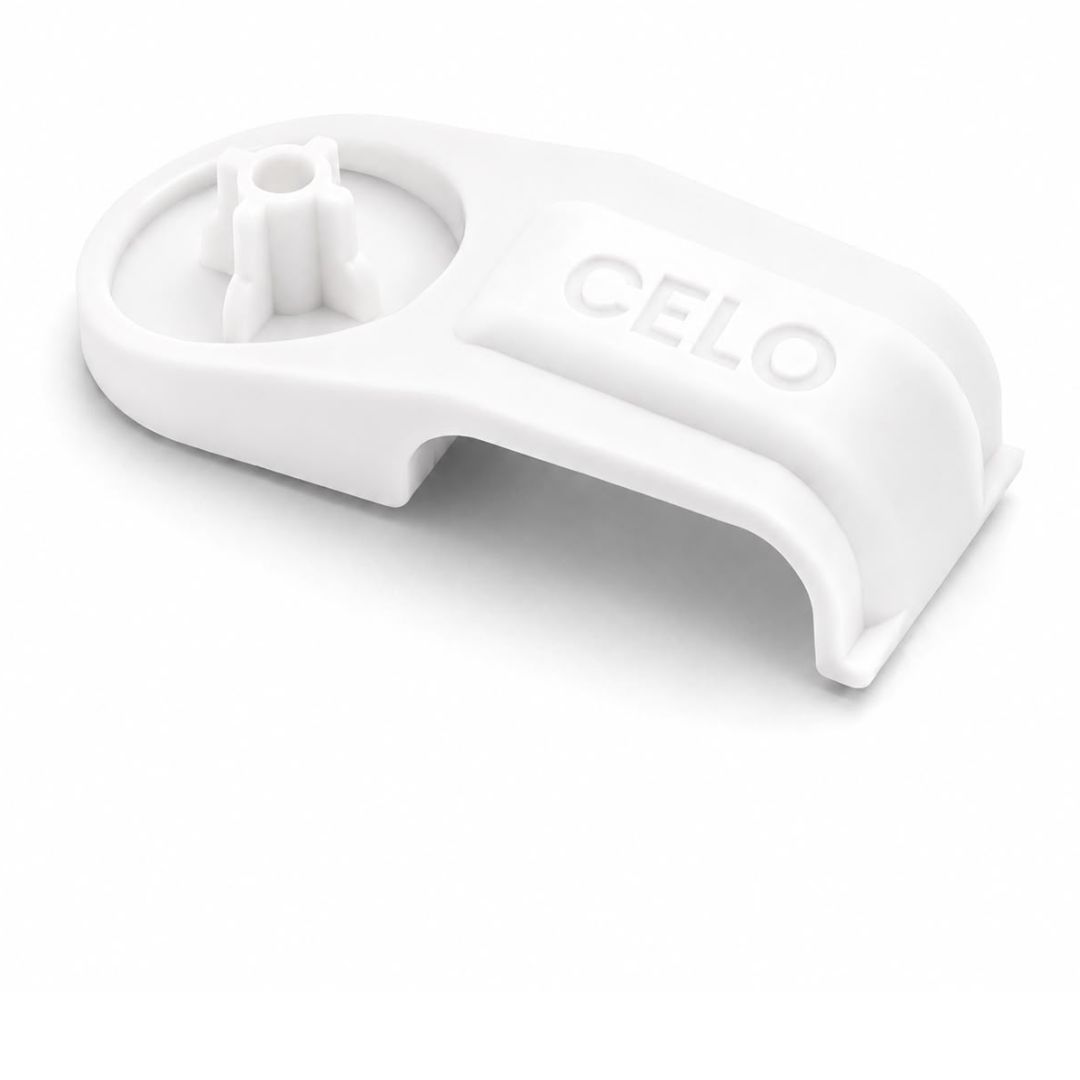

TPCB is a clip for securing flat cables in electrical installations that provides fast, neat, and secure installation.
Concrete, aerated concrete blocks, solid brick, steel, and wood.
The TPCB clip can be used to fix 5 × 2.5 mm and 5 × 1.5 mm cables.
The TPCB clip is made of high-density polyethylene (HDPE), a durable material.
There are two ways of installing the TPCB clip, depending on your needs:
With a nail gun (nail-in tool), or the traditional way: hammer + Ø4 mm screw (the "insert and screw" system.
Length L: 41.4 mm
Height H: 19 mm
Width B: 10.3 mm
C max.: 18.8 mm
When installing flat cables, in electrical installations in residential construction, and everywhere where fast installation and an aesthetic finish matter.
