ResiTHERM 12 wood
Heavy-duty distance mounting system for insulated timber façades
What is ResiTHERM® 12 wood?

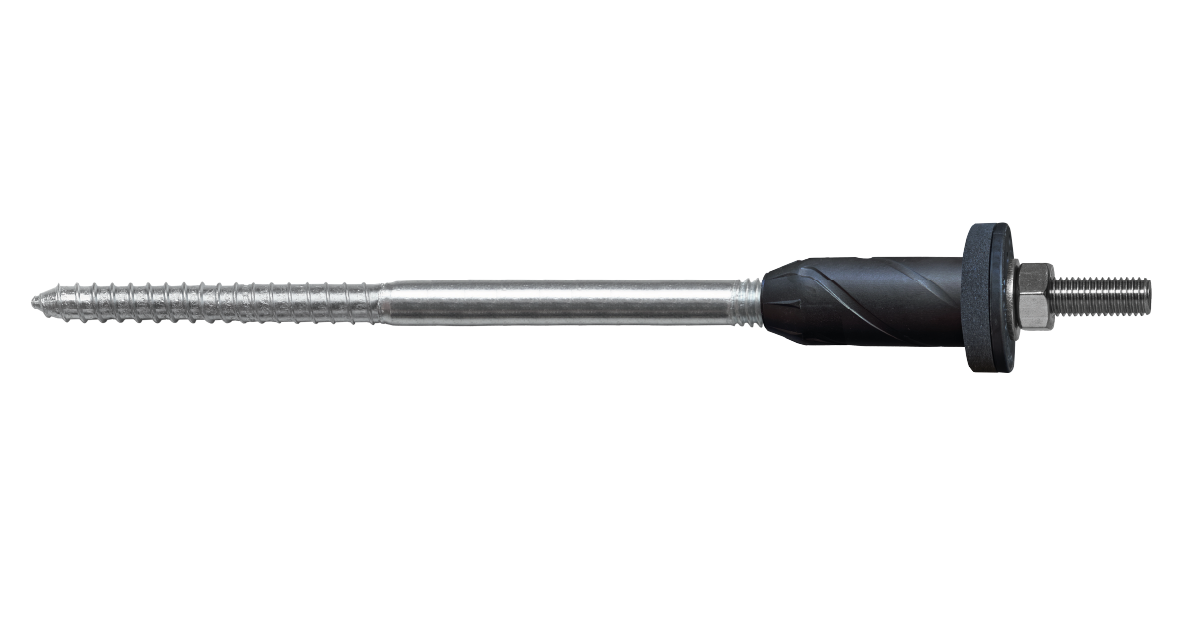

ResiTHERM® 12 wood is a heavy-duty distance mounting system for fixing to insulated timber façades. It is mechanically anchored directly into the timber using a hanger bolt, ensuring reliable load transfer into the load-bearing substrate.
The thermal separation module reduces thermal bridging, while the integrated weather- and UV-resistant EPDM sealing ring seals the fixing point at the rendered surface.
ResiTHERM® 12 wood is designed for insulation thicknesses from 60 to 160 mm and offers various connection options for different fixing applications.
Developed for fixing into timber
Fixing heavy loads to insulated timber façades presents specific challenges: the load must be safely transferred into the load-bearing timber structure without relying on the insulation for load support.
ResiTHERM® 12 wood was specifically developed for this type of installation. It is mechanically anchored directly into the timber using a hanger bolt, while the thermal separation module provides reliable load support and reduces thermal bridging.

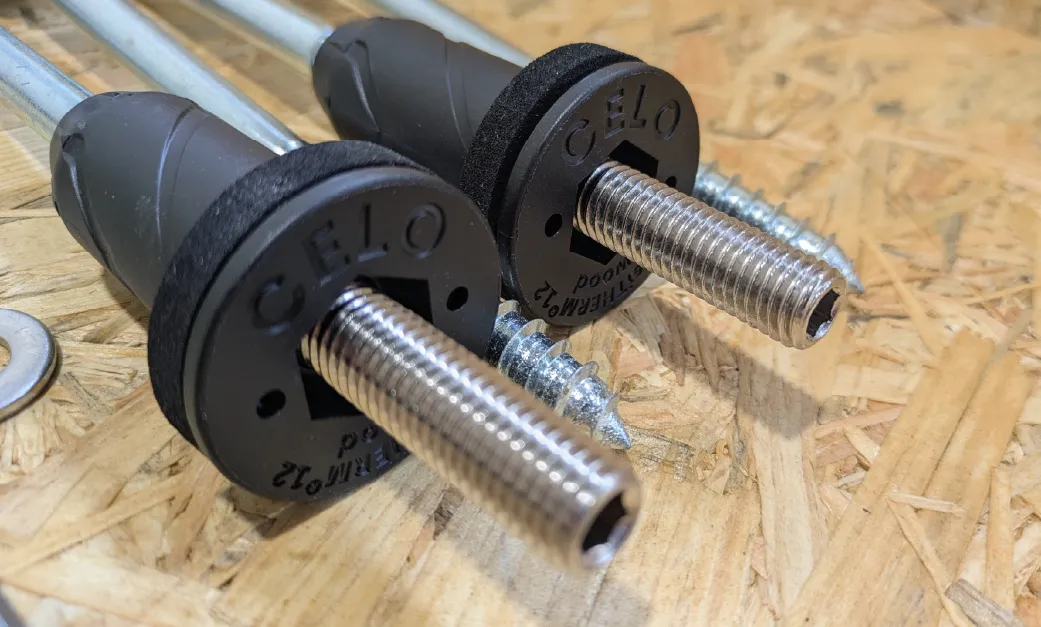

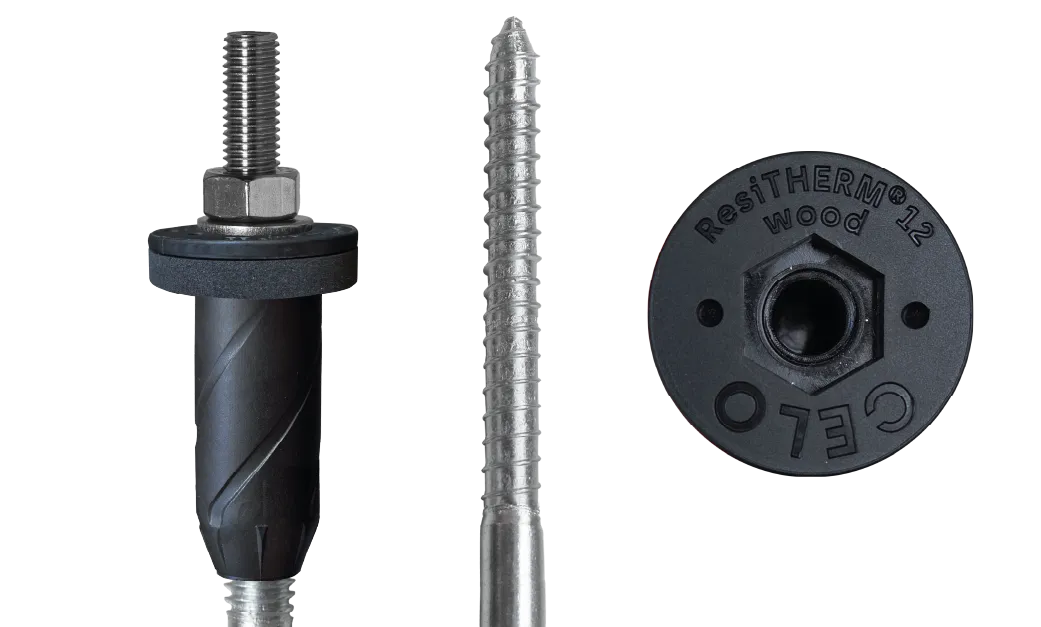

Key technical features
- For heavy loads: Designed for demanding fixing applications on insulated timber façades
- For 60–160 mm insulation thickness: Supplied as a ready-to-use, pre-assembled set
- Direct anchoring into timber: Mechanical fixing using a hanger bolt
- Thermally separated: Separation module made of durable PA6GF40
- Integrated sealing: Weather- and UV-resistant EPDM sealing ring
- No special installation tools required: For fast and reliable installation
Designed for real-world applications
From thermal separation to easy installation: ResiTHERM® 12 wood combines well-designed features for reliable fixing to insulated timber façades
Effective thermal separation
To reduce thermal bridging
Driving rain resistant
Thanks to the weather- and UV-resistant EPDM sealing ring
Efficient installation
Time- and cost-saving, with no special tools required
High-quality materials
With components made of A4 stainless steel
Made in Germany
Manufactured at CELO’s production site in Germany
Typical applications

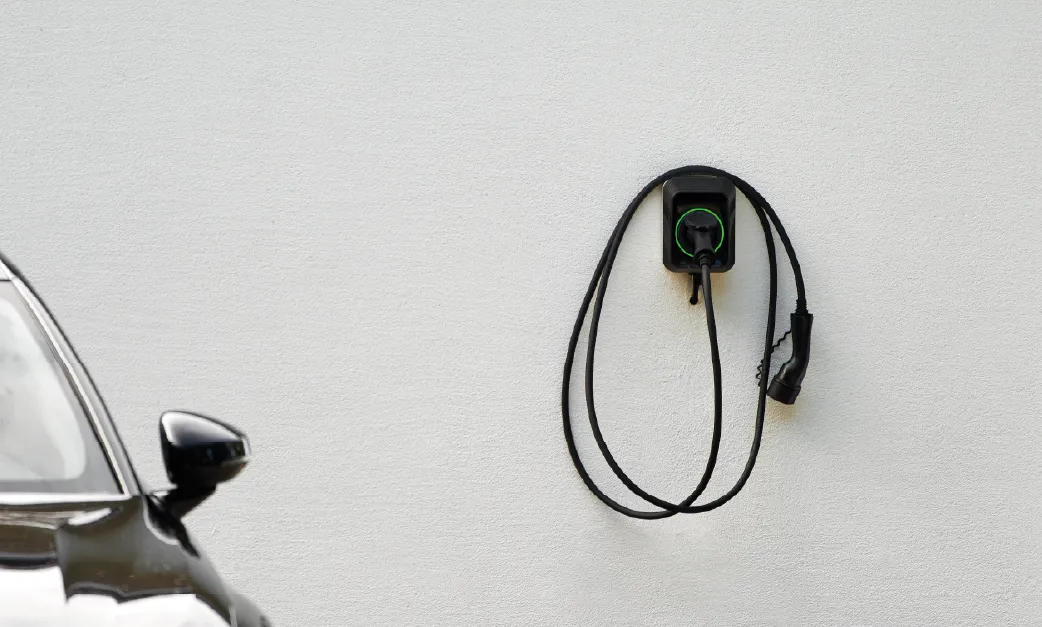

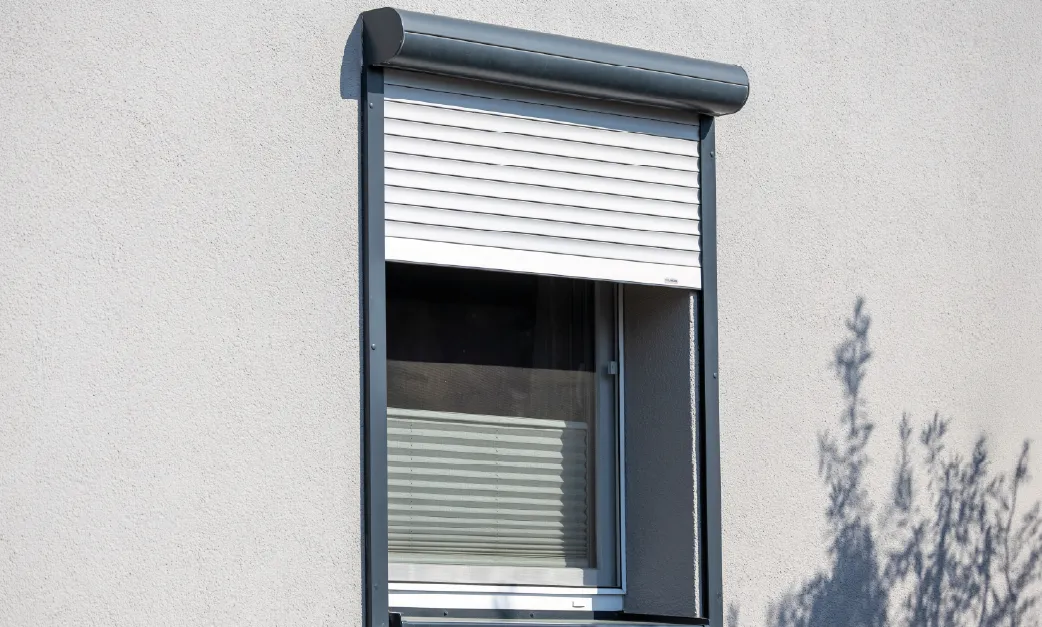

ResiTHERM® 12 wood was developed for fixing heavy loads to insulated timber façades. The system is suitable for a wide range of exterior attachment parts and transfers the loads safely into the load-bearing timber structure.

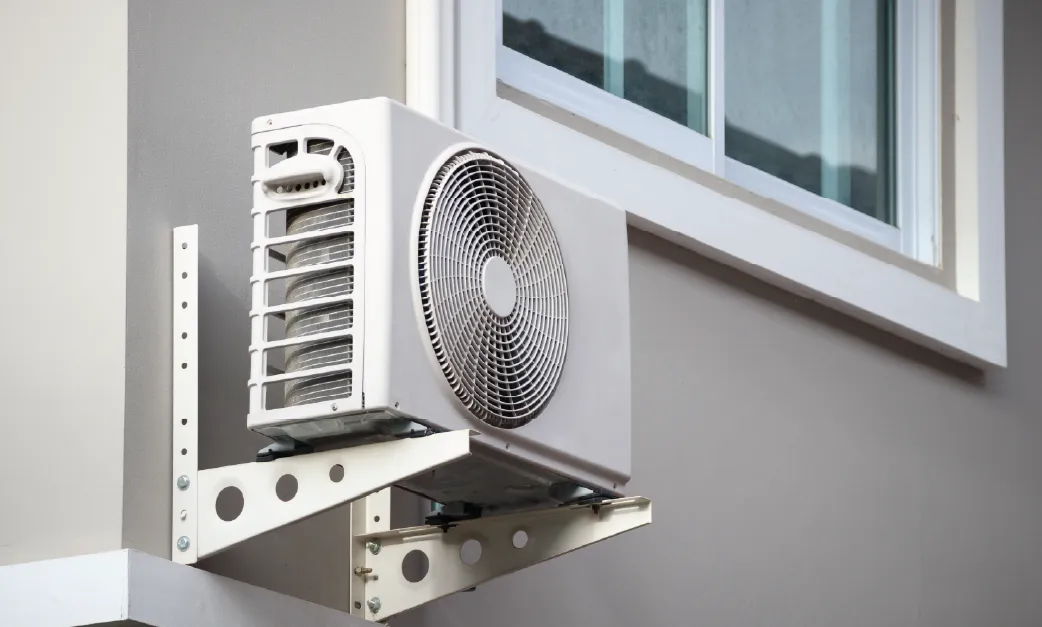

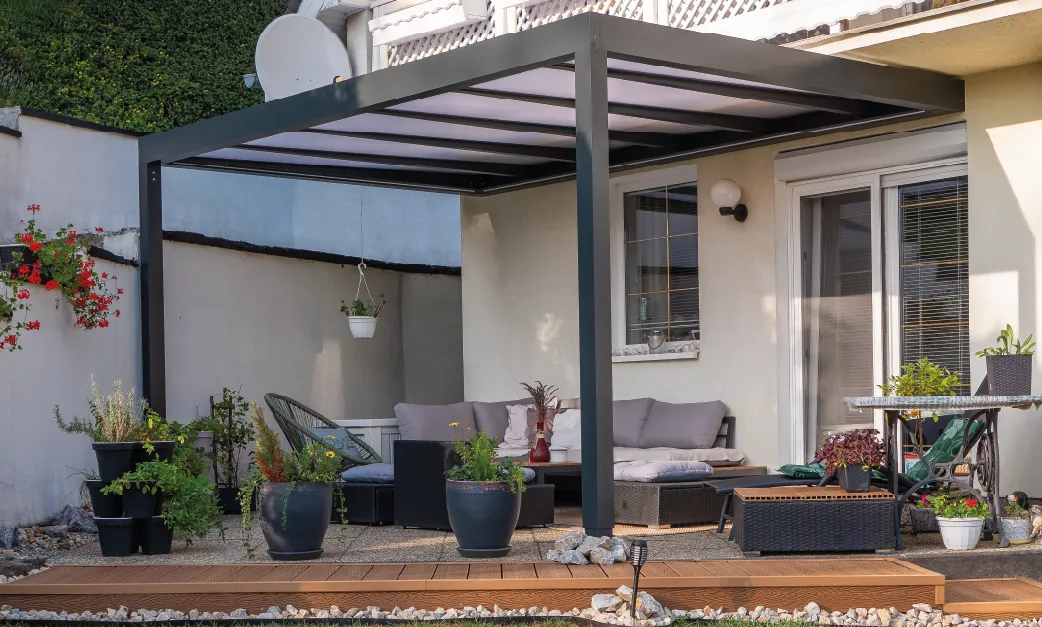

Typical applications include canopies and add-on structures, awnings, French balconies, air-conditioning units, satellite dishes, external chimneys, railings and window grilles.
The right solution for every fixing requirement

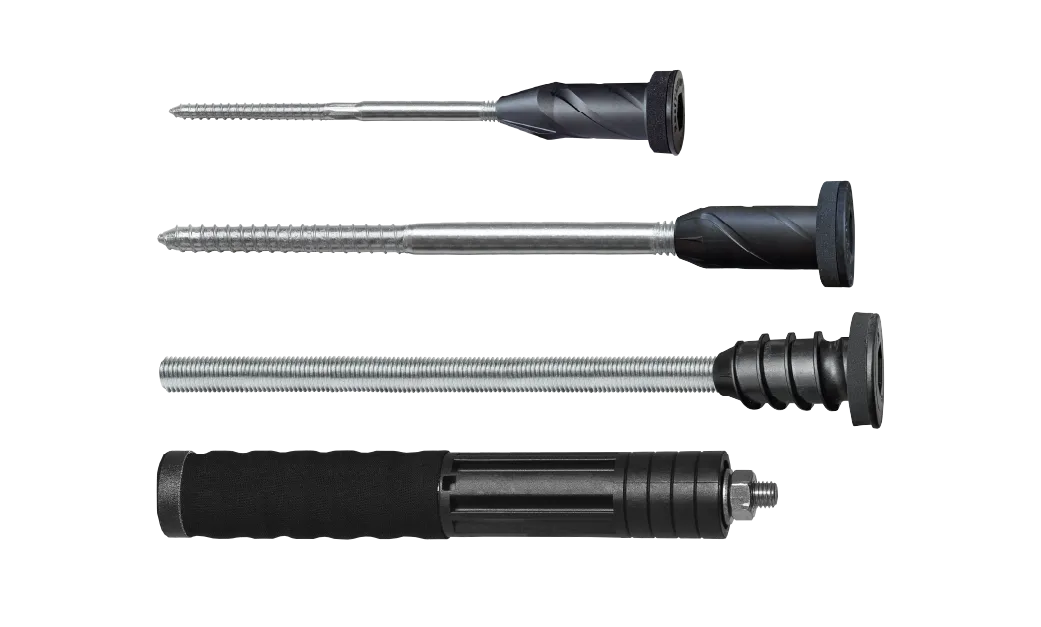

Different loads, base materials and insulation thicknesses require different fixing solutions. With the ResiTHERM® range, CELO offers various distance mounting installation systems for safe and reliable fixing to insulated façades.
ResiTHERM® 12 wood: Frequently Asked Questions
ResiTHERM® 12 wood is designed for fixing heavy loads to insulated timber façades, such as canopies, air-conditioning units, railings and external chimneys.
The stand-off installation system is designed for insulation thicknesses from 60 to 160 mm.
The system is mechanically anchored directly into the timber base material using a hanger bolt.
Je nach Anwendung stehen ein M12 Anschlussgewinde, ein als Zubehör erhältlicher M10 Anschluss sowie ein M12 Innengewinde zur Verfügung.
No, the system is designed for installation without the need for any special tools.
ResiTHERM® 12 and ResiTHERM® 12 wood are heavy-duty stand-off fixing systems for insulated façades. The main difference lies in the base material and the type of anchoring:
ResiTHERM® 12 is designed for mineral base materials such as concrete, aerated concrete, solid brick and hollow brick.
ResiTHERM® 12 wood was specifically developed for timber base materials and timber frame construction and is anchored directly into the timber using a hanger bolt.
Both systems provide a thermally separated and sealed fixing solution.
