Frame fixings in comparison

MFR SB TX

for flush finishing
in wood

MFR SB SSKS

increased contact pressure
in timber construction

MFR FB SSKS

ideal for
metal construction

plug: countersunk
screw: countersunk, TX-drive
plug: countersunk
screw: hex-head screw with integral washer
plug: flat rim
screw: hex-head screw with integral washer

Flush finishing in wood

Increased contact pressure in timber construction

Ideal for metal construction

Diameter

8, 10, 14 mm

Diameter

8, 10, 14 mm

Diameter

8, 10, 14 mm

Material / Screw coating

• galvanised
• stainless steel A4
• hot-dipped HD

Material / Screw coating

• galvanised
• stainless steel A4
• hot-dipped HD

Material / Screw coating

• galvanised
• stainless steel A4

ETA-approval / assessment

YES, apart from hot-dipped variant

ETA-approval / assessment

YES, apart from hot-dipped variant

ETA-approval / assessment

YES

Two setting depths

YES, for MFR Ø 10

Two setting depths

YES, for MFR Ø 10

Two setting depths

YES, for MFR Ø 10

MFR SB TX

for flush finishing
in wood

plug: countersunk
screw: countersunk, TX-drive

Flush finishing in wood

Diameter

8, 10, 14 mm

Material / Screw coating

• galvanised
• stainless steel A4
• hot-dipped HD

ETA-approval / assessment

YES, apart from hot-dipped variant

Two setting depths

YES, for MFR Ø 10

MFR SB SSKS

for flush finishing
in wood

plug: countersunk
screw: countersunk, TX-drive

Increased contact pressure in timber construction

Diameter

8, 10, 14 mm

Material / Screw coating

• galvanised
• stainless steel A4
• hot-dipped HD

ETA-approval / assessment

YES, apart from hot-dipped variant

Two setting depths

YES, for MFR Ø 10

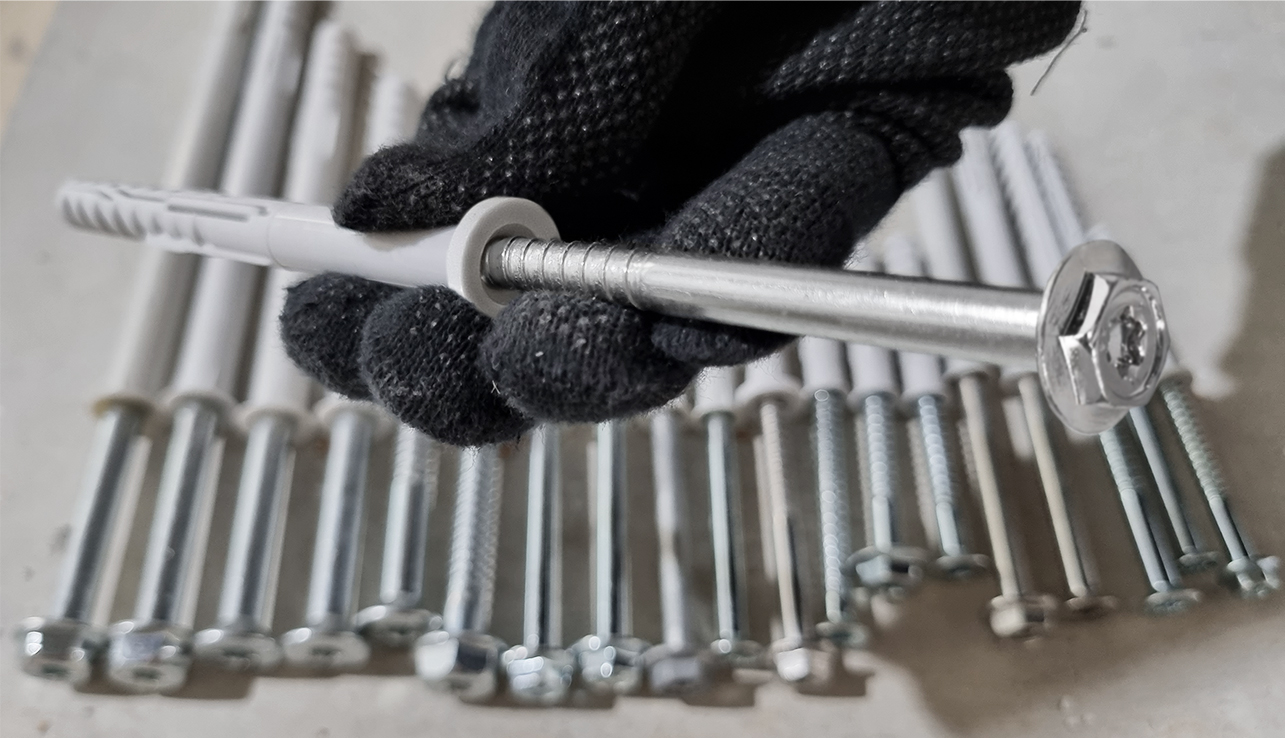

MFR FB SSKS

ideal for
metal construction

plug: flat rim screw: hex-head
screw with integral washer

Ideal for metal construction

Diameter

8, 10, 14 mm

Material / Screw coating

• galvanised
• stainless steel A4

ETA-approval / assessment

YES

Two setting depths

YES, for MFR Ø 10

Universal for highest demands

for DIYers

Frame anchors show their versatility in the private sector:
Are you wondering how best to fix wall cabinets, TV brackets, trellises, heavy shelves, sliding doors or wardrobes?

Find out here exactly which applications the practical multifunctional frame plug MFR is suitable for, how quickly it can be installed and to what extent plugs can be sustainable:

for business partners

Due to their reliability, frame anchors are used in large quantities on construction sites, e.g. for façade substructures, timber construction, interior fittings, window and door installation.

Discover here our extras for business partners such as our façade dimensioning software and references from major projects worldwide that were realised with the multifunctional frame plug MFR:

for DIYers

Frame anchors show their versatility in the private sector:
Are you wondering how best to fix wall cabinets, TV brackets, trellises, heavy shelves, sliding doors or wardrobes?

Find out here exactly which applications the practical multifunctional frame plug MFR is suitable for, how quickly it can be installed and to what extent plugs can be sustainable:

for business partners

Due to their reliability, frame anchors are used in large quantities on construction sites, e.g. for façade substructures, timber construction, interior fittings, window and door installation.

Discover here our extras for business partners such as our façade dimensioning software and references from major projects worldwide that were realised with the multifunctional frame plug MFR:

Frame fixings offer highest quality and fixing security in almost all building materials. The long expansion area of the plug ensures secure anchoring and makes the long-shaft plug universally applicable.

CELO has almost 60 years of experience in fixings technology and exports to 80 countries worldwide. With the multifunctional frame plug MFR, CELO has developed a premium plug that is 100% manufactured in Germany and whose unique geometry ensures strong hold and is perfectly matched to the supplied screw.

Find out here how the comprehensive frame anchor range differs in shape, material, approval and application flexibility and what frame anchors are used for in the private and business sectors.

How do you fix / attach / mount ...? Do you have questions about your application? Our technical advice team is on hand to answer your questions about applications, load values, suitable building materials and CELO's range of frame anchors.

Contact us here.
